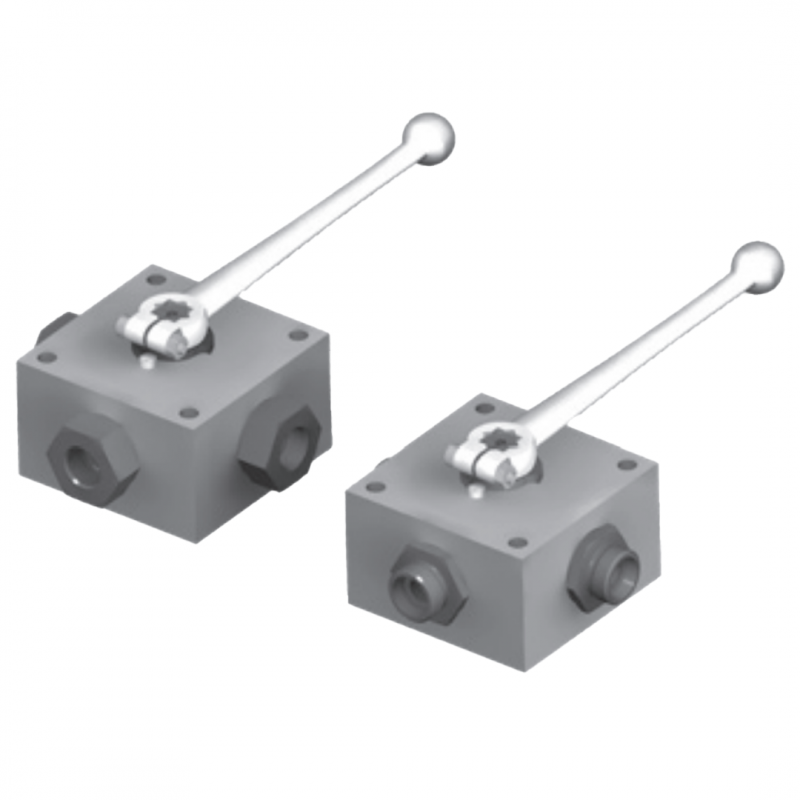

Hydac 3-Way and 4-Way Ball Valves Types KH3 and KH4
HYDAC 3-Way and 4-Way Ball Valves (Type KH3 & KH4) are precision-engineered multiway valves designed for deflecting and blocking pressure flow in demanding hydraulic systems. With pressure ratings up to PN 500 and tight, glandless sealing, these valves offer reliable performance across a wide range of industrial applications and media types.
Key Features:
- High pressure capability: up to PN 500 with pressure-supported seals for complete tightness
- Compact glandless design eliminates manual readjustment and reduces maintenance
- Available in stainless steel, with optional certifications and special versions for aggressive or gaseous media
Description
Downloads
HYDAC 3-Way and 4-Way Ball Valves Type KH3 & KH4
- Mounting position: Optional
- Ambient temperature: -10 °C to +80 °C
- Nominal pressure: Up to PN 500
- Operating fluids: Mineral oil to DIN 51524 part 1 and part 2
(other fluids on request)* - Temperature of operating fluid: -10 °C to +80 °C
- Seal kits available on request*
HYDAC 3/2 and 4/2-way ball valves are, according to DIN 2429, units which are used to deflect and block a pressure flow
HYDAC Multiway ball valves are differentiated in accordance with 2 designs:
- KH3 nominal diameter of 04 mm to 32 mm
- KH4 nominal diameter of 04mm to 32 mm
Advantages :
- Also available in stainless steel
- Complete tightness through pressure-supported seals
- No manual readjustment because glandless
- Switching limitation through stop pin and stop disk
- Other device versions, e.g. for aggressive or gaseous media, are available upon request for practically all utilisation needs
- Test certificates regarding materials testing in accordance with EN-10204 and quality testing certificates in accordance with DIN 55350 Part 18 on request
