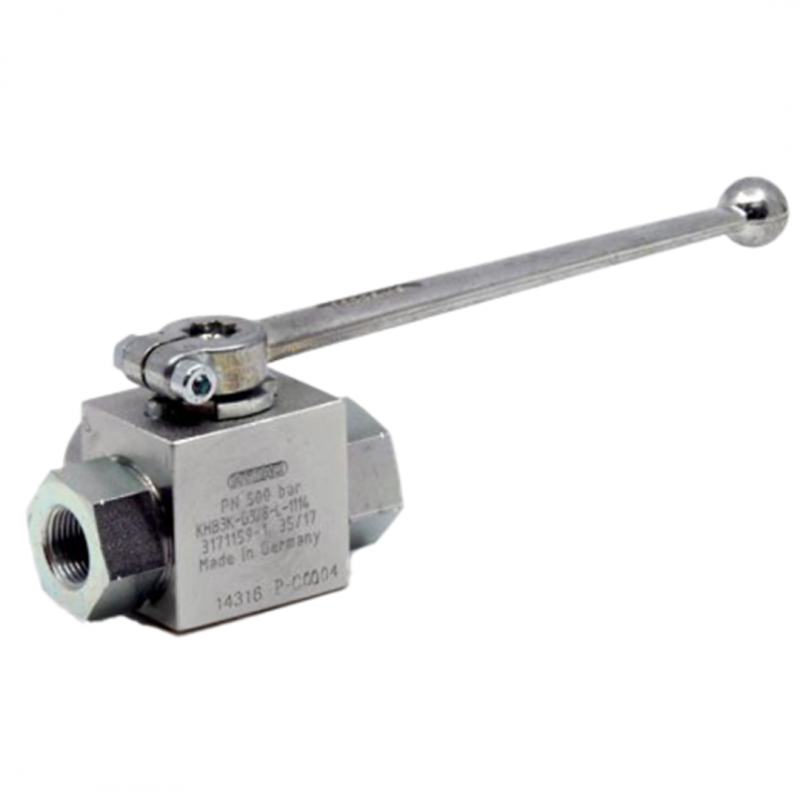

Hydac 3/2 Way Ball Valves Type KHB3K

The HYDAC 3/2-Way Ball Valve Type KHB3K is a compact, reliable valve designed for precise flow control in hydraulic systems. With pressure ratings up to PN 500 and nominal diameters up to DN 50, it features a floating ball sealing on the outlet side and a space-saving design suitable for various industrial applications.

Key Features:

  • High pressure capability up to PN 500 with robust sealing on the outlet side
  • Compact, easy-to-operate design with switching limitation via stop pin and stop disc
  • Durable surface protection with phosphate or yellow zinc plating; special versions available for aggressive or gaseous media

Description
Downloads

HYDAC 3/2 Way Ball Valves Type KHB3K

  • PN up to 500
  • DN up to 50
  • Mounting position: Optional
  • Ambient temperature: -10 °C to +80 °C
  • Nominal pressure: Up to PN 500
  • Operating fluids: Mineral oil to DIN 51524 part 1 and part 2
    (other fluids on request)
  • Temperature of operating fluid: -10 °C to +80 °C

Seal kits available on request

Advantages:

  • Switching limitation by means of stop pin and stop disc
  • Easy operation
  • Compact, space-saving design
  • Sealing principle with floating ball, sealing on the outlet side
  • Surface protection phosphate-plated or yellow zinc-plated

Other device versions, e.g. for aggressive or gaseous media, are available upon request for practically all utilisation needs
