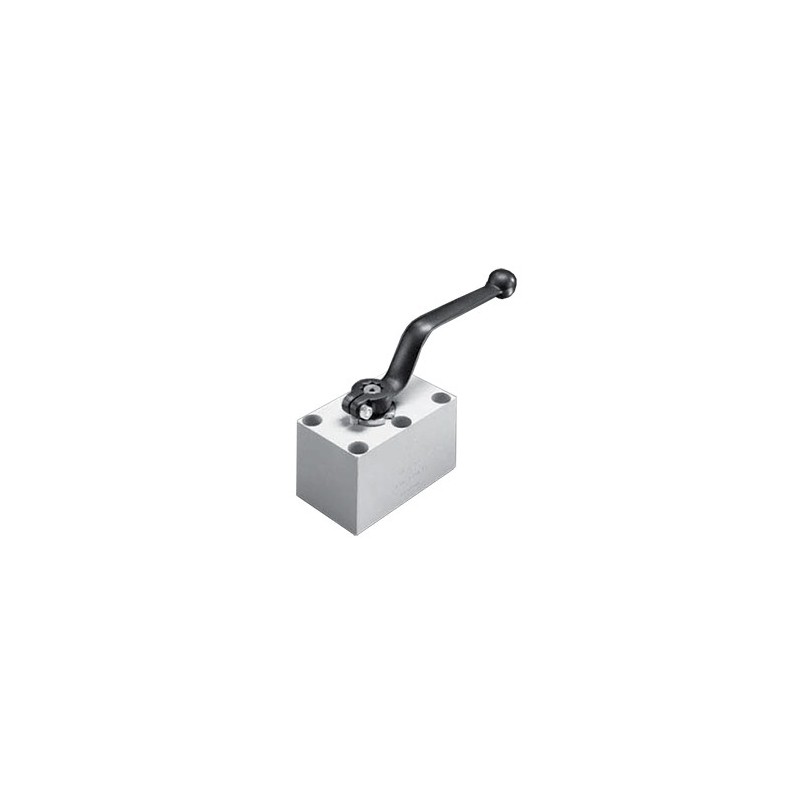

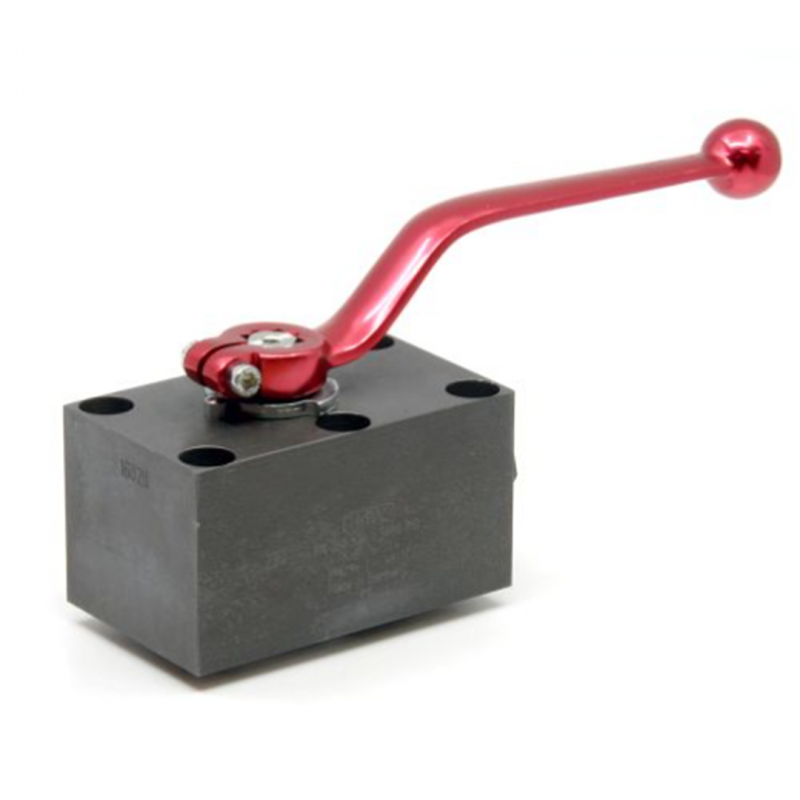

Hydac Manifold Mounted Ball Valves Type KHP and KHP3K

The HYDAC Manifold Mounted Ball Valves Type KHP and KHP3K are high-performance shut-off valves designed for hydraulic systems operating at pressures up to 500 bar. Suitable for use with mineral oil and available in nominal sizes DN 06–50, these valves feature a compact, space-saving design and robust sealing with a floating ball. Optional accessories like actuators, locks, and limit controls enhance functionality for a wide range of industrial applications.

Key Features:

  • Compact design with easy operation and reliable shut-off performance
  • Sealing principle with floating ball ensures tight outlet-side sealing
  • Surface protection options include phosphate or yellow zinc plating for durability

Description
Downloads

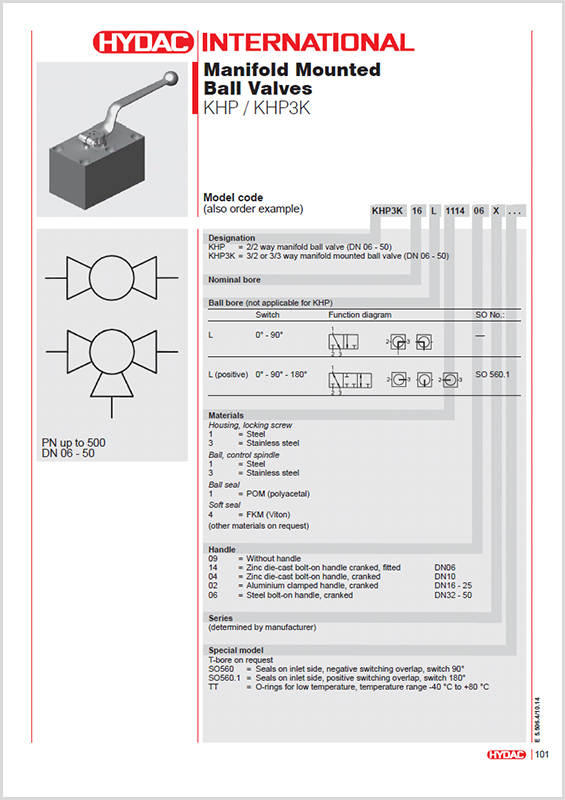

HYDAC Manifold Mounted Ball Valves Type KHP & KHP3K

  • PN up to 500 bar
  • DN 06 - 50
  • Ambient temperature: -10 °C to +80 °C
  • Operating fluids: Mineral oil to DIN 51524 Part 1 and Part 2
    (other fluids on request)
  • Temperature of operating fluid: -10 °C to +80 °C

Seal kits available on request

Accessories:

  • Actuator
  • Limit control
  • Lock

Advantages:

  • Switching limitation by means of stop pin and stop disc
  • Easy operation
  • Compact, space-saving design
  • Sealing principle with floating ball, sealing on the outlet side
  • Surface protection phosphate-plated or yellow zinc-plated

Other device versions, e.g. for aggressive or gaseous media, are available upon request for practically all utilisation needs
