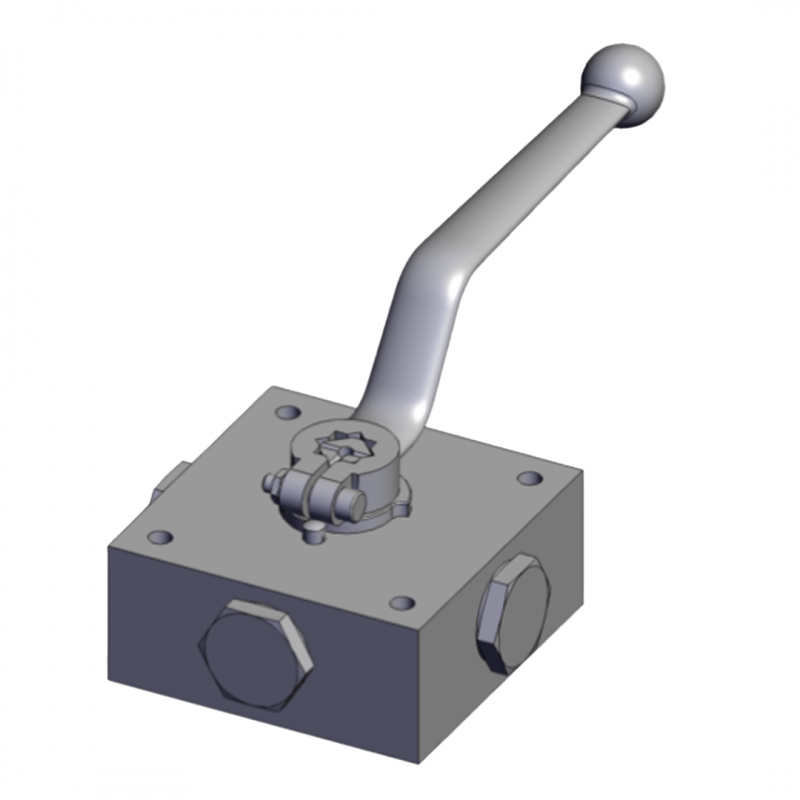

Hydac 3-Way and 4-Way Manifold Mounted Ball Valves Type KH3P and KH4P
HYDAC's KH3P and KH4P 3-way and 4-way manifold mounted ball valves are engineered for reliable directional control in hydraulic systems with pressures up to 400 bar. Designed for flexibility with optional mounting positions and compatible with mineral oil-based fluids, these valves are ideal for compact installations where multiple flow paths are required. Optional accessories like actuators, limit switches, and locks provide enhanced operational control.
Key Features:
- Robust 3-way and 4-way configurations for versatile flow management
- Optional accessories include actuator, limit switch, and lock for added functionality
- Compact manifold-mounted design supports space-saving hydraulic setups
Description
Downloads
HYDAC 3-Way and 4-Way Manifold Mounted Ball Valves Type KH3P and KH4P
- PN up to 400
- DN 06 - 20
- Mounting position: optional
- Ambient temperature: -10 °C to +80 °C
- Operating fluids: mineral oil to DIN 51524 part 1 and part 2
(other fluids on request) - Temperature of operating fluid: -10 °C to +80 °C
Seal kits available on request
Accessories:
All ball valves can be supplied with the following options:
- Actuator
- Limit switch
- Lock
