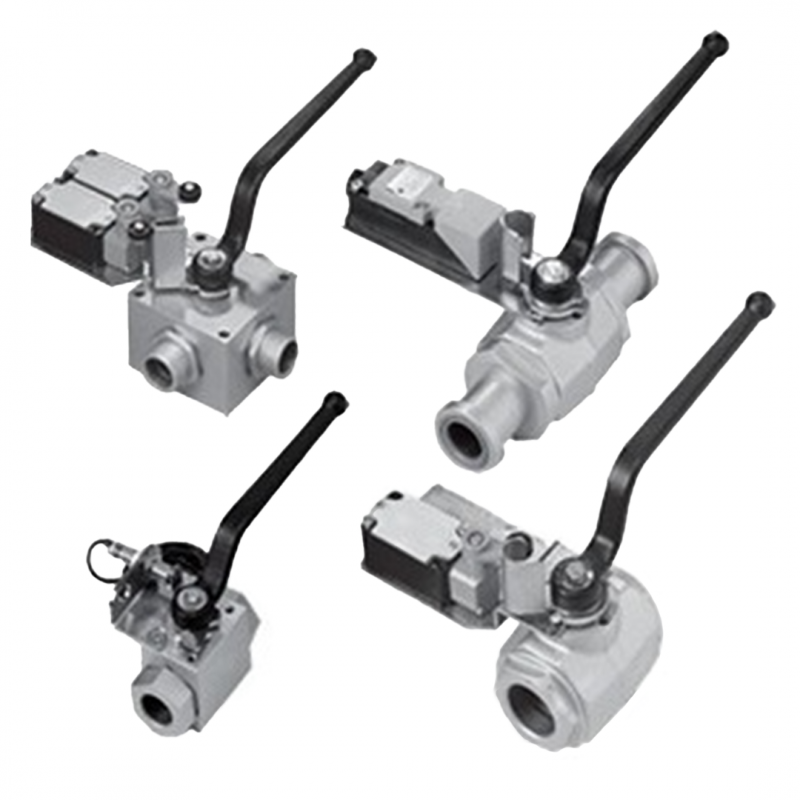

Hydac Ball Valves with Electrical Limit Controls

New

Hydac ball valves with electrical limit controls  PN up to 500

More details

Download Data Sheet Hydac Ball Valves with Electrical Limit Controls

Hydac Ball Valves with Electrical Limit Controls

  • PN up to 500
  • DN up to 50

Limit switch:

  • Position switch: To DIN EN 50041 Form A, metal enclosure with roller lever
  • Switch equipment: 1 N/C contact and 1 N/O contact
  • Protection class: IP 67
  • Insulation group: 500 V AC
  • Continuous current: 10 A
  • Nominal voltage: 300 V AC
  • Mechanical service life: 30 x 106 switching cycles
  • Switching frequency: 6 x 103 switching cycles per hour
  • Permitted ambient temperature: -40 °C to +85 °C

Inductive proximity switch:

  • Type of construction: Cylindrical form M12 to DIN EN 60947
  • Rated switching distance: 4 mm
  • Output: Normally open contact / PNP logic
  • Protection type: IP 67
  • Operating voltage: 10 - 30 V DC (including residual ripple)
  • Nominal voltage: 12 - 24 V DC
  • Switching current: ≤ 200 mA
  • Current consumption without load: < 11 mA
  • Switching hysteresis: 10%
  • Switching frequency: 800 Hz
  • Permitted ambient temperature: -25 °C to +70 °C
  • Function display: LED
  • Type of connection: Cable 3 conductor, 5 m long

Retrofit kit for electrical switching position monitoring can be supplied on request
