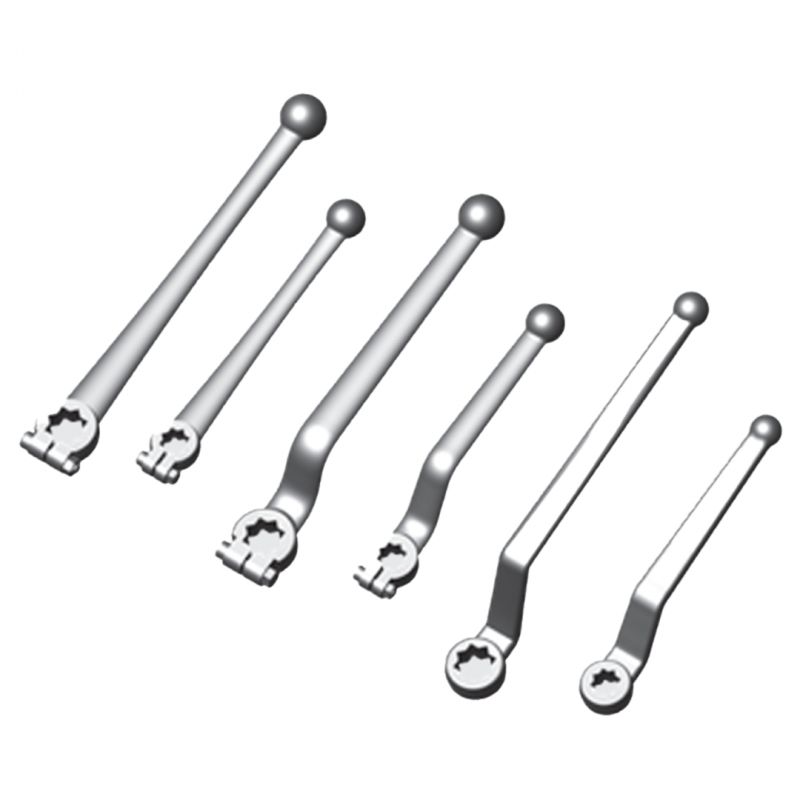

Hydac Handles SW 06-22

HYDAC SW 06–22 Handles are designed for precise control of shut-off and ball valves. Available in clamped or bolt-on versions, both handle types can be positioned in 45° increments for flexible installation. Fixing bolts for bolt-on handles must be ordered separately.

Key Features:

  • Two mounting options: clamped or bolt-on for versatile applications
  • 45° displacement allows for adjustable handle positioning
  • Designed for reliable operation of HYDAC ball and shut-off valves
Print page

Description
Downloads
Hydac Handles SW 06-22

HYDAC Handles SW 06-22

Handles are designed to switch shut-off valves /ball valves

Clamped handle:

  • The handle is pushed onto the square end of the ball valve spindle and clamped to the square by means of a screw through the end of the handle

Bolt-on handle:

  • The handle is screwed to the ball valve control spindle by means of a fixing bolt from above
  • Both types handle can be displaced by 45°

The fixing bolts for the bolt-on handles must be ordered separately
