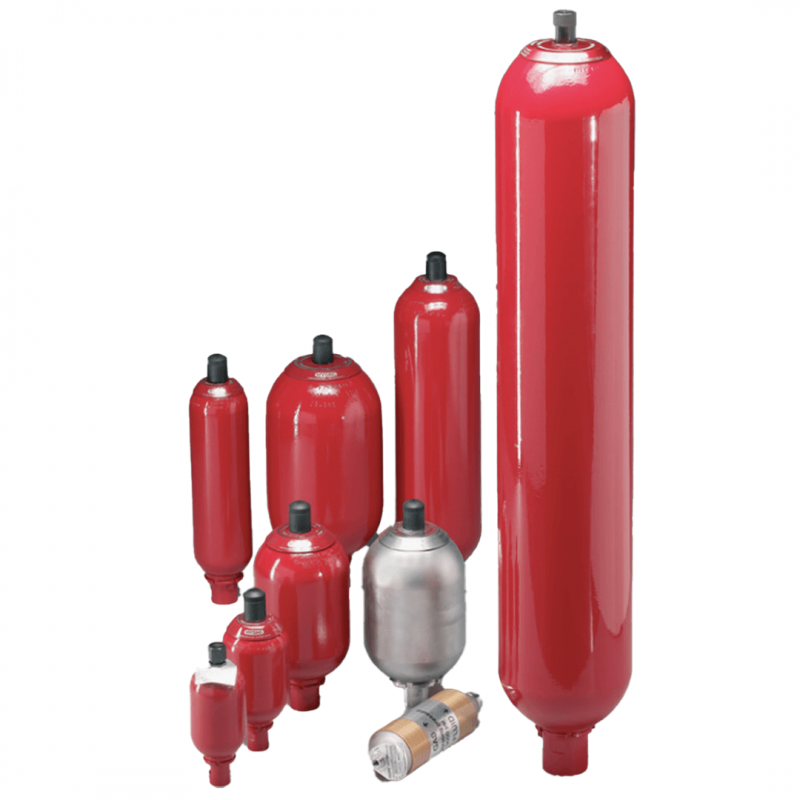

Hydac Standard Hydraulic Bladder Accumulator SB
Standard hydraulic bladder accumulator SB
- Nominal Volume : 0.5 to 200 litre
- Pressure Range : 330 / 400 / 500 bar
- Standard Temperature Range : 10°C to +80°C
The HYDAC standard bladder accumulators, models SB330/400/500/550, consist of a pressure vessel, a flexible bladder with a gas valve, and a hydraulic connection with a check valve. The pressure vessels are seamless and manufactured from high-tensile steel.
Description
Downloads
Hydac Standard Hydraulic Bladder Accumulator SB
- Nominal Volume, 0.5 to 200 litre
- Pressure Range, 330 / 400 / 500 bar
- Standard Temperature Range -10°C to +80°C
Corrosion Protection:
For operation with chemically aggressive media, the accumulator shell can be supplied with corrosion protection, such as chemical nickel-plating. If this is insufficient, then stainless steel accumulators must be used
Designs:
- Standard Bladder Accumulator SB330/400/500/550:
HYDAC standard bladder accumulators consist of the pressure vessel, the flexible bladder with gas valve and the hydraulic connection with check valve. The seamless pressure vessel is manufactured from high tensile steel
- Bladder accumulator SB 330N:
The flow optimised design of the standard oil valve enables the maximum possible operating fluid flow rate to increase to 25 l/s on this accumulator type
- High flow bladder accumulator SB330H:
HYDAC high flow bladder accumulators, type SB330H, are high performance accumulators with a flow rate of up to 30 l/s. The fluid connection is enlarged to allow higher flow rates
