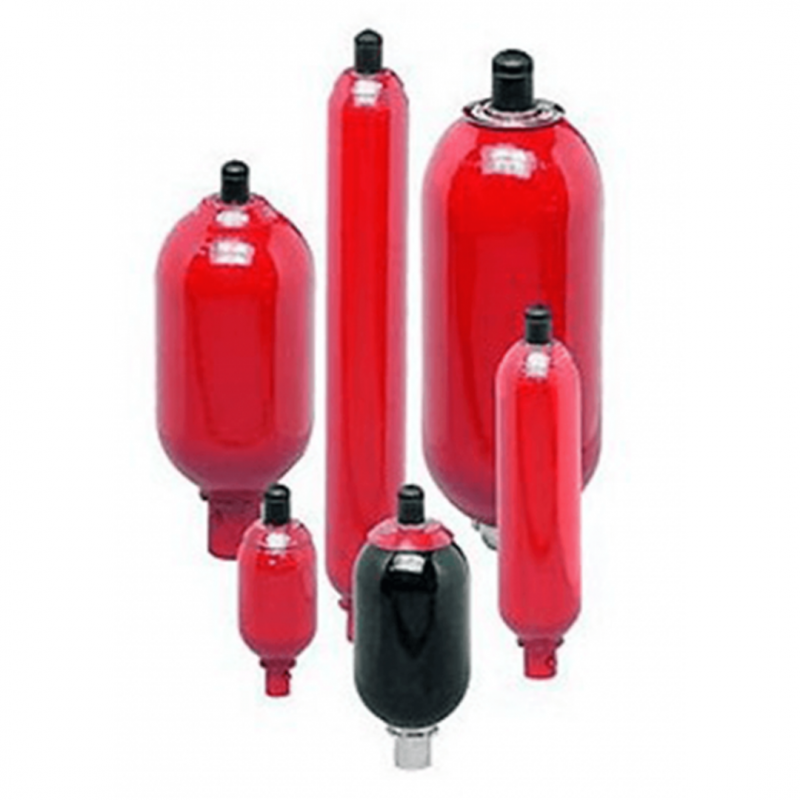

Hydac High Pressure Hydraulic Bladder Accumulator SB
High pressure hydraulic bladder accumulator SB
- Nominal Volume : 1 to 54 litre
- Pressure Range: 690 bar
- Standard Temperature Range : 10°C to +80°C
Engineered for demanding hydraulic systems, the HYDAC SB Series offers reliable energy storage with a nominal volume of 1 to 54 litres and pressure capacity up to 690 bar. Built with a high-tensile chrome molybdenum steel shell, it features corrosion protection options for harsh or offshore environments.
Hydac High Pressure Hydraulic Bladder Accumulator SB
- Nominal Volume, 1 to 54 litre
- Pressure Range, 690 bar
- Standard Temperature Range -10°C to +80°C
Design:
The high pressure bladder accumulator consists of the pressure vessel, the flexible bladder with gas valve and the hydraulic connection with check valve. The seamless pressure vessel is manufactured from high tensile chrome molybdenum steel
HYDAC bladder accumulators can be used in a wide variety of applications and are also available in different pressure ranges
Corrosion Protection:
For operation with chemically aggressive media, the accumulator shell can be chemically nickel-plated internally or supplied with a special plastic coating. For external corrosion protection the accumulator can be supplied with an epoxy resin finish specially for offshore applications
