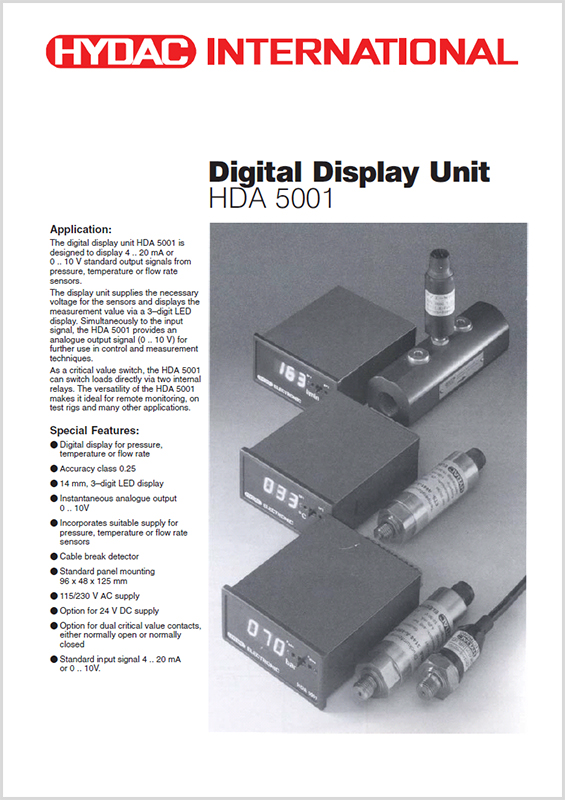

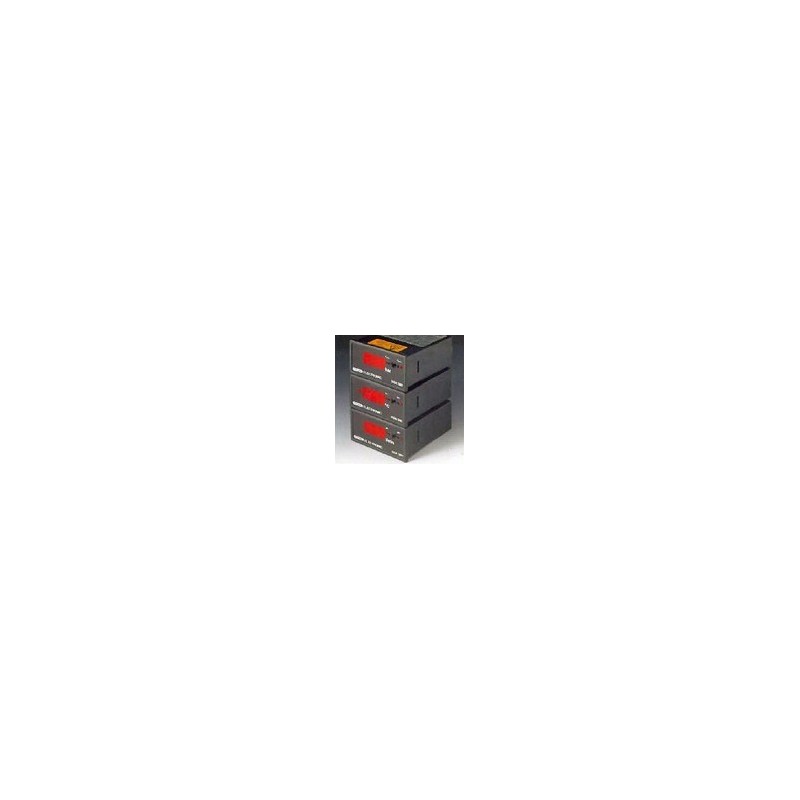

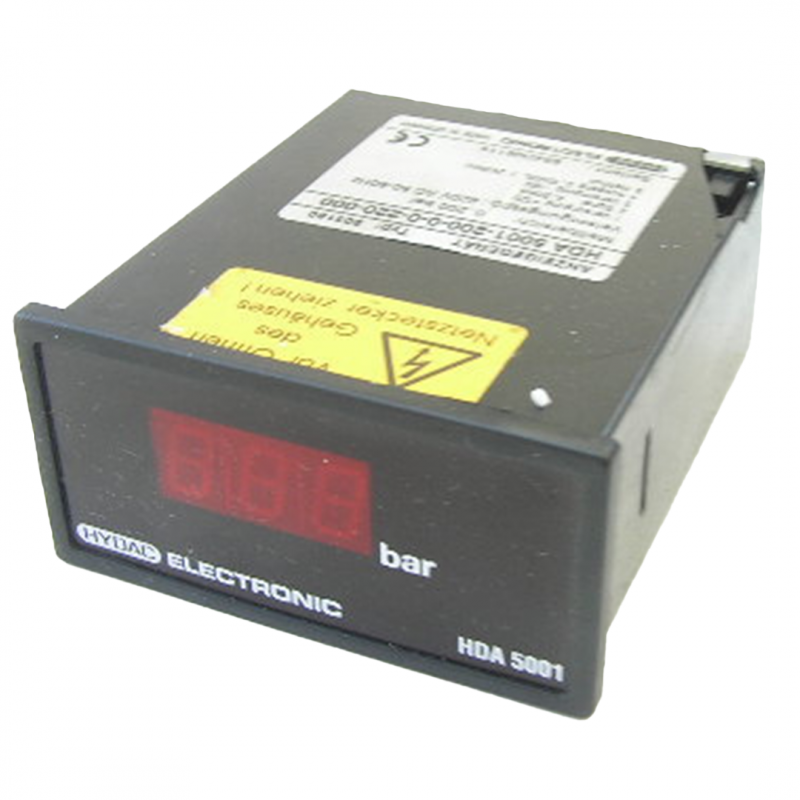

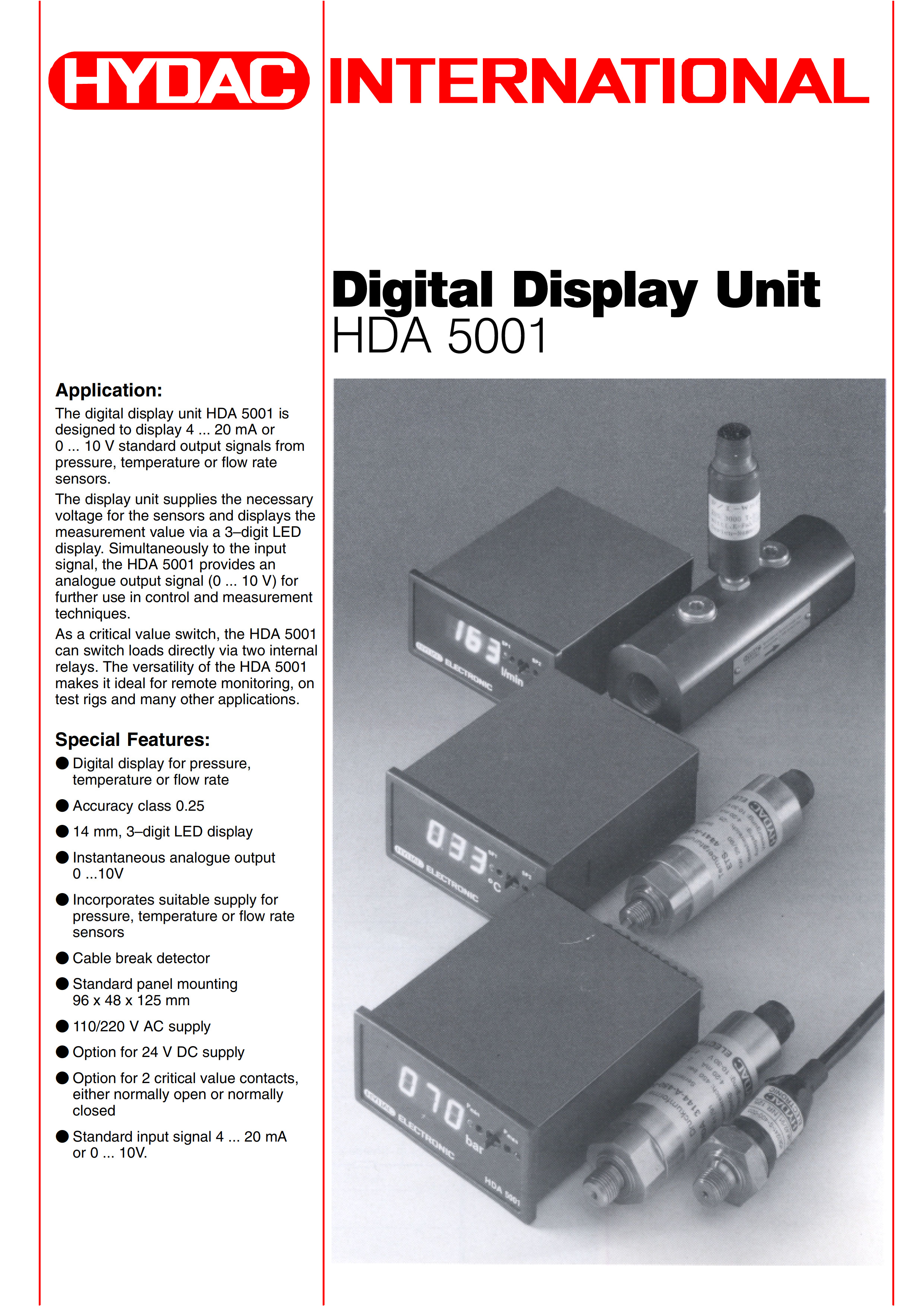

Hydac Digital Display Unit HDA 5001
The HYDAC HDA 5001 is a reliable, high-accuracy digital display unit designed for real-time monitoring of pressure, temperature, or flow rate. Engineered for simplicity and performance, this unit is ideal for industrial applications requiring precise measurement, instantaneous signal transmission, and critical value switching.
Key Features:
- Real-time display of sensor values (pressure, temperature, or flow rate)
- Provides necessary power for connected sensors, simplifying system wiring
- Ensures quick fault identification for uninterrupted operation
HYDAC Digital Display Unit HDA 5001
- Accuracy class 0.25
- 14 mm, 3–digit LED display
Features:
- Digital display for pressure, temperature or flow rate
- Instantaneous analogue output 0 .. 10V
- Incorporates suitable supply for pressure, temperature or flow rate sensors
- Cable break detector
- Standard panel mounting 96 x 48 x 125 mm
- 115 / 230 V AC supply
- Option for 24 V DC supply
- Option for dual critical value contacts, either normally open or normally closed
- Standard input signal 4 .. 20 mA or 0 .. 10V
General Function:
The digital display unit HDA 5001 isdesigned to display 4 .. 20 mA or 0 .. 10 V standard output signals from pressure, temperature or flow rate sensors. The display unit supplies the necessary voltage for the sensors and displays the measurement value via a 3-digit LED display. Simultaneously to the input signal, the HDA 5001 provides ananalogue output signal (0 .. 10 V) for further use in control and measurement techniques. As a critical value switch, the HDA 5001 can switch loads directly via two internal relays. The versatility of the HDA 5001 makes it ideal for remote monitoring, on test rigs and many other applications.
