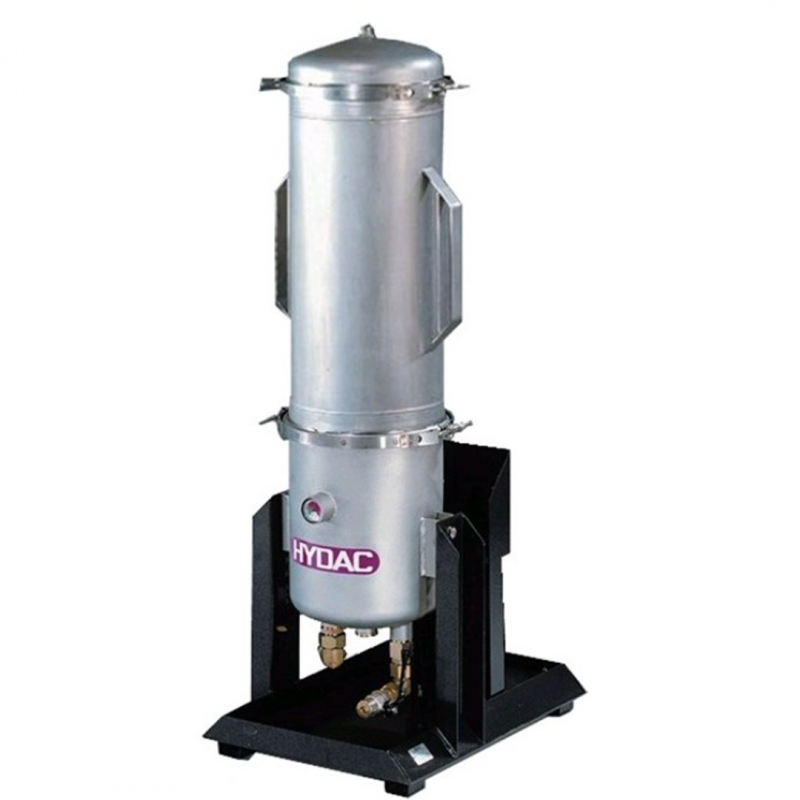

Hydac Offline Filter OLF 15/ 30/ 45/ 60
The OLF 15/30/45/60 series of filtration units are robust off-line filters for stationary applications in hydraulic and lubrication systems with a large fluid volume.
- Content of the housing: max 78 l
- Operating pressure: max. 6 bar
| Part Number | Material Number | Pump Type | Rated flow | Price | Add to Parts List |
|---|---|---|---|---|---|
| OLF-45/45-G-N-Z-C/-FA2 | Gear pump | 45 l/min | On Enquiry |
Hydac Offline Filter OLF 15/ 30/ 45/ 60
- Content of the housing: max 78 l
- Operating pressure: max. 6 bar
Advantages:
- Improved service life of components and system filter
- Greater machine availability
- Longer oil change intervals
- Very easy maintenance
- Elements have a high contamination retention capacity
- Environmentally safe disposal of elements (incinerable)
- Optional sensors available to monitor the contamination in the oil
Applications:
- Machine tools
- Plastic injection machines
General Function:
The OLF 15/30/45/60 series of filtration units are robust off-line filters for stationary applications in hydraulic and lubrication systems with a large fluid volume. The Dimicron elements used in these filters are noted for their particularly high contamination retention capacity and an environmentally safe method of disposal (incinerable).
The optional monitoring equipment ContaminationSensor CS1000 is used to monitor the solid particle contamination in the oil. The AquaSensor AS1000 measures the water saturation (in %) as well as the temperature of the fluid.
