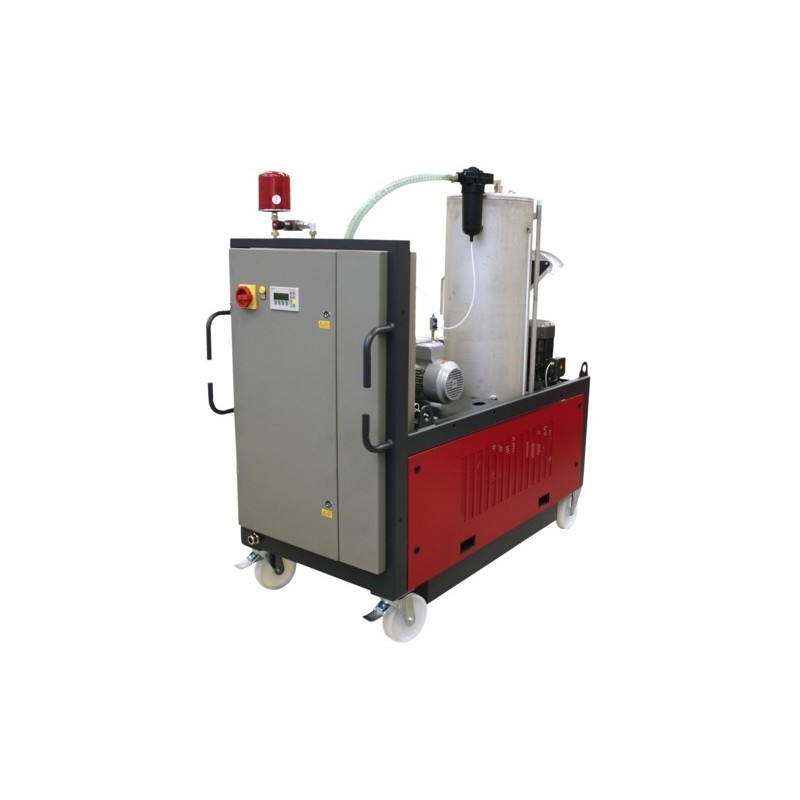

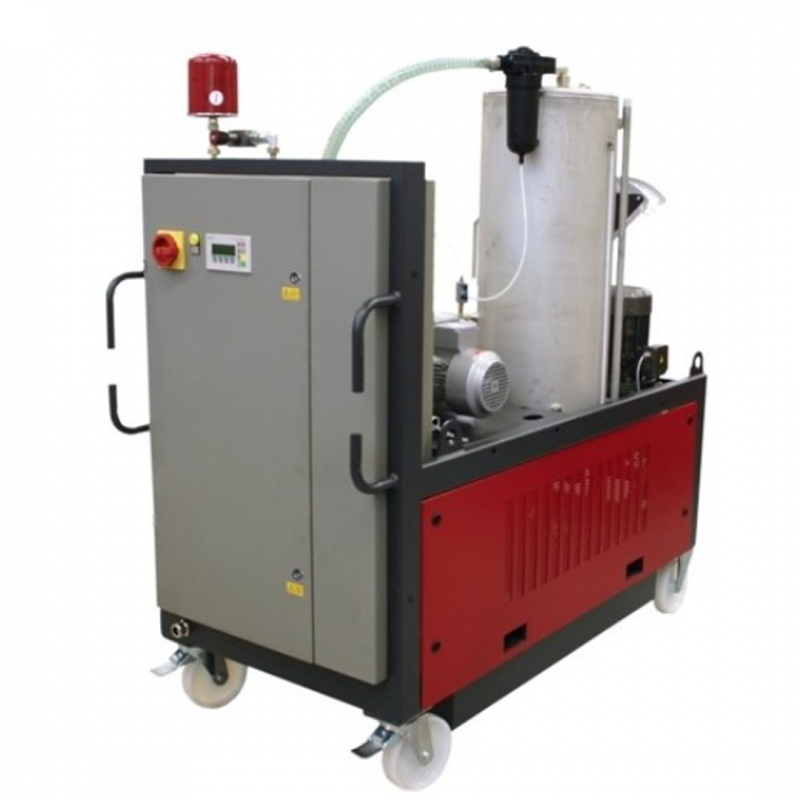

Hydac FluidAqua Mobil FAM 25/ 45/ 60/ 75/ 95 Series
Hydac De-watering and filtration unit Fluid Aqua Mobile
- Flow rates (at 50 Hz) up to approximately 95 l/min
- Operating pressure 0 … 4.5 bar
Hydac FluidAqua Mobil FAM 25/ 45/ 60/ 75/ 95 Series
- Flow rates (at 50 Hz) up to approximately 95 l/min
- Operating pressure 0 … 4.5 bar
The lowest or residual water contents, gas contents and particulate contamination of the operating fluids lead to:
- Longer oil replacement intervals
- Improved component service life duration
- Higher machine availability
- Reduction of Life Cycle Cost (LCC)
General Function:
The FluidAqua Mobil FAM 25/45/60/75/95 series operates on the principle of vacuum dewatering to eliminate free and dissolved water as well as free and dissolved gases from hydraulic and lubrication fluids. Since it uses HYDAC offline filter element technology with its high contamination retention capacity and filtration efficiency, the unit is extremely economical. All units have an AquaSensor AS1000 for continuous monitoring of the water content and for controlling the unit. A particle sensor CS1000 can also be supplied as an option for simultaneous monitoring of solid particle contamination.
For product pricing, delivery, technical support or associated services CONTACT HYQUIP
You can also call our sales office +44 (0)1204 699959
