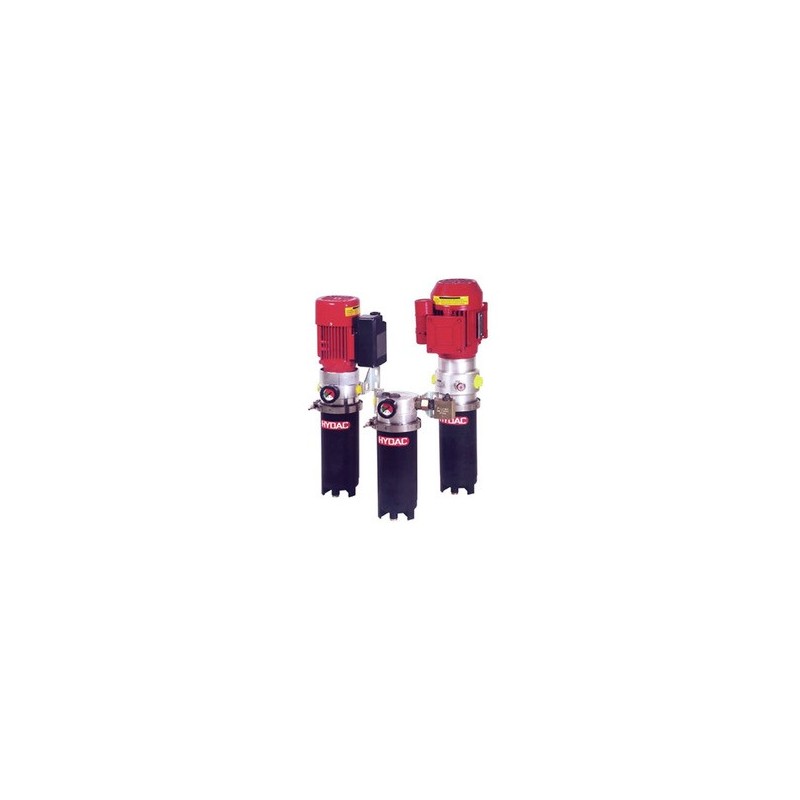

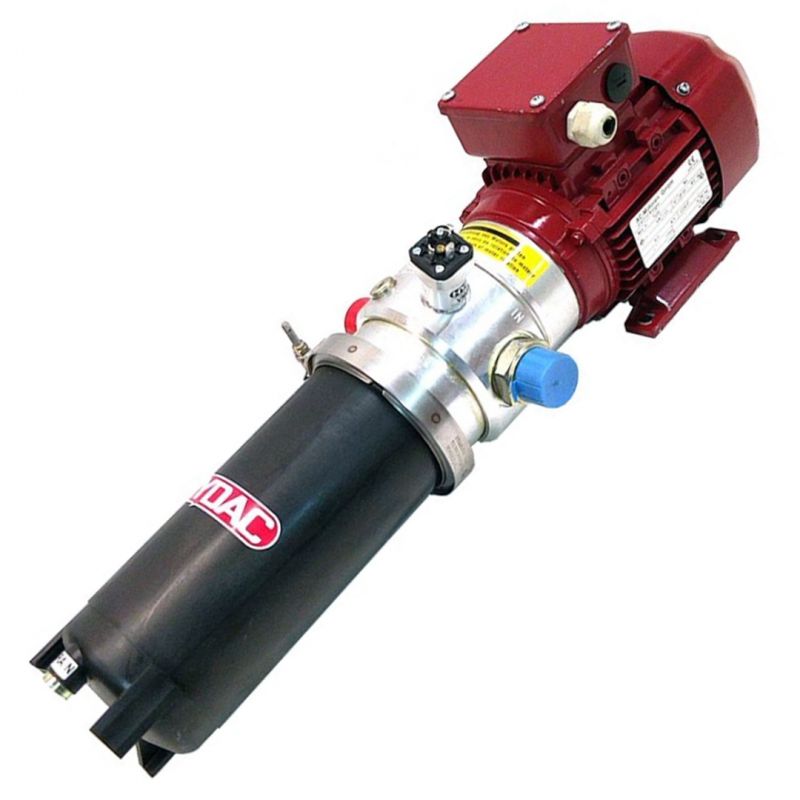

Hydac OffLine Filter OLF 5
The HYDAC OffLine Filter OLF 5 is a compact, stationary bypass filtration unit designed for fine filtration of hydraulic and lubrication oils, with flow rates up to 15 l/min. Ideal for applications like machine tools, mobile hydraulics, and wind power, it offers high contamination retention, extended oil and component life, and eco-friendly element disposal.
Key Features:
Description
Downloads
HYDAC OffLine Filter OLF 5
- Flow rate Hydraulic Line: max. 15 l/min
Flow rate Lubrication Line: max. 4 l/min - Operating pressure Hydraulic Line: max. 4.5 bar
Operating pressure Lubrication Line: max. 3.5 bar
Features:
- particularly high contamination absorption capability
- Environment-friendly disposal (ashability) and
- water retention (optional: Aquamicron)
- Improvement of component and filter service life
- Greater machine availability
- Longer oil change intervals
- Lower space requirements through compact construction
- High service-friendliness
- High contamination retention capacity of the elements
- Environment-friendly element disposal through ashability
Applications:
- Machine tools
- Plastic injection moulding machines
- Mobile hydraulics
- Industrial hydraulics
- Wind power
General Function:
The compact and stationary fluid conditioning units of the OLF 5 are used for the fine filtration of hydraulic and lubrication oils in bypass flow. Versions are also available with motor-pump unit. The Toploader version is distinguished by the "upward" dismantling of elements (tool-free element replacement).
