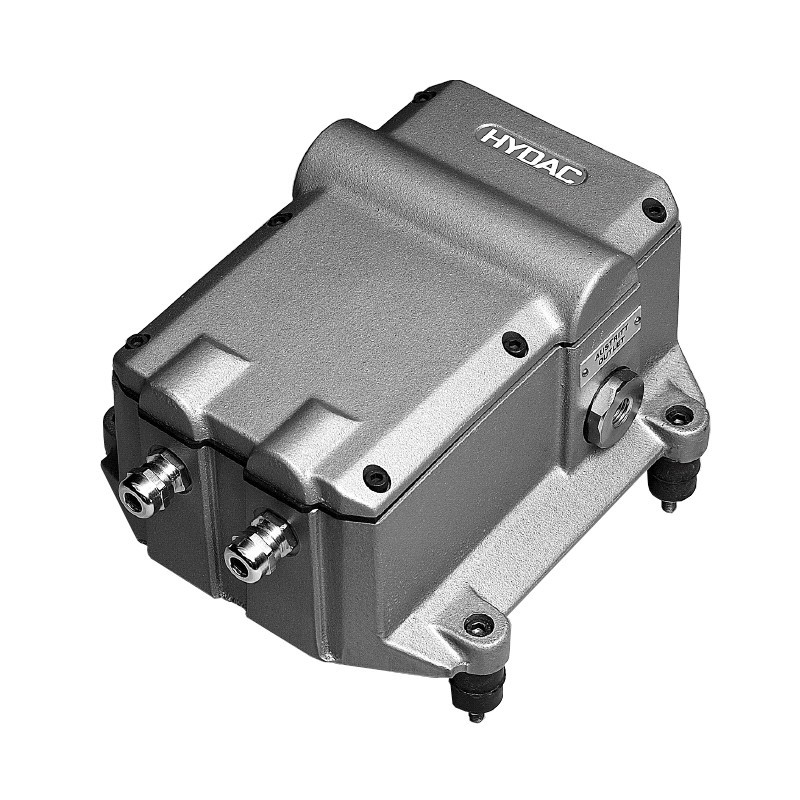

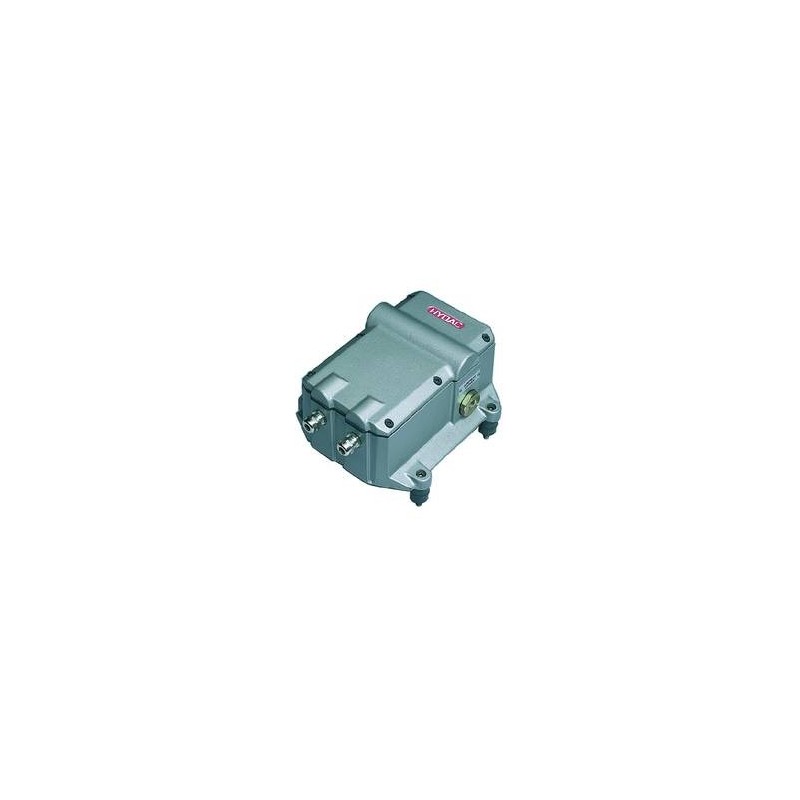

Hydac Contamination Sensor CS 2000 Series
The HYDAC Contamination Sensor CS 2000 Series is a high-precision stationary sensor designed for continuous monitoring of particle contamination in hydraulic and lubrication systems. With a fluid temperature range of 0 to +70 °C and flow rates from 10 to 200 ml/min, it offers advanced electronic and hydraulic compensation for pressure and viscosity fluctuations, making it ideal for critical applications requiring reliable, real-time contamination trend analysis.
Key Features:
- Fluid temperature range: 0 ... +70 °C, +32 ... +185°F
- Measurement flow rate: 10 ... 200 ml/min
- Supply voltage: 24 V DC, ± 25%
HYDAC Contamination Sensor CS 2000 Series
- Fluid temperature range: 0 ... +70 °C, +32 ... +185°F
- Measurement flow rate: 10 ... 200 ml/min
- Supply voltage: 24 V DC, ± 25%
Applications:
- Industrial hydraulic and lubrication systems
- Mobile hydraulics
Advantages:
- Combined hydraulic and electronic compensation for fluctuations in pressure and viscosity
- Continuous self-diagnostics
- Analogue output (4 ... 20mA) or digital output (RS 485/RS 232/ Ethernet)
- PLC output
- Relay outputs (operation, warning, alarm)
- RS 232 interface for ISO Code indication
General Function:
The ContaminationSensor CS 2000 series is a stationary sensor for permanent monitoring of particle contamination in fluids. It has been developed for applications in test rigs, lubrication systems and critical hydraulic systems for which dynamic trend measurement of the contamination is required. The ContaminationSensor CS 2000 series benefits from the field-tested sensor technology used in the FCU 2000 series. It has been developed for use in conjunction with pressure connections up to 40 bar (higher pressures possible with external pressure relief valve).
