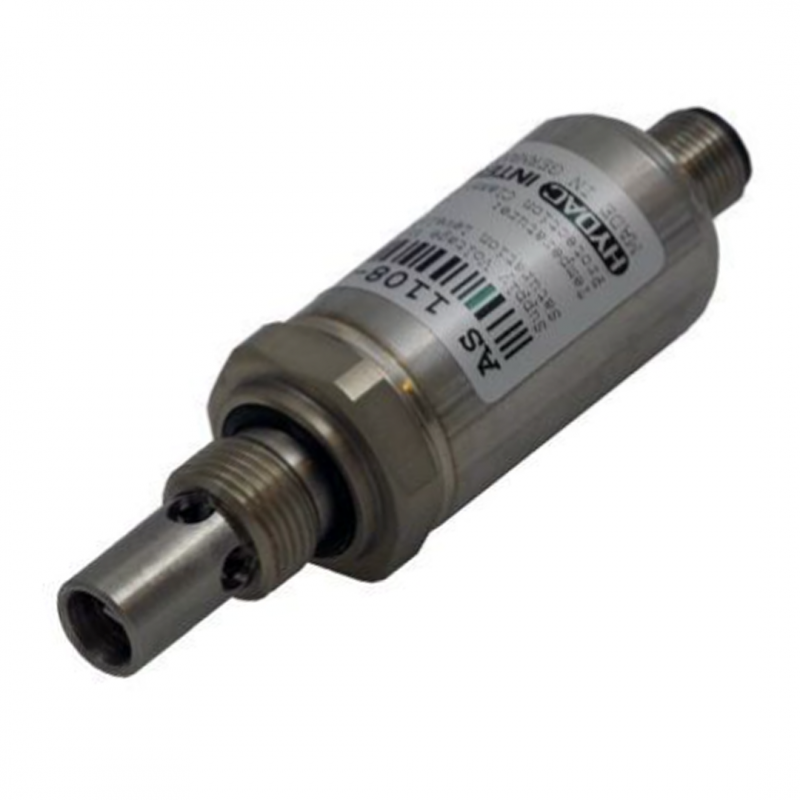

Hydac Aqua Sensor AS 1000 Series

Hydac Aqua Sensor AS 1000 Series

• Saturation level 0 ... 100 %
• Temperature -25 .. 100 °C
• Operating pressure -0.5 .. 50 bar
• Burst pressure ≤ 630 bar

Features:

• Reliable due to its compact and robust design
• Cost-effective sensor, also for use in OEM applications
• Not necessary to calibrate to different types of oil
• Pressure-resistant also during pulsations
• Wide fluid temperature range
• Individual configuration
• Early detection of water problems thereby preventing breakdowns and unnecessary interruption to operations

General Function:

The AquaSensor AS 1000 is the culmination of continued development of the successful AS 2000 series for online detection of water in oils, in particular as an OEM sensor for fluid conditioning monitoring. It measures the degree of saturation and the temperature of the fluid.

In the analogue output version, the AS 1000 transmits the values for the degree of saturation and the temperature as a 4 .. 20 mA signal.
In the version with 2 switch outputs, the AS 1000 can be configured individually using the HYDAC service instrument HMG 3010, the Condition Monitoring Unit CMU 1000 and the interface module CSI-B-2.

The following parameters can be adjusted:

• Saturation level / temperature
• Switch points
• Switch mode of the switch outputs
• Switching direction
• Switch delay times

The AS 1000 therefore enables hydraulic and lubrication oils to be monitored accurately, continuously and online.
