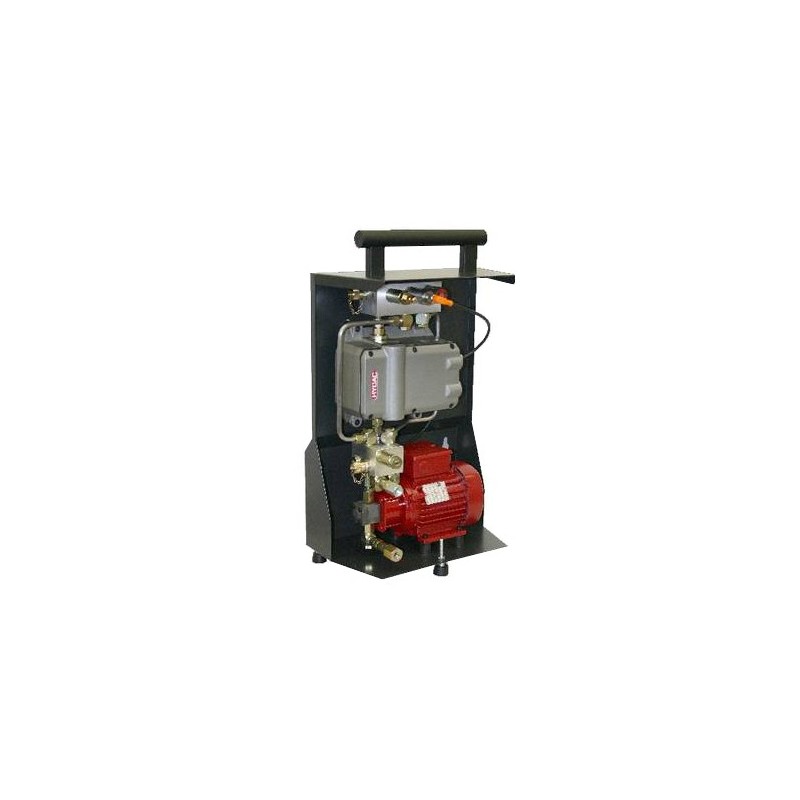

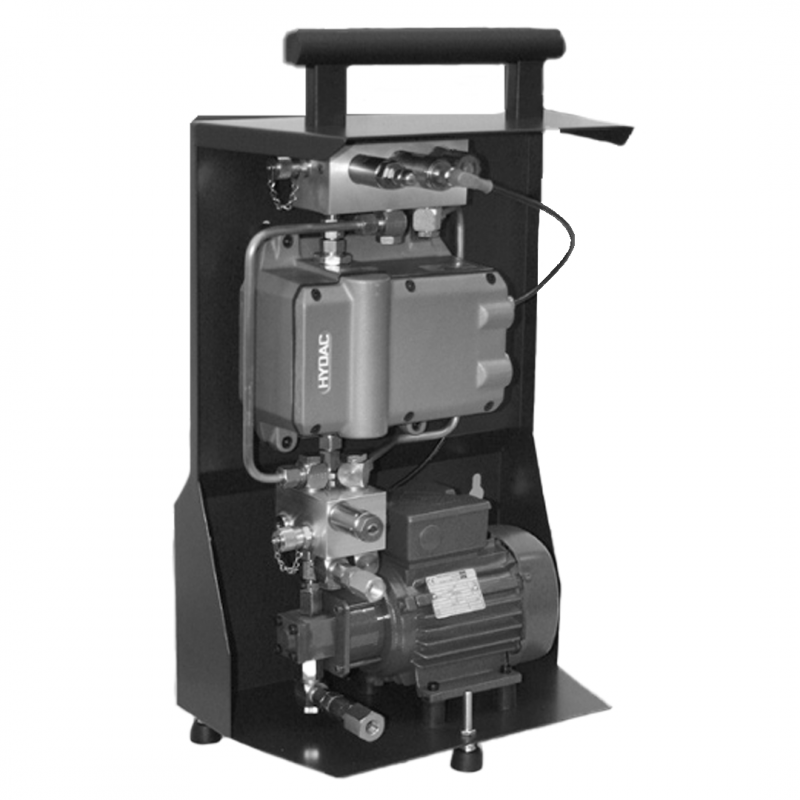

Hydac Contamination Sensor Module CSM 2000 Series
The HYDAC CSM 2000 Series is a compact online condition monitoring system for real-time detection of solid particle contamination in hydraulic and lubrication fluids. With integrated air bubble suppression and optional AquaSensor, it ensures accurate, reliable monitoring for proactive maintenance and system diagnostics.
Key Features:
- Total flow rate (standard pump) ≈ 100 ml/min
- Total flow rate (pump, primary pressure stability ) ≈ 180 ml/min
- Permitted pressure at output 5 bar max
HYDAC Contamination Sensor Module CSM 2000 Series
- Total flow rate (standard pump) ≈ 100 ml/min
- Total flow rate (pump, primary pressure stability ) ≈ 180 ml/min
- Permitted pressure at output 5 bar max
- Permissible viscosity range for measurement operation: 10 ... 1000 mm²/sec
Features:
- Inexpensive complete solution
- Optional with AquaSensor AS 1000
- Versatile data interfaces provide, among other things, communications via WLAN, Intranet or Internet
- Online monitoring of oil cleanliness with alarm function for:
- Entry and increase of contamination
- Increase of contamination with incipient component wear
- Filtration problems - Documentation of cleanliness at testing facilities
- Documentation of changes in the oil cleanliness resulting from incorrect servicing
Applications:
- Lubrication oil system in paper, steel and energy sectors
- For preventive, pro-active maintenance
- Monitoring of component cleanliness on test rigs
- Monitoring of oil cleanliness in reservoirs
General Function:
The ContaminationSensor Modul CSM 2000 is an Online Condition Monitoring System for recording solid particle contamination in hydraulic and lubrication fluids with high proportions of air bubbles. Air bubbles are brought into solution by means of an integrated air bubble suppression and are thus not detected as particles. Furthermore, it is the ideal complete solution for counting out a fluid for particles, independent of the total hydraulic system.
As an option, other condition monitoring sensors such as the Hydac AquaSensor can be incorporated.
