Hydac Fluid Control Units Type FCU 1000

Hydac Fluid Control Unit Types FCU 1000

• Self diagnostics: Continuously with error display via status LED and display
• Ambient temperature range: 0 ... +45 °C / 32 ... 113 °F
• Storage temperature range: -40 ... +80 °C / -40 ... 176 °F
• Pressure max. 345 bar / 5000 psi
• Sensor flow rate ≈180 ml/min (viscosity-dependent)

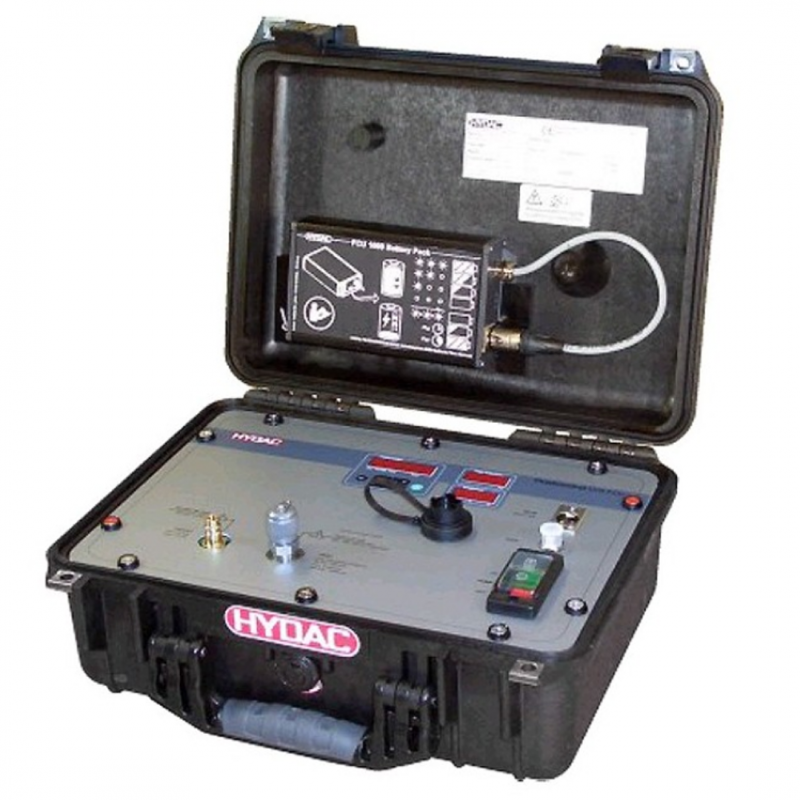

The Fluid Control Unit FCU 1000 series is a portable fluid service unit for short-term measurement of solid particle contamination and water saturation in hydraulic systems.

• The FCU can be connected to low- or medium-pressure hydraulic and lubrication lines from which a small flow of oil is diverted for measurement purposes.
• The design of the FCU allows the users to connect directly to a machine hydraulic (Scheduling Oil Sample - SOS) port or at a system control pressure to obtain accurate particle counts. The FCU can be used in the field for bottle sampling analysis.
• Applications for the FCU include the servicing and repair of mobile hydraulic systems.

Additional features include:

• Optical measurement of the degree of solid particle contamination
• Applicable for hydraulic fluids (up to ISO VG 68) 10 … 350 mm²/s / 16 … 1622 Sus
• Automatic measurement and display of cleanliness ratings in accordance with: ISO 4406:1999; SAE AS 4059 (D)
• Measurement accuracy +/- 1 ISO code in the calibrated range
• Supply voltage of 24 V DC / 4 A for operation on mobile machine on-board power supplies
• Maximum operating pressure 45 bar / 650 psi
• Pressure resistant to maximum 345 bar / 5000 psi
• Integrated pump for the automatic control of oil flow
