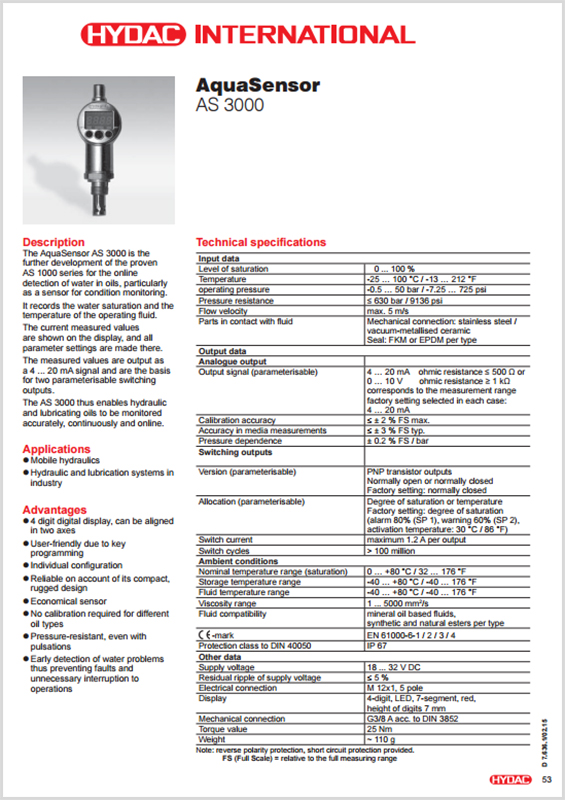

Hydac Aqua Sensor Type AS 3000 Series
The AquaSensor AS 3000 is used for the online detection of water in oils, particularly as a sensor for condition monitoring
- Saturation level: 0 ... 100 %
- Operating pressure: -0.5 … 50 bar
- Burst pressure: ≤ 630 bar
Part Number | Material Number | Mechanical Connection | Electrical Connection | Price | Add to Parts List |
---|---|---|---|---|---|
AS 3008-5-000 | G3/8 A DIN 3852 | Male M12x1, 5 pole (connector not supplied) | £1,218.19 £1,461.83 Inc. VAT |
|
Hydac Aqua Sensor Type AS 3000 Series
- Saturation level: 0 ... 100 %
- Operating pressure: -0.5 … 50 bar
- Burst pressure: ≤ 630 bar
The AquaSensor AS 3000 is the further development of the proven AS 1000 series for the online detection of water in oils, particularly as a sensor for condition monitoring. It records the water saturation and the temperature of the operating fluid.
Applications:
- Mobile hydraulics
- Hydraulic and lubrication systems in industry
Advantages:
- 4 digit digital display, can be aligned in two axes
- User-friendly due to key programming
- Individual configuration
- Reliable on account of its compact, rugged design
- Economical sensor
- No calibration required for different oil types
- Pressure-resistant, even with pulsations
- Early detection of water problems thus preventing faults and unnecessary interruption to operations
General Function:
The AquaSensor AS 3000 with an integrated digital display is based on the proven AS 1000 series for the online detection of water in oils, particularly as a sensor for Condition Monitoring. The device has 2 switch outputs and one switchable analogue output signal (4 .. 20 mA or 0 .. 10 V). The AS 3000 detects the water saturation level and temperature of the fluid and transmits the values in the form of an analogue or switching signal. The display shows the actual measured values. All settings offered by the AS 3000 are grouped in 2 clearly-arranged menus.
The following parameters can be adjusted:
- Saturation level / temperature
- Switch points
- Switch mode of the switch outputs
- Switching direction
- Switch delay times
The AS 3000 thus enables hydraulic and lubricating oils to be monitored accurately, continuously and online.
