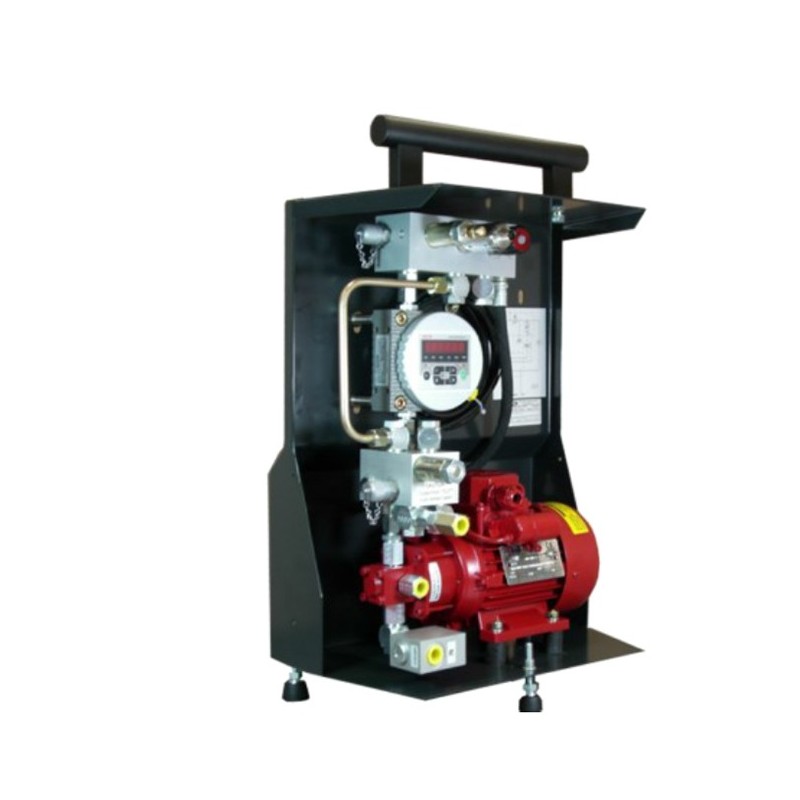

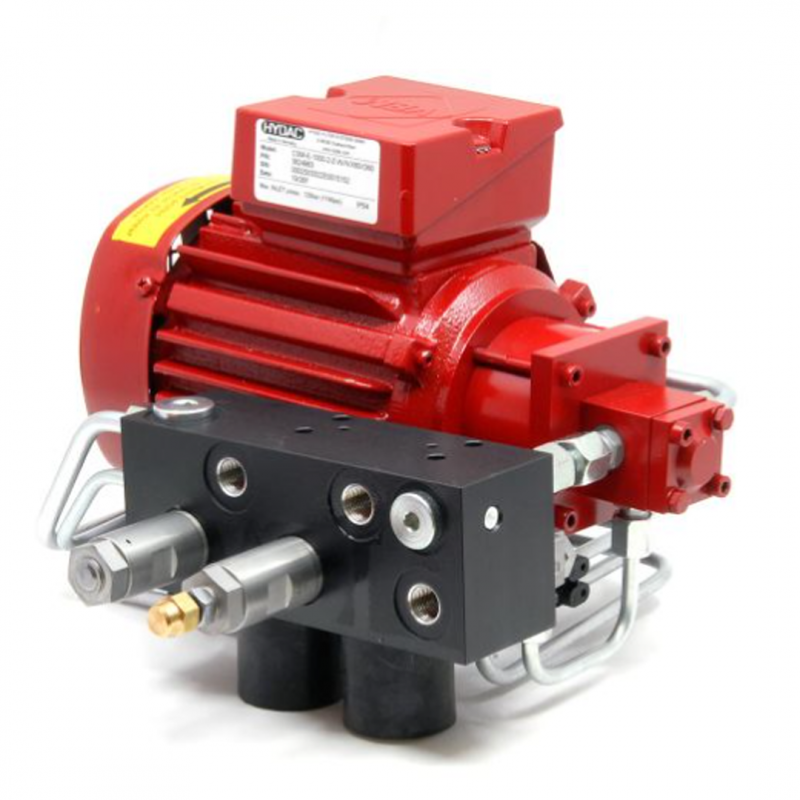

Hydac Contamination Sensor Module Type CSM1320-2-1-W/N/X60/O60/-AS
The HYDAC CSM1320-2-1-W/N/X60/O60/-AS is a compact online sensor module for continuous monitoring of particle and water contamination in hydraulic and lubrication fluids. With a built-in gear pump and AquaSensor AS 1000, it’s ideal for proactive maintenance in industrial systems.
Key Features:
- Total flow rate: ≈ 180 ml/min
- Permitted outlet pressure: 5 bar max
- AS = with AquaSensor AS 1000
- Pump type: Gear pump
| Part Number | Material Number | No-Show | Price | Add to Parts List |
|---|---|---|---|---|
| CSM1320-2-1-W/N/X60/O60/-AS | 0 | On Enquiry |
HYDAC Contamination Sensor Module Type CSM1320-2-1-W/N/X60/O60/-AS
- Total flow rate: ≈ 180 ml/min
- Permitted outlet pressure: 5 bar max
- AS = with AquaSensor AS 1000
- Pump type: Gear pump
Applications:
- Lubrication oil system in paper, steel and energy sectors
- For condition-based, pro-active maintenance
- Monitoring of component cleanliness on test rigs
- Monitoring of oil cleanliness in oil reservoirs
The HYDAC contamination sensor module offers online monitoring of the oil cleanliness with alarm function to indicate:
- Ingress of and increase in contamination
- Increase in contamination as components start to wear
- When there are filtration problems
Advantages:
- Cost-effective, complete solution
- Verification of cleanliness on test rigs
- Verification of changes in the oil cleanliness as a result of inadequate servicing
General Function:

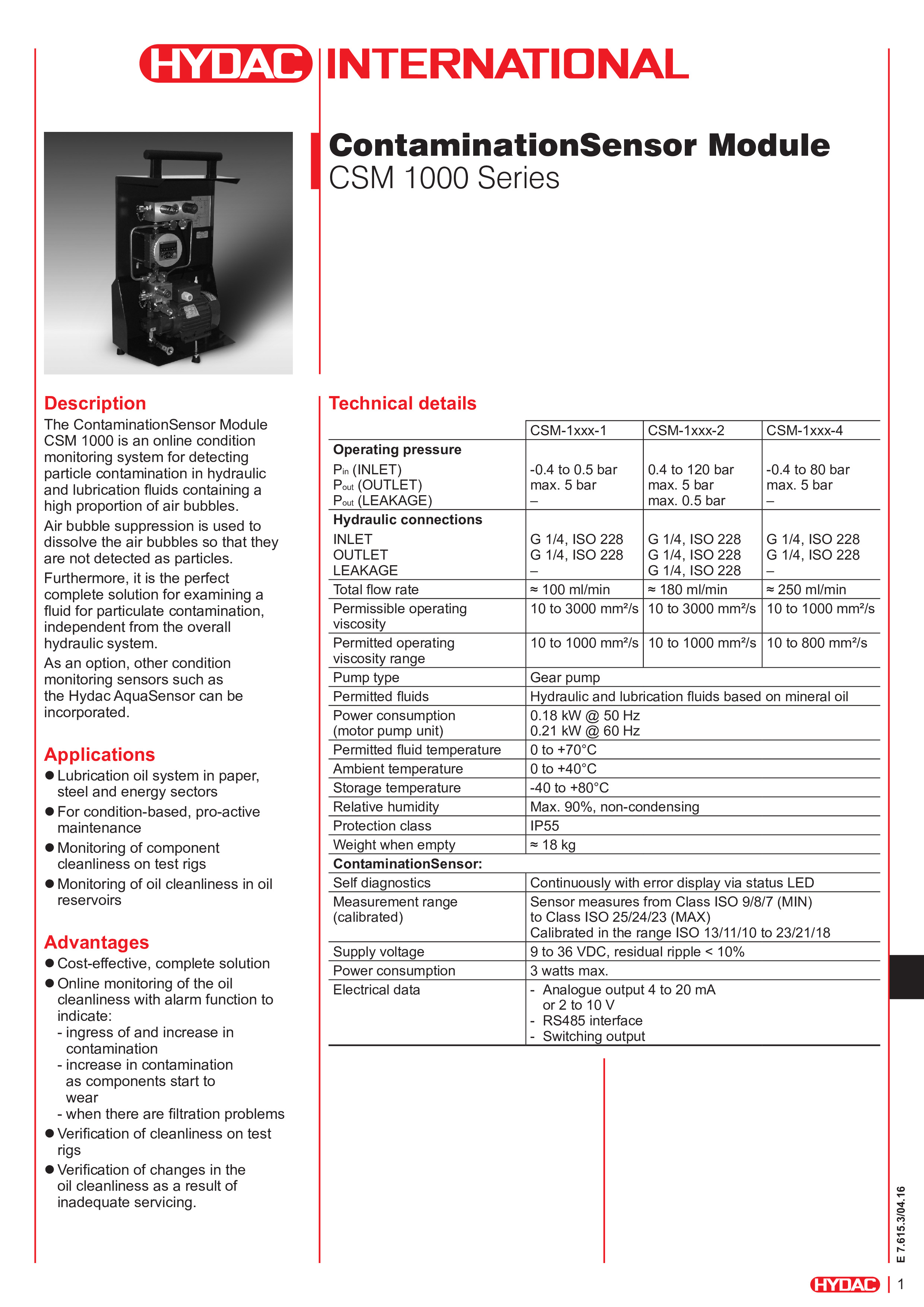

The ContaminationSensor Module CSM 1000 series is an Online Condition Monitoring System for the continuous measurement of solid particle contamination in hydraulic and lubrication fluids with high proportions of air bubbles. Air bubbles are brought into solution by means of an integrated air bubble suppression and are therefore not measured as particles. The CSM 1000 is the ideal complete solution for counting out a fluid for particles, independent of the total hydraulic system.
