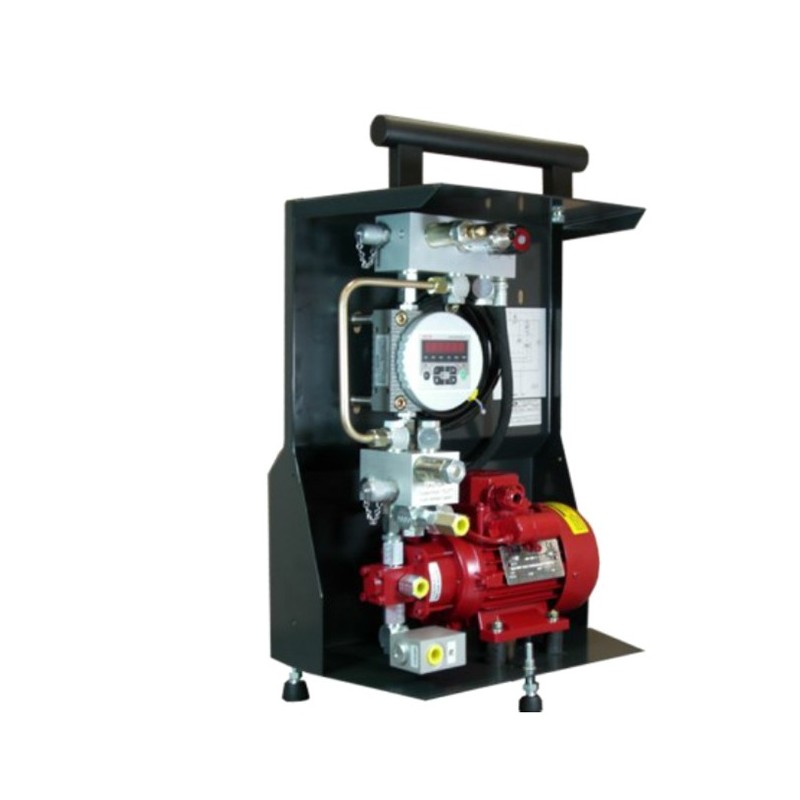

Hydac Contamination Sensor Module Type CSM1320-2-1-W/N/X60/O60/

The HYDAC CSM1320-2-1-W/N/X60/O60/ is a compact, online monitoring system for continuous measurement of particle contamination in hydraulic and lubrication fluids. Featuring a gear pump, rotatable display, and air bubble suppression, it enables reliable oil cleanliness monitoring for proactive maintenance in industrial applications.

Key Features:

  • Total flow rate: ≈ 180 ml/min
  • Permitted outlet pressure: 5 bar max

Products
Downloads
Description
Part Number Material Number No-Show Price Add to Parts List
CSM1320-2-1-W/N/X60/O60/ CSM1320-2-1-W/N/X60/O60/ 0 On Enquiry

HYDAC Contamination Sensor Module Type CSM1320-2-1-W/N/X60/O60/

  • Total flow rate: ≈ 180 ml/min
  • Permitted outlet pressure: 5 bar max
  • Pump type: Gear pump (standard)
  • Comes with display (display can be rotated through 270°)

Applications:

  • Lubrication oil system in paper, steel and energy sectors
  • For condition-based, pro-active maintenance
  • Monitoring of component cleanliness on test rigs
  • Monitoring of oil cleanliness in oil reservoirs

The HYDAC contamination sensor module offers online monitoring of the oil cleanliness with alarm function to indicate:

  • Ingress of and increase in contamination
  • Increase in contamination as components start to wear
  • When there are filtration problems

Advantages:

  • Cost-effective, complete solution
  • Verification of cleanliness on test rigs
  • Verification of changes in the oil cleanliness as a result of inadequate servicing

General Function:

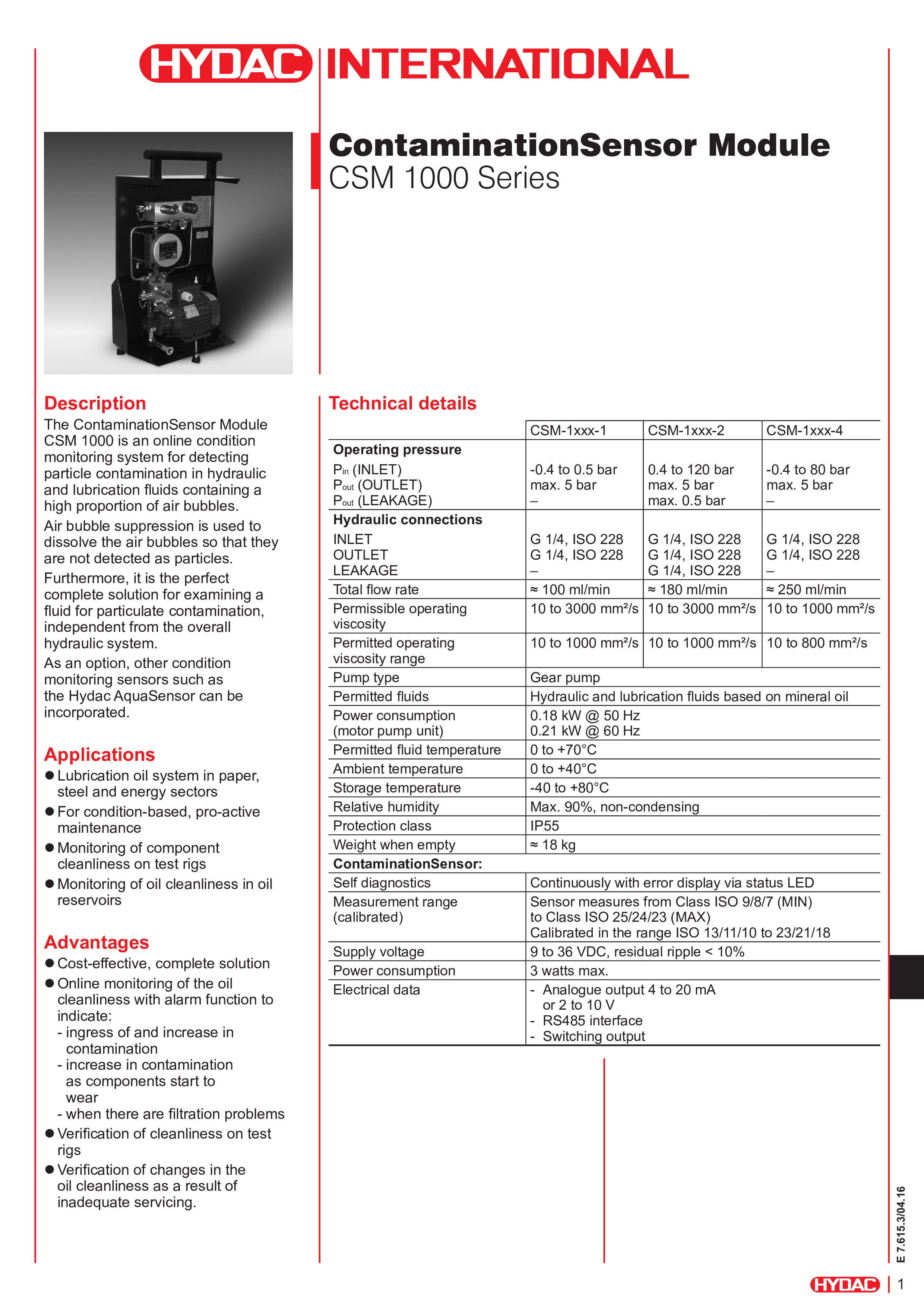

The ContaminationSensor Module CSM 1000 series is an Online Condition Monitoring System for the continuous measurement of solid particle contamination in hydraulic and lubrication fluids with high proportions of air bubbles. Air bubbles are brought into solution by means of an integrated air bubble suppression and are therefore not measured as particles. The CSM 1000 is the ideal complete solution for counting out a fluid for particles, independent of the total hydraulic system.
