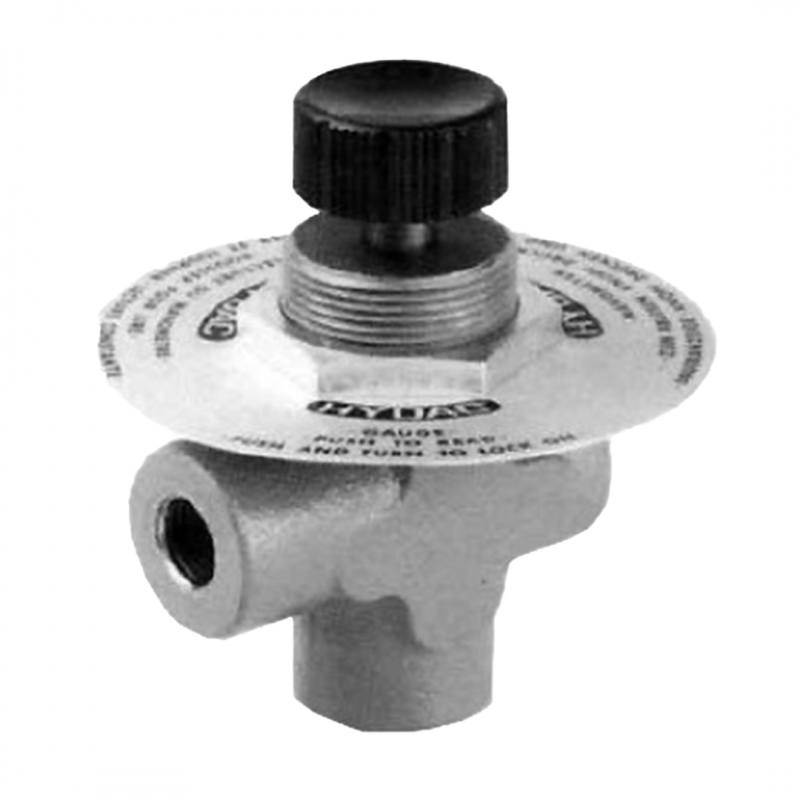

Hydac Single Station Gauge Isolator Type MA
The HYDAC Single Station Gauge Isolator Type MA is designed to protect pressure gauges by isolating them from continuous system pressure, ensuring long service life and accurate readings. With a simple push-button operation, it allows pressure to be measured only when needed—either momentarily or locked for continuous display.
Key Features:
- Panel mounting design with G ¼" connections and optional mounting position
- Two operating modes: momentary push or lockable 90° turn for continuous reading
- Automatically vents pressure to tank to protect gauges from pressure surges
HYDAC Single Station Gauge Isolator Type MA
- Mounting method: Panel mounting (max. 10 mm panel thickness)
- Connections: G ¼" (for M,P,T)
- Weight: Approx. 0.4 kg
- Mounting position: Optional
- Operating fluid: Mineral oil. Others on request.
- Special models and surface treatment on request
Long life and continuous accuracy can be achieved if pressure gauges are only pressurised for the time it takes to read the pressure. For the rest of the time the gauge isolator isolates the pressure gauge and the gauge is automatically vented to the tank. This then protects the gauge from possible pressure surges from the system.
This is possible with the HYDAC Single Station Gauge Isolator. It can be operated in two ways:
A) Push button: The pressure is indicated as long as the button is depressed
B) Push button and turn clockwise through 90°: This locks the pressure indication until the button is released
