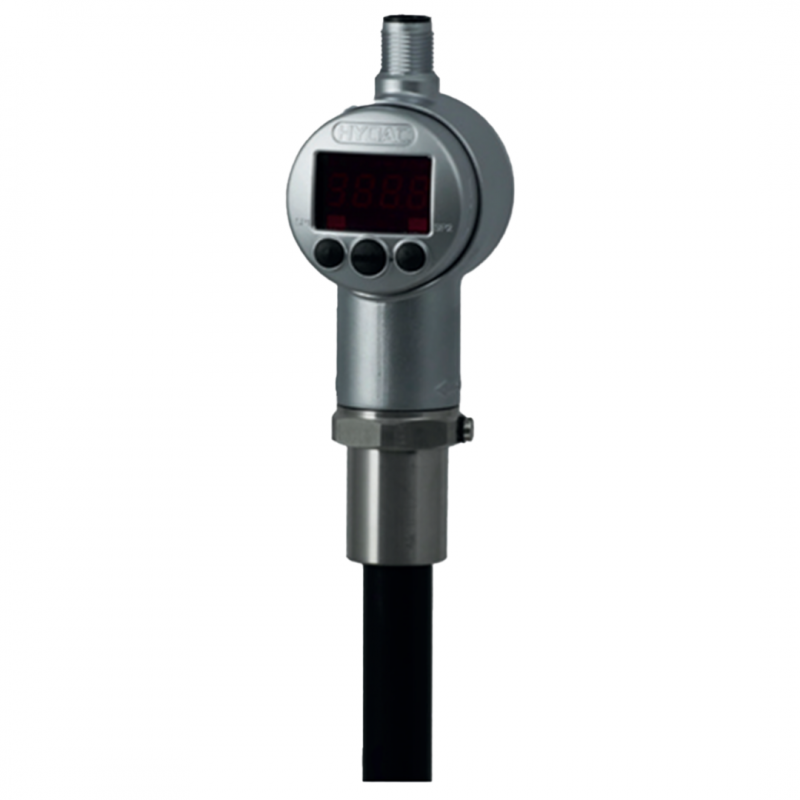

Hydac Electronic Level Switch ENS 3000

New

Electronic level switch ENS 3000 is an electronic level switch with integral display

  • Measuring range: -25 .. +100 °C
  • Accuracy: ± 1.5 °C

More details

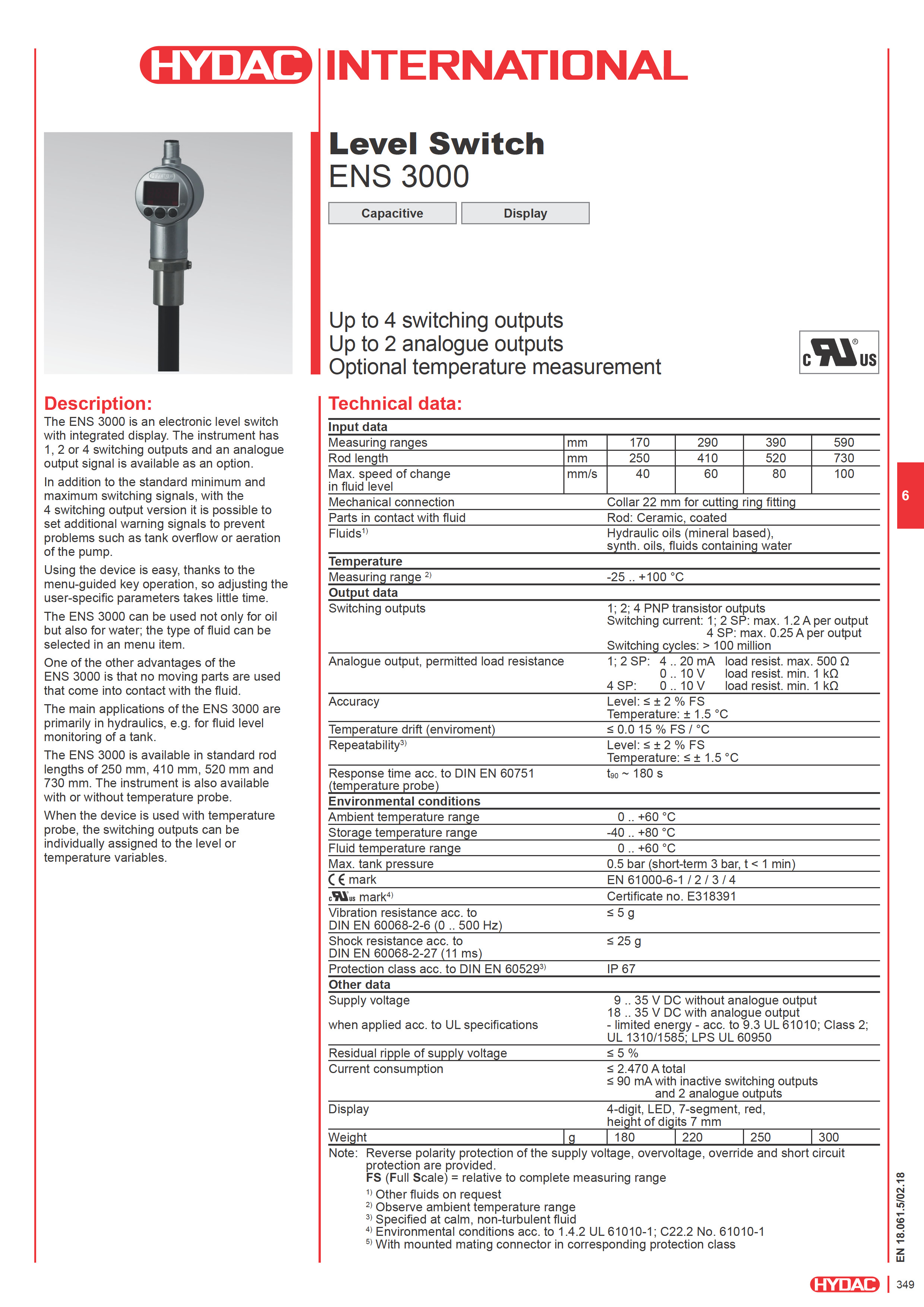

Download Data Sheet Hydac Electronic Level Switch ENS 3000

Hydac Electronic Level Switch ENS 3000

  • Sensor type: Semiconductor sensor
  • Measuring range: -25 .. +100 °C
  • Accuracy: ± 1.5 °C
  • Max. tank pressure 0.5 bar (short-term 3 bar, t < 1 min)
  • Display: 4-digit, LED, 7 segment, red, height of digits 7 mm

Features:

  • 1, 2 or 4 independent PNP transistor switching outputs
  • Selectable for use with oil or water
  • User-selectable switch outputs based on the measured value
  • Switching and switch-back points can be adjusted independently
  • Selectable analogue output
  • 4-digit display
  • Simple to operate due to menu-based key operation

General Function:

The ENS 3000 is an electronic level switch with integral display. The unit has either 1, 2 or 4 switching outputs and an analogue output signal is available as an option. In addition to the standard minimum and maximum switching signals, it is possible with the 4 output version to set additional warning signals to prevent problems such as tank overflow or aeration of the pump.
The ENS 3000 can be used for oil as well as water. The fluid type can be selected via the menu for specific applications. The main applications of the ENS 3000 are primarily in hydraulics, e.g. for fluid level monitoring of a tank.
The ENS 3000 is available in standard probe lengths of 250 mm, 410 mm, 520 mm and 730 mm. The unit is also available with or without an integrated temperature sensor
