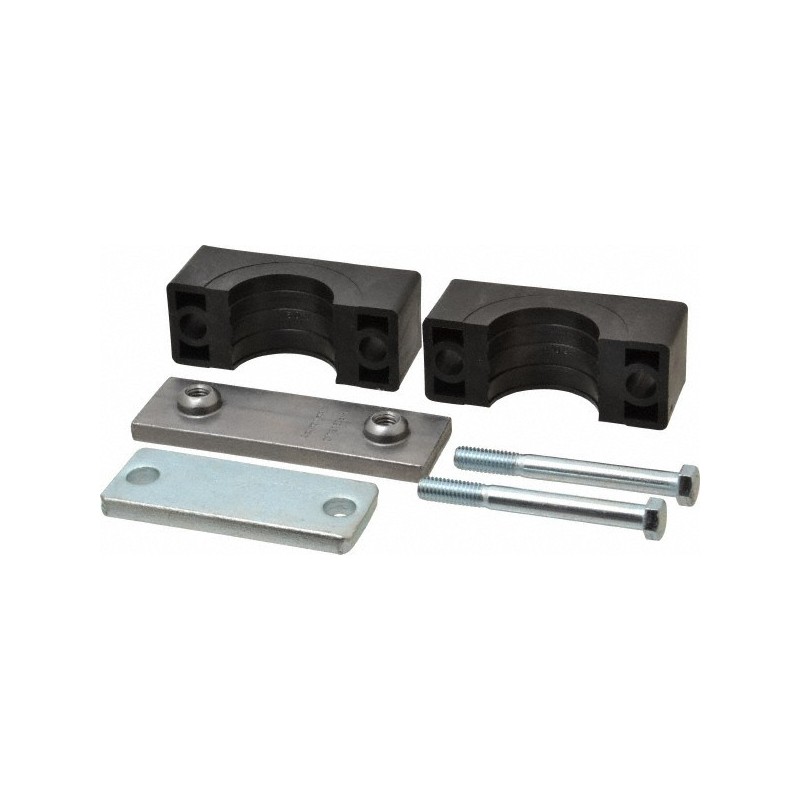

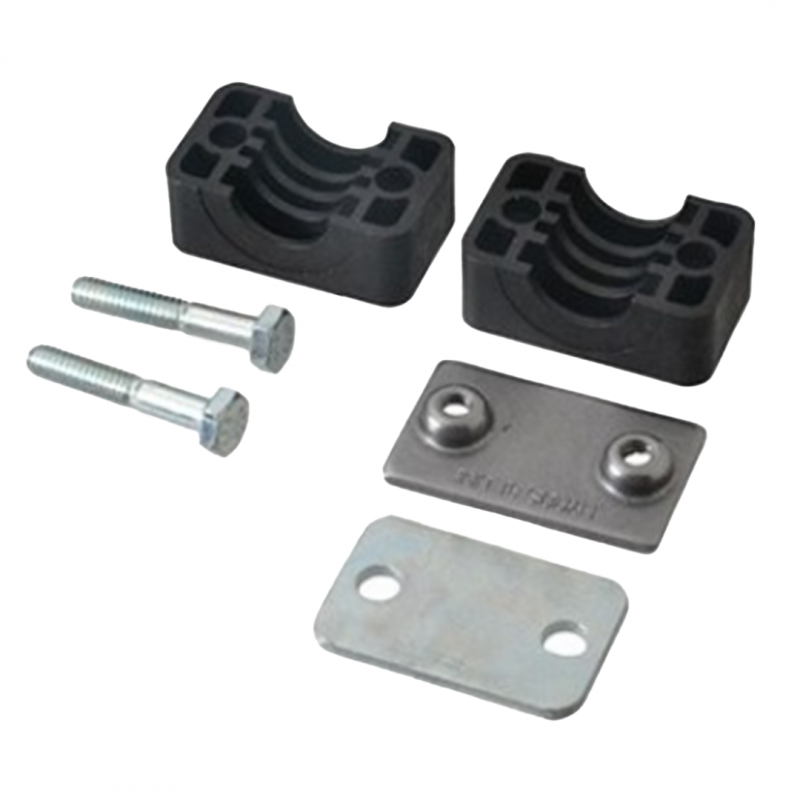

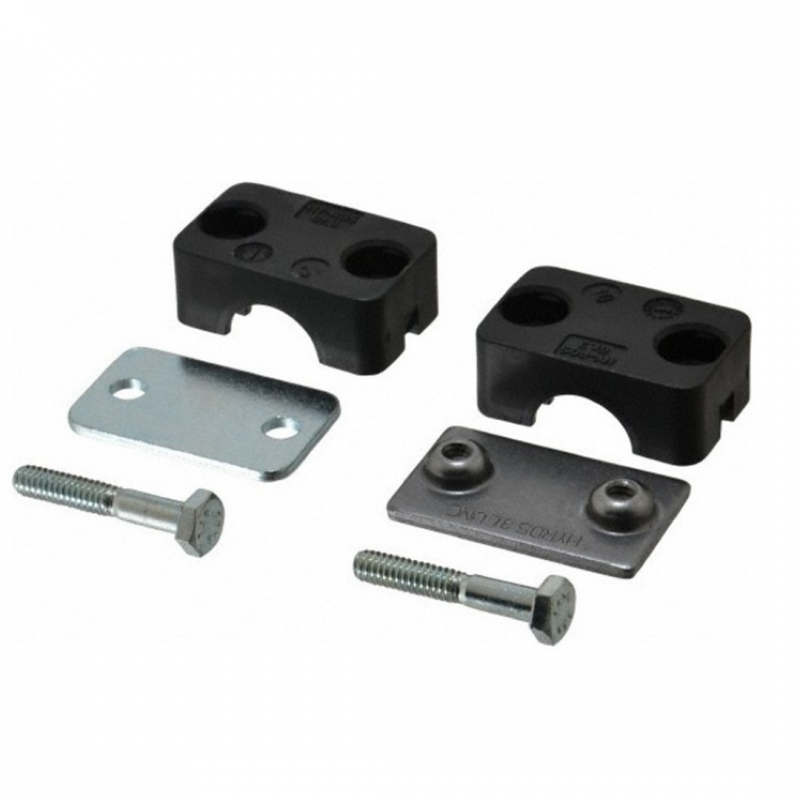

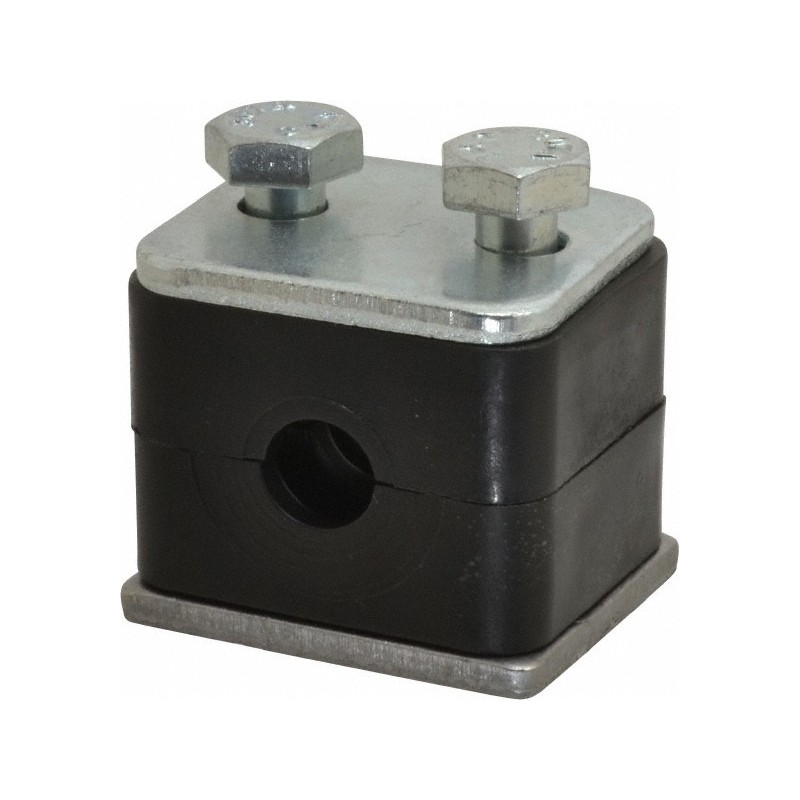

Hydac Mounting Technology Clamps to DIN3015
HYDAC Mounting Technology Clamps to DIN 3015 offer a highly versatile and modular solution for securely mounting pipes under both static and dynamic loads. Designed for durability and performance, these clamps provide excellent vibration damping, corrosion resistance, and easy installation across light, heavy, and twin clamp configurations.
Key Features:
- Shock-absorbing and vibration-damping with thermoplastic rubber clamp bodies
- Wide diameter range: 6–406.4 mm depending on clamp type (Light, Heavy, Twin)
- Corrosion-resistant materials and economical bayonet nut assembly system
Description
Downloads
HYDAC Mounting Technology Clamps to DIN3015
Clamps to DIN 3015 are a perfected modular system for the mounting of pipes with static and dynamic loads
Advantages:
- Shock-absorbing, vibration-damping and noise-absorbing properties
- Compensation of pipe allowances and axial divergences
- Exclusion against corrosion by all around surface treatment
- Economical stick in and screw assembly of the bayonet nut
- Smooth component mounting by clamp body of thermoplastic rubber
- Weld plates formed of one part
- Steel parts with sufficient surface protection
- Safe overhead mounting by fixing effect of the plastic parts
Part 1 Light range:
- Diameter range from 6 - 54 mm
- With elastomer insert of 6 - 32 mm
Part 2 Heavy range:
- Diameter range from 6 - 406.4 mm
- With elastomer insert of 6 - 140 mm
Part 3 Twin clamps:
- Diameter range from 6 -42 mm
Materials:
- PA, PP, thermoplastic elastomer
