Hydac Pump-Transfer Cooler Filtration Unit UKF-1

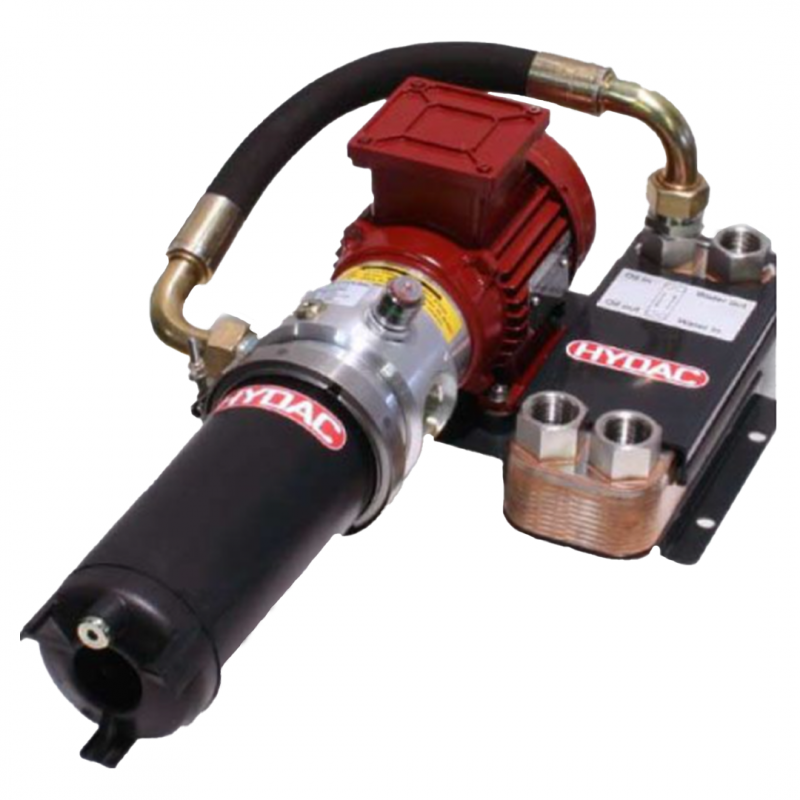

The HYDAC UKF-1 is a compact, plug-and-play offline filtration and cooling unit designed for hydraulic systems, combining a low-noise pump, high-efficiency filter, and oil-water plate heat exchanger. With a flow rate of up to 15 l/min and cooling capacity up to 10 kW, it’s ideal for precision cooling in demanding industrial environments.
Key Features:
- Cooling capacity: up to 10 kW
- Motor rating: 0.37 – 0.55 kW
- Flow rate: 5 - 15 l/min
Description
Downloads
HYDAC Pump-Transfer Cooler Filtration Unit UKF-1
- Cooling capacity: up to 10 kW
- Motor rating: 0.37 – 0.55 kW
- Flow rate: 5 - 15 l/min
The UKF unit is a compact, easy-to-install system for offline filtration cooling circuits. It consists of a low-noise feed pump, a filter and a plate heat exchanger
Features:
Offline unit consisting of:
- Low-noise feed pump
- Filter
- Oil-water plate heat exchanger
- The circuit is fitted with check valves to isolate the filter when used with a positive head tank when changing the filter element
Applications:
- Plastic injection moulding machines
- Transmission systems
- Pressing / Stamping
- Machining centres
- Hydraulic systems
