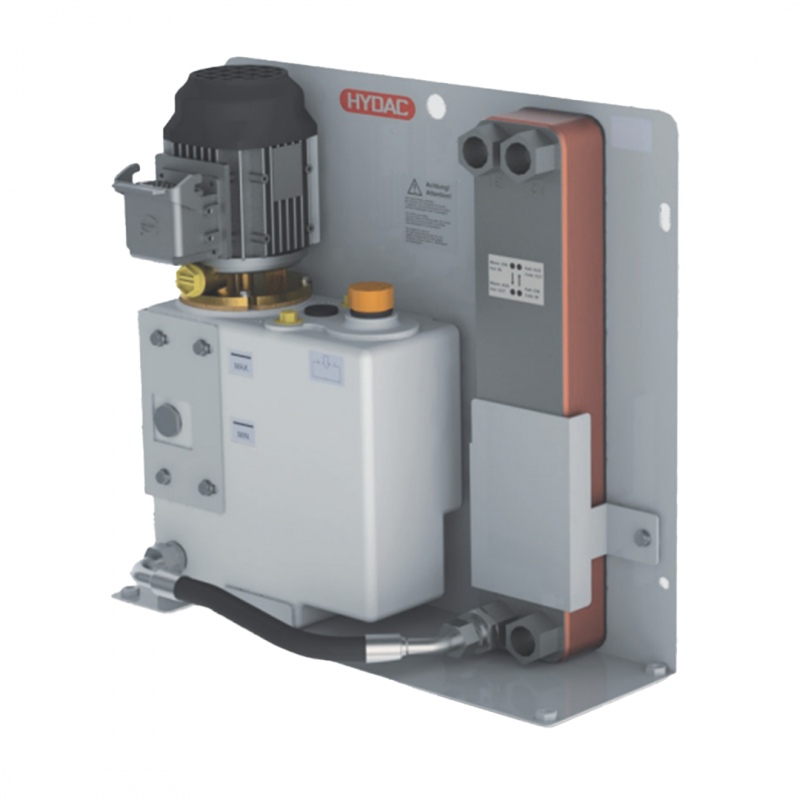

Hydac Cooling Systems FWKS-2 /1.0 /M
The FWKS-2/1.0/M is a fully integrated, compact cooling unit designed for closed-loop cooling and lubrication using mineral oil. Its intermediate circuit design protects critical components from direct water contact, ensuring long-term system reliability and corrosion resistance.
Key Features:
- Cooling capacity up to 100 kW with flow rates up to 150 l/min
- Includes plate heat exchanger, circulation pump, and 100 L tank
- Optimized for mineral oil as the operating medium
HYDAC Cooling Systems FWKS-2/1.0/M
The FWKS is a compact, complete fluid-water cooling system for cooling and lubrication circuits.
This system is primarily used as a temperature-controlled intermediate circuit. The advantage of an intermediate circuit is that the system or the parts being cooled do not come into contact with the actual coolant, i.e. water, which helps to prevent contamination or corrosion of the system.
The FWKS is comprised of one plate heat exchanger, a tank with a circulating pump and additional accessories.
Function:
The pump conveys the operating medium out of the tank through the component to be cooled to the plate heat exchanger, where it is cooled down once again with water.
FWKS are available in various installation sizes. Depending on the version, water-glycol (W) or mineral oil (M) can be used as operating medium.
Technical data:
- Cooling capacity up to 100 kW (depending on the limiting conditions)
- Flow rate up to 150 l/min
- Tank content up to 100 l
- Cooling medium water
- Operating medium water-glycol or mineral oil
Typical applications:
- Cooling of AC main applications
- Cooling of motor spindles in processing machines
- Fluid-cooled drives
- Inverter cooling
- Cooling and lubrication of gear units
