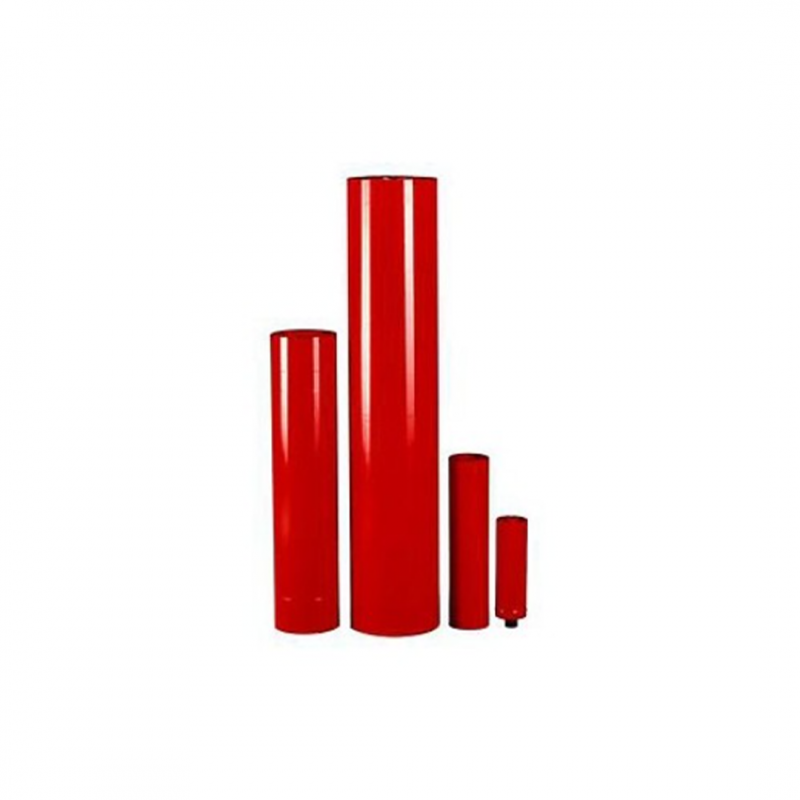

Hydac Standard Hydraulic Piston Accumulator SK
Standard hydraulic piston accumulators SK
- Nominal Volume : 0.2 to 600 litre
- Pressure Range : 210 / 350 bar
- Standard Temperature Range : 10°C to +80°C
The Hydac SK Standard Hydraulic Piston Accumulators offer reliable energy storage with volumes from 0.2 to 600 litres and pressure ratings up to 350 bar. Featuring a finely machined cylinder, lightweight floating piston, and customizable sealing systems, they are ideal for diverse hydraulic applications. Corrosion-resistant options and safety devices are available for harsh environments and demanding conditions.
Description
Downloads
Hydac Standard Hydraulic Piston Accumulator SK
- Nominal Volume, 0.2 to 600 litre
- Pressure Range, 210 / 350 bar
- Standard Temperature Range -10°C to +80°C
HYDAC piston accumulators consist of:
- A cylinder with very finely machined internal surface
- End caps on the gas side and the oil side. Sealed with O-rings
- A floating steel or aluminium piston which can easily be accelerated due to its low weight
- A sealing system adapted to the particular application
- The piston floats on two guide rings which prevent metal-to-metal contact between the piston and the accumulator wall
Corrosion protection:
- For use with certain aggressive or corrosive fluids, the parts coming into contact with the fluid can be nickel plated for protection, or made entirely from corrosion-resistant material
- Suitable materials are also available for low temperature applications
To protect your hydraulic accumulators against non-permitted temperature increase and/or excessive pressure, we recommend our safety devices.
