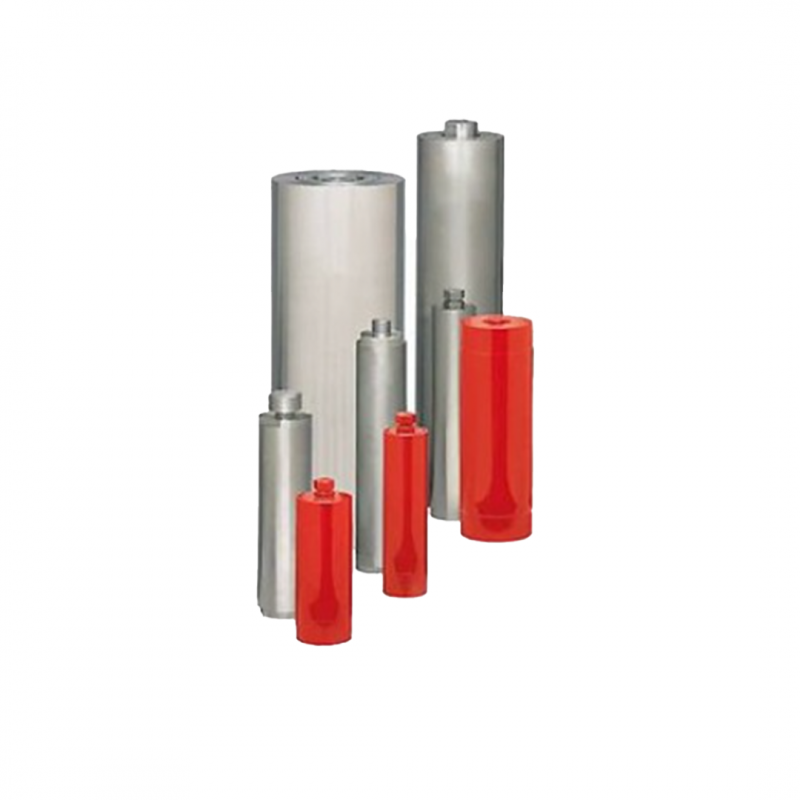

Hydac High Pressure Hydraulic Piston Accumulator SK

SK High pressure hydraulic piston accumulators

  • Nominal Volume : 1 to 50 litre
  • Pressure Range : 690 / 800 / 1000 bar
  • Standard Temperature Range : 10°C to +80°C

The HYDAC High Pressure SK Piston Accumulators are engineered for demanding applications, offering volumes from 1 to 50 litres and operating pressures up to 1000 bar. Featuring a finely machined cylinder, floating metal piston with high-pressure seals, and corrosion-resistant options, they deliver reliable performance in extreme environments.

Description
Downloads

Hydac High Pressure Hydraulic Piston Accumulator SK

  • Nominal Volume, 1 to 50 litre
  • Pressure Range, 690 / 800 / 1000 bar
  • Standard Temperature Range -10°C to +80°C

The high pressure piston accumulator consists of:

  • A cylinder with very finely machined internal surface
  • End caps on the gas side and the oil side
  • O-ring seals
  • Floating metal piston
  • High pressure sealing system
  • The piston floats on guide rings which prevent metal-to-metal contact between the piston and the accumulator wall

HYDAC piston accumulators can be used in a wide variety of applications and are also available in different pressure ranges

Corrosion protection:

  • For use with aggressive or corrosive fluids, the parts coming into contact with the fluid can be made of corrosion-resistant material
  • Suitable materials are also available for low temperature applications
