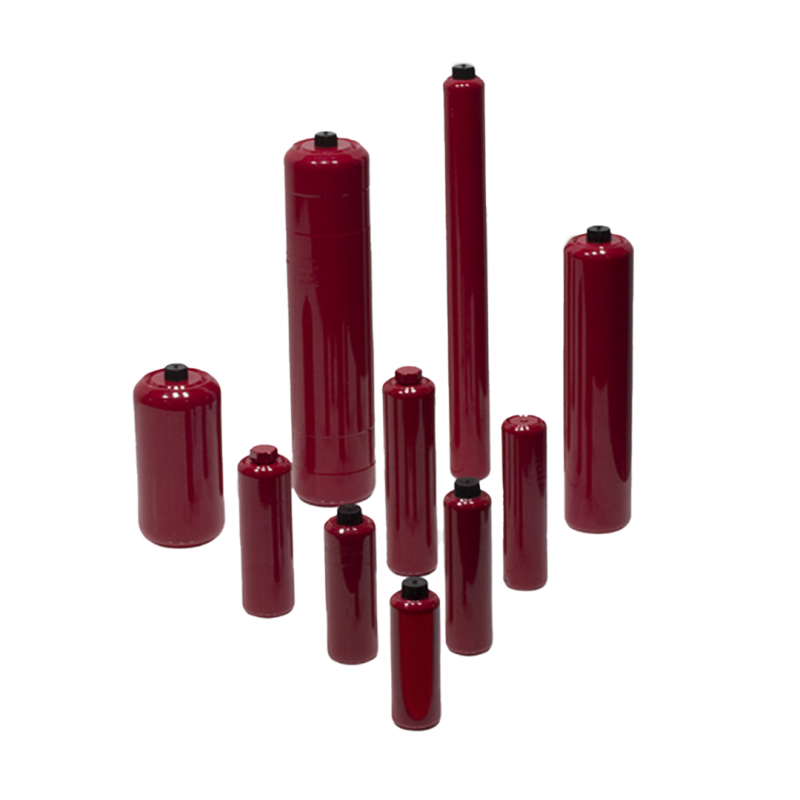

Hydac Piston Accumulators SK280
Series SK280 piston accumulators are manufactured and tested to PE D 97/23/EC
- Standard 280 bar
- Temperature range: -30 °C ... +80 °C
- Higher pressures on request
The HYDAC SK280 Piston Accumulator is a compact, lightweight energy storage solution rated for 280 bar and tested to PED 97/23/EC standards. Designed with a finely machined cylinder, floating piston, and dual guide rings, it ensures durability, minimal installation space, and reliable performance in temperatures from -30 °C to +80 °C. Integrated features like a standard M28x1.5 gas valve and endurance testing make it ideal for demanding hydraulic applications.
Description
Downloads
Hydac Piston Accumulators SK280
- Standard 280 bar
- Manufactured and tested to PE D 97/23/EC
- higher pressures on request
- Temperature range: -30 °C ... +80 °C
- others on request
HYDAC piston accumulators consist of:
- A cylinder with very finely machined internal surface
- End caps on the gas side and the oil side. Sealed with O-rings
- A floating steel or aluminium piston.
- A sealing system adapted to the particular application. The piston floats on two guide rings which prevent metal-to-metal contact between the piston and the accumulator wall. Suitable materials are also available for low temperature applications
Advantages of the SK280 Piston Accumulator:
- Optimized production process, saving on material and manufacturing costs
- Reduced-weight series
- Reduced installation space
- Standard gas valve M28x1.5 integrated into end cap (non-refillable version possible)
- Endurance tested (function and fatigue tests)
