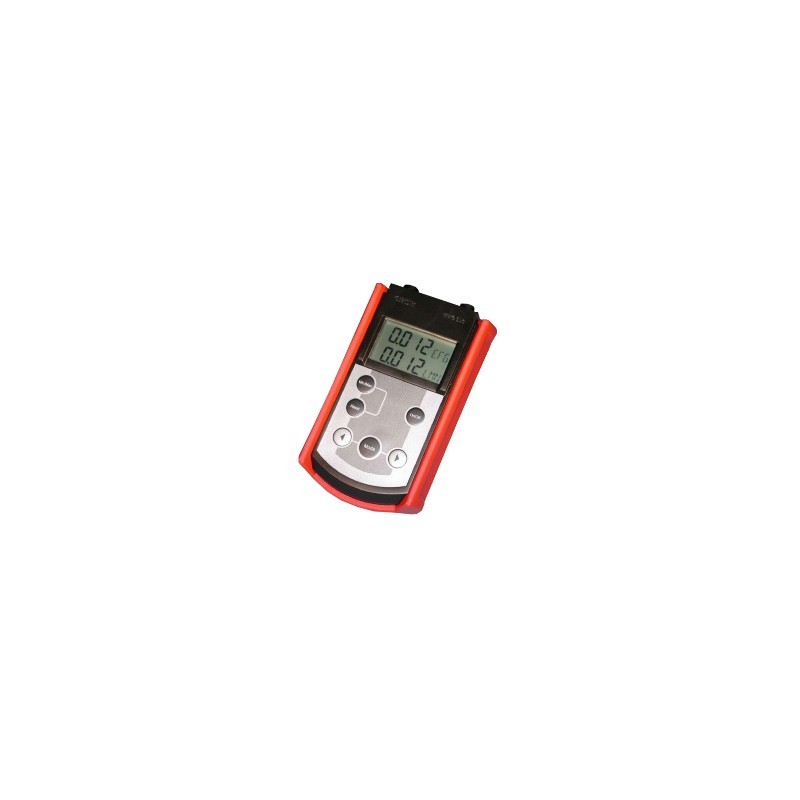

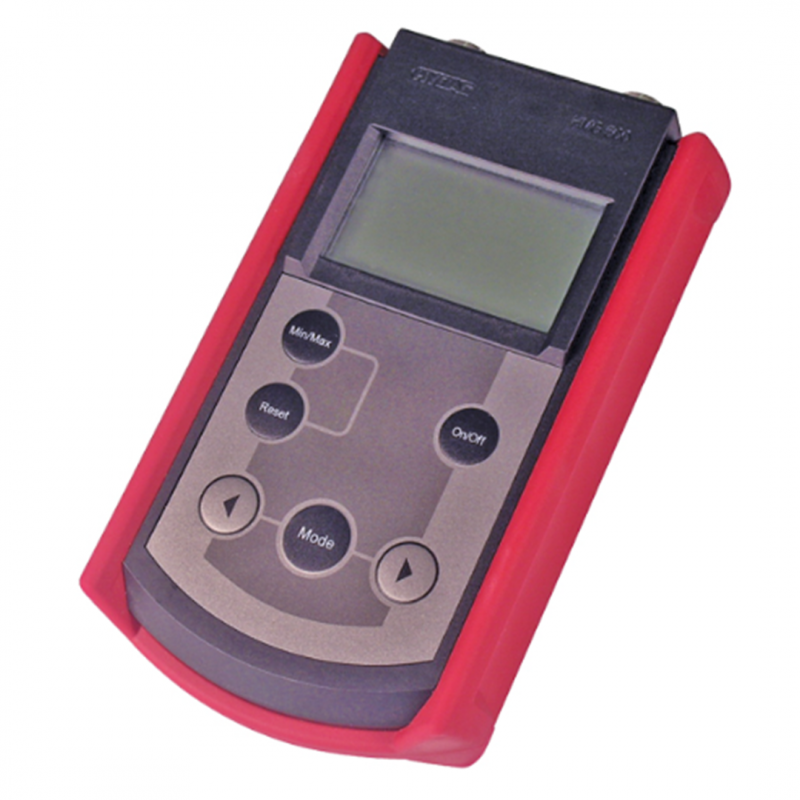

Hydac Portable Measuring Unit HMG 510
The HYDAC HMG 510 is a mobile 2-channel data recorder specially designed for on-site measurement in hydraulic and pneumatic systems. With support for HYDAC’s SMART (Condition Monitoring) sensors and user-friendly operation, it’s the ideal tool for service, maintenance, and commissioning tasks in both industrial and mobile applications.
Key Features:
- 2-channel input with automatic detection of SMART and standard sensors
- Live, differential, and min/max display on a large, easy-to-read LCD
- USB interface and intuitive keypad for quick, efficient operation
HYDAC Portable Measuring Unit HMG 510
- Mobile 2-channel portable data recorder
- Simple and user-friendly key operation
- Large LCD display including battery status display
- 2 sensor inputs, automatic sensor detection
- Especially for measurement value display of Condition Monitoring sensors (SMART sensors).
- Measurement range and unit of the connected sensors are detected automatically.
- Taring of the individual measurement channels
- Displays of the current measurement value
- Display of the difference (channel A-B)
- Minimum or maximum value recording, with reset function
- Adjustment aid for mechanical pressure and temperature switches
- USB interface
General Function:
The HMG 510 is a mobile, handy measuring device for measurement tasks in hydraulic and pneumatic plants in the mobile and industrial sector. Thanks to its compactness and ease of handling, the HMG 510 is an ideal companion for employees in maintenance, commissioning and service. Up to two sensors with HYDAC Sensor Interface (HSI) can be connected. Available are sensors for pressure, temperature and flow rate, in addition to sensors for Condition Monitoring (also referred to as SMART sensors).
