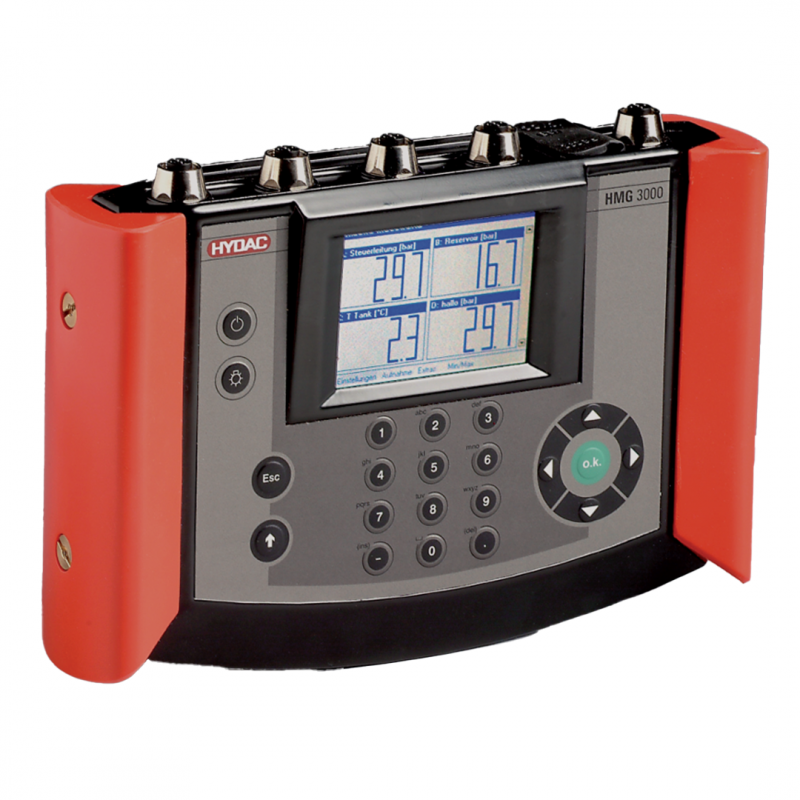

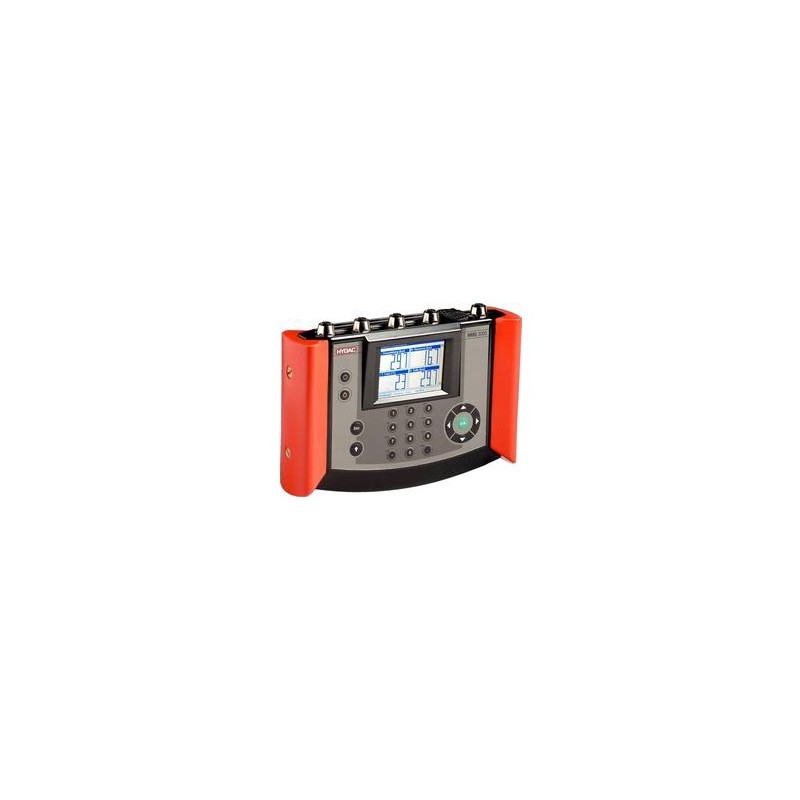

Hydac Portable Data Recorder HMG 3000
The HYDAC Portable Data Recorder HMG 3000 is a high-performance, user-friendly measuring unit designed for fast, efficient diagnostics and data logging in hydraulic systems. With automatic sensor recognition, advanced trigger functions, and a large graphical color display, it simplifies complex measurement tasks across a range of industrial applications.
Key Features:
- 10 input channels with extended voltage ranges
- Fast sampling down to 0.1 ms with multiple measurement modes
- Convenient data visualization and archiving with included software
HYDAC Portable Data Recorder HMG 3000
- Simple, user-friendly operation
- Design suitable for practical applications
- Large, full-graphical colour display
- Quick and independent basic setting ofthe unit through the use of automatic sensor recognition
- 10 input channels
- 8 analogue inputs
- 2 frequency inputs - Measurement rates up to 0.1 ms
- Extended voltage measurement-10 .. +10V and 0 .. 50 V
- Very large data memory for archiving measurement curves
- Various measurement modes:
- normal measuring
- fast curve recording
- long term measurements - 4 independent triggers, can be interconnected logically
- PC connection
- USB interface
- RS 232 interface - Convenient visualisation, archiving and data processing using the HMGWIN 3000 software supplied
General Function:
The HMG 3000 is a stylish, top performance portable measuring unit. It enables the user to carry out measurement tasks and pinpoint problems in the quickest possible time and in a cost and time effective way through the use of automated setting procedures, simple operation and extensive functions. Areas of application are primarily in servicing, maintenance, development, test rig technology, quality assurance or in the commissioning of machines and systems. The update capability of the HMG 3000 via USB interface makes it possible to take advantage of future further developments.
