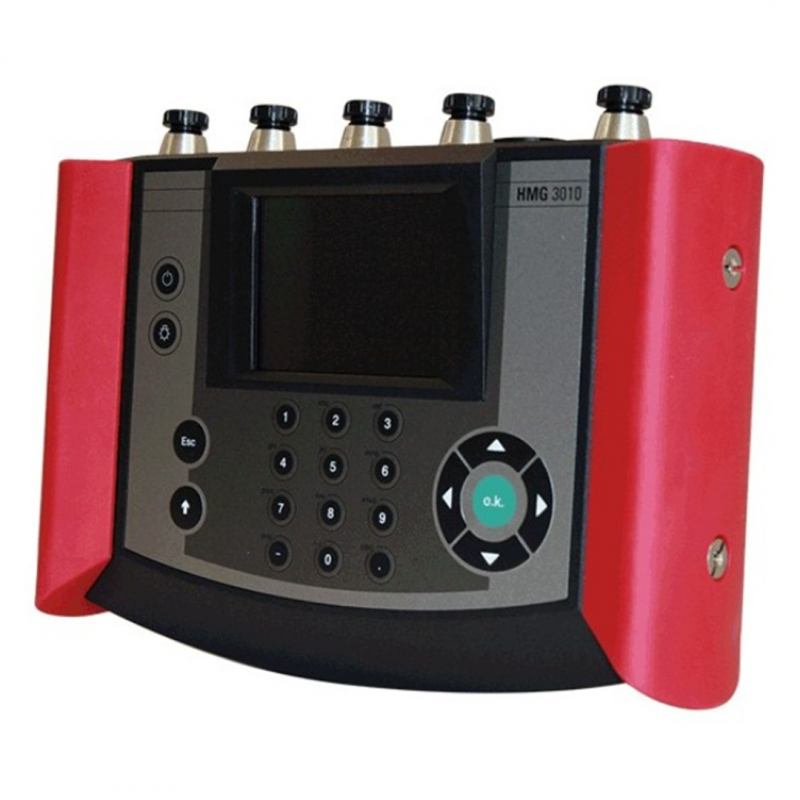

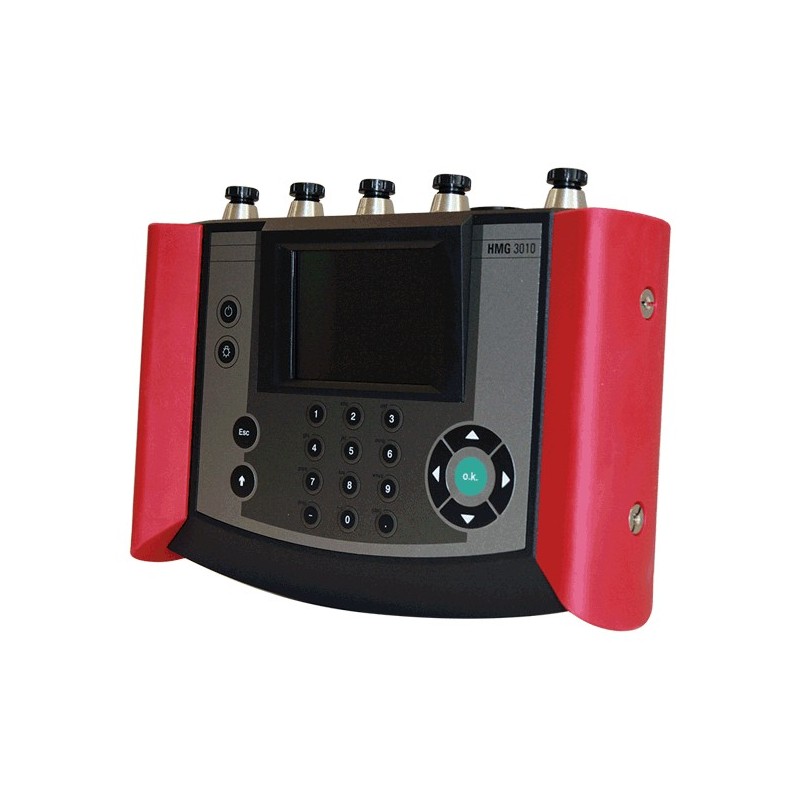

Hydac Portable Data Recorder HMG 3010

The HYDAC HMG 3010 is a high-performance, user-friendly data recorder designed for precise measurement and analysis in hydraulic and pneumatic systems. With automated sensor recognition, robust design, and advanced data logging features, it ensures efficient and reliable diagnostics for professionals in the field.

Key Features:

  • Connect up to 10 sensors with 32 measurement channels and 0.1 ms sampling rate
  • Large full-color display with intuitive operation and automatic sensor setup
  • Supports USB, RS232, and CAN bus connectivity with advanced software tools for data processing
Print page

Description
Downloads
Hydac Portable Data Recorder HMG 3010

HYDAC Portable Data Recorder HMG 3010

  • Simple and user-friendly operation
  • Practical, robust design
  • Large, full-graphics colour display
  • Quick and independent basic setting of the instrument through the use of automatic sensor recognition
  • Up to 10 sensors can be connected simultaneously
  • Up to 32 measurement channels can be displayed at a time
  • Measuring rates up to 0.1 ms
  • Extended voltage measurement -10 .. +10V and 0 ..50 V
  • Can be connected to a CAN bus
  • Very large data memory for archiving measurement curves
  • Various measurement modes:
    - Normal measuring
    - Fast curve recording
    - Long term measuring
  • 4 independent triggers, can be logically linked
  • PC connection
    - USB
    - RS 232
  • Convenient visualisation, archiving and data processing using the HMGWIN 3000 and CMWIN software supplied

General Function:

The HMG 3010 is an impressive, top performance portable measuring and data recording device. Automated setting procedures, a simple, self-explanatory operator guide and many comprehensive functions ensure the operator is able to carry out a wide range of measuring tasks within a very short time and to work in a way which is both time-saving and cost-effective. The HMG 3010 is designed primarily to record pressure, temperature and flow rate values which are the standard variables in hydraulics and pneumatics. The device also offers measurement inputs for standard sensors with current and voltage signals. In addition to the analogue inputs, the HMG 3010 also has two digital inputs (e.g. for frequency or rpm measurements). The ability to connect the HMG 3010 to a CAN bus and thus to display messages from the CAN bus completes the range of applications.
