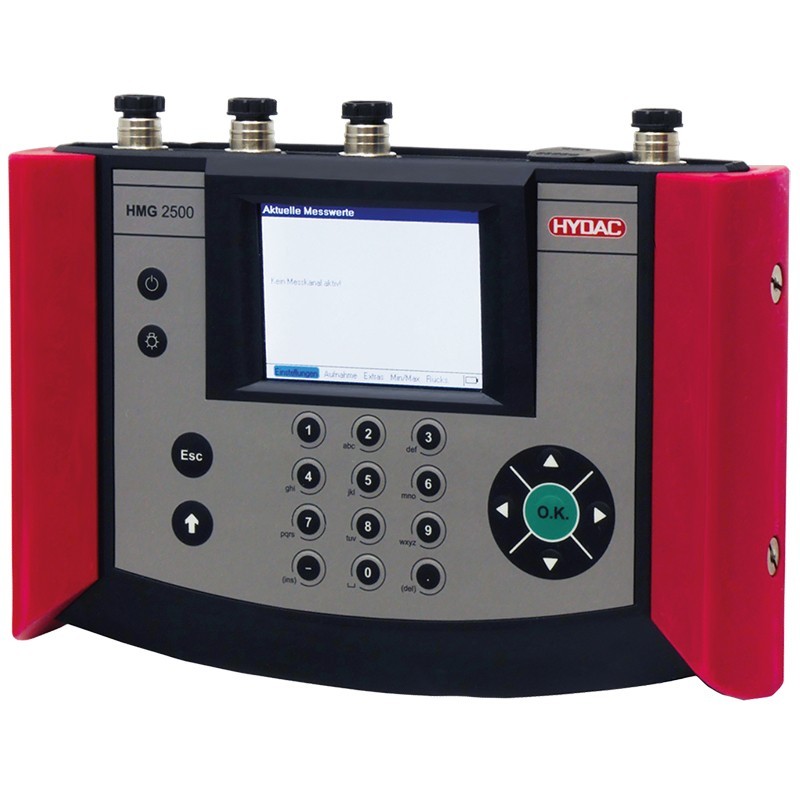

Hydac Portable Data Recorder HMG 2500
The HMG 2500 device is designed primarily to record pressure, temperature and flow rate values which are the standard variables in hydraulics and pneumatics. Due to the wide range of functions and its simple handling, the HMG 2500 is just as appropriate for users who take measurements only occasionally as it is for professionals for whom measuring and documentation are routine.
Key Features:
- 3.5" Colour Display
- Up to 4 sensors can be connected
- Automatic Sensor Detection
HYDAC Portable Data Recorder HMG 2500
- Simple and user-friendly operation
- Practical, robust design
- Large, full colour graphics display
- Quick and independent basic setting by use of automatic sensor recognition
- Up to 4 sensors can be connected simultaneously
- Up to 32 measurement channels can be depicted simultaneously
- Sampling rates up to 0.1 ms
- Very large data memory for archiving measurement curves
- Various measurement modes:
- Normal measuring
- Fast curve recording
- Long-term measurement - 2 independent triggers, can be linked logically
- Simple sensor connection by means of M12x1 push-pull connector
- PC connection
- USB
- RS 232 - Convenient visualisation, archiving and data processing using the HMGWIN software supplied
General Function:
The HMG 2500 device is designed primarily to record pressure, temperature and flow rate values which are the standard variables in hydraulics and pneumatics. For this purpose, special sensors are available. The HMG 2500 recognises the measured variable, measuring range and the unit of these sensors and automatically carries out the basic device settings accordingly. Due to the wide range of functions and its simple handling, the HMG 2500 is just as appropriate for users who take measurements only occasionally as it is for professionals for whom measuring and documentation are routine. The update capability of the HMG 2500 ensures that the user can benefit from future upgrades of the device software.
