Hydac Portable Data Recorder HMG 4000

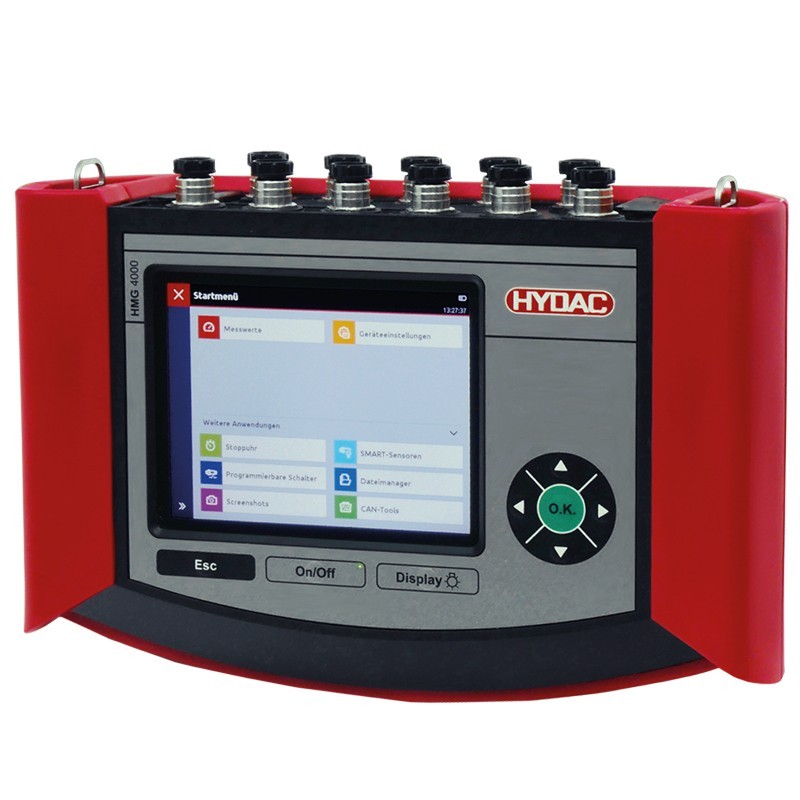

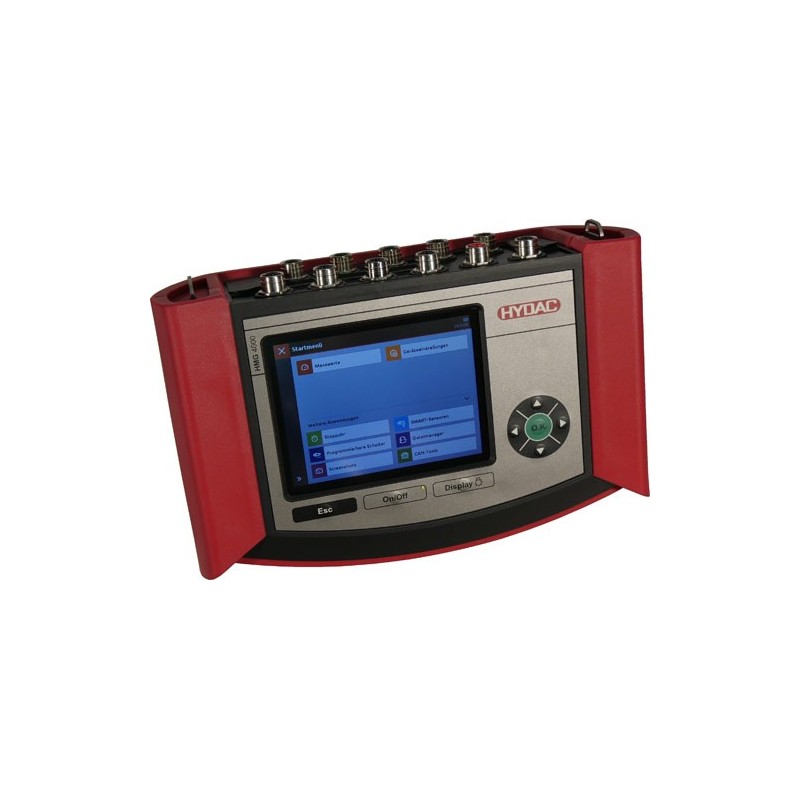

HYDAC Portable Data Recorder HMG 4000

• Large, full- colour graphics display 5.7" touchscreen
• Capable of recording up to 38 sensors at once, 8 analogue, 2 digital sensors and 28 HCSI sensors via CAN bus
• Up to 100 measurement channels can be depicted simultaneously
• High-speed sampling rate, up to 8 sensors at 0.1 ms at a time
• Quick and independent basic setting by use of automatic sensor recognition
• Analogue inputs 0 to 20 mA, 4 to 20 mA Voltage 0 to 50 V, -10 to 10 V
• PT 100/1000 input
• Connection to a CAN bus system (also J1939)
• Simple and user-friendly operation, intuitive menu
• Practical, robust design
• Very large data memory for archiving measurement curves. Enables the storage of 500 measurements with up to 8 million measured values
• Various measurement modes:
  – Normal measuring
  – Fast curve recording
  – Long-term measurements
• Recording of dynamic processes "online" in real time
• Event-driven measurements with several triggering options
• Programming function for HYDAC switch devices
• PC interface via USB
• USB Host connection for USB memory sticks
• Convenient visualisation, archiving and data processing using the HMGWIN software supplied

General Function:

The HMG 4000 portable data recorder is a portable measurement and data acquisition. It was mainly developed for all measured variables in relation with hydraulic systems, such as pressure, temperature, flow rate and linear position. Moreover, it provides a very high fl exibility, even when it comes to evaluating other measured variables. The main applications are servicing, maintenance or test rigs. The data recorder has a very easy-tooperate user interface due to its large 5.7" touchscreen. The operator can access all of the device’s functions and settings by means of clearly presented selection menus. The HMG 4000 can record signals of up to 38 sensors at once.
