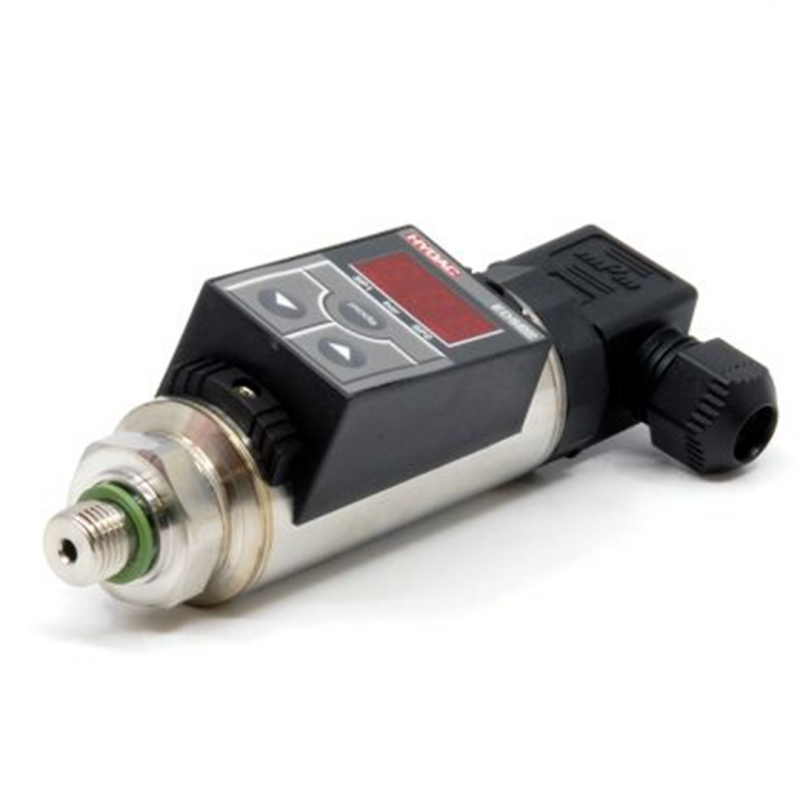

Hydac Electronic Pressure Switch EDS 300

The HYDAC EDS 300 is a compact, electronic pressure switch with an integrated 3-digit digital display, designed for precise pressure monitoring and control in demanding hydraulic and pneumatic applications. With fast response time, robust construction, and user-friendly programming, it offers a reliable alternative to mechanical switches where high switching accuracy and frequency are required.

Key Features:

  • Fluid temperature range: -25 .. +80 °C
  • Supply voltage: 20 .. 32 V DC
  • Reaction time: approx. 10 ms

Description
Downloads

HYDAC Electronic Pressure Switch Type EDS 300

  • Fluid temperature range: -25 .. +80 °C
  • Supply voltage: 20 .. 32 V DC
  • Reaction time: approx. 10 ms
  • Current consumption: approx. 100 mA (inactive switch output)

The EDS 300 is a compact, electronic pressure switch with integral digital display

Features:

  • Compact, robust construction
  • Accuracy ≤ ± 1 % FS
  • 3-digit digital display
  • Many useful additional functions
  • Easy to operate thanks to key programming
  • Four different output models are available
  • Also available with Schiff's approval
  • Switching points and switch-back hystereses can be adjusted independently
  • Window function

General Function:

The main applications of the EDS 300 are to indicate pressures and limits in hydraulics and pneumatics and anywhere where high switching frequency or constant switching accuracy would overburden a mechanical pressure switch. The unit is ideal for building accumulator charging circuits or pump and compressor controls.
