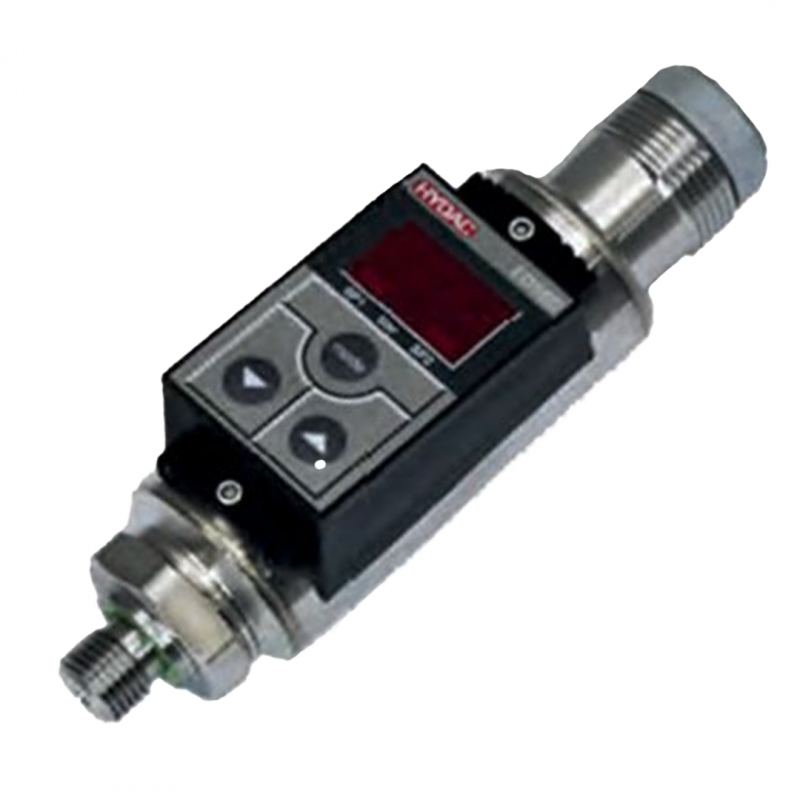

Hydac Electronic Pressure Switch EDS 300 with Approvals for Shipping

The HYDAC EDS 300 with shipping approvals is a compact, precision electronic pressure switch featuring a stainless steel strain gauge sensor and a clear digital display. Designed for marine and offshore environments, it meets stringent classification standards while offering advanced configurability for pressure monitoring and control in hydraulic and pneumatic systems.

Key Features:

  • Fluid temperature range: -25 .. +80 °C
  • Supply voltage: 20 .. 32 V DC
  • Reaction time: approx. 10 ms

Description
Downloads

HYDAC Electronic Pressure Switch Type EDS 300 with Approvals for Shipping

  • Fluid temperature range: -25 .. +80 °C
  • Supply voltage: 20 .. 32 V DC
  • Reaction time: approx. 10 ms
  • Current consumption: approx. 100 mA (inactive switch output)

The EDS 300 is a compact, electronic pressure switch with digital display. The pressure measurement is based on a strain gauge sensor cell in stainless steel

Accessories:

  • Electrical connectors
  • Mechanical adapters
  • Clamps for wall-mounting
  • Contact Hyquip for a full list of available accessories

Features:

  • Scale of the display range adjustable (bar or psi)
  • Switching direction of the relays adjustable (N/C or N/O function)
  • Switch-on and switch-off delay adjustable from 0.0 .. 75.0 seconds
  • Choice of display (actual pressure, peak value, switch point 1, switch point 2, display off)
  • Subsequent correction of zero point in the range ± 3 % FS possible
  • Special models on request

Approvals:

  • American Bureau of Shipping
  • Lloyds Register of Shipping
  • Det Norske Veritas
  • Germanischer Lloyd
  • Bureau Veritas
  • Other approvals on request
