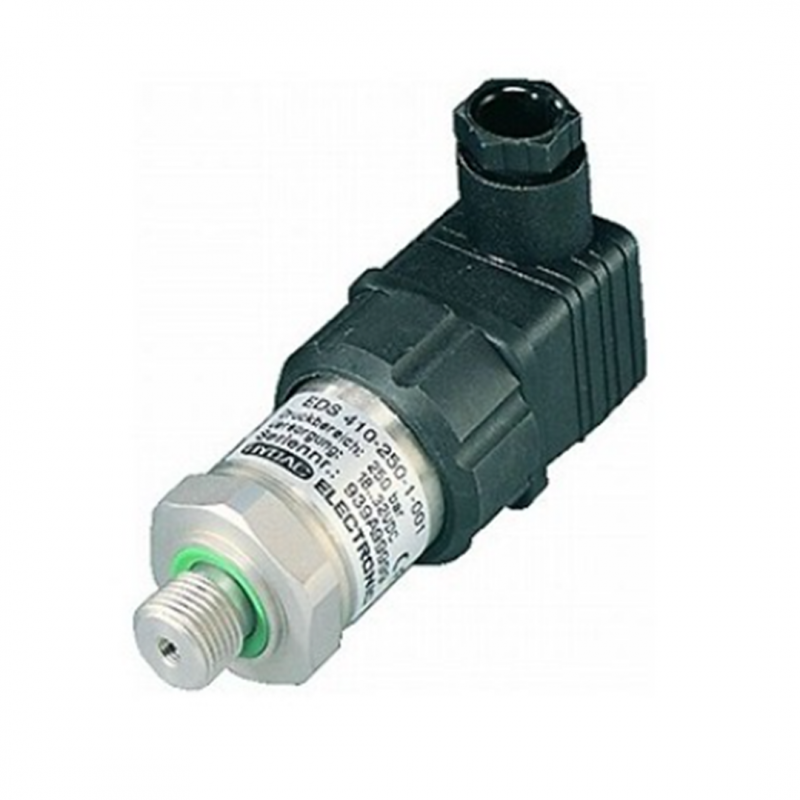

Hydac Electronic Pressure Switch EDS 410

The HYDAC EDS 410 is a compact, robust electronic pressure switch designed for high-volume OEM applications. Based on the EDS 4000 series, it offers factory-set switching points, excellent temperature stability, and strong EMC performance.

Key Features:

  • Torque value: 20 Nm
  • Compensated temperature range -25 .. +85 °C
  • Storage temperature range: -40 .. +100 °C
  • Supply voltage 8 .. 32 V DC

Description
Downloads

HYDAC Electronic Pressure Switch Type EDS 410

  • Torque value: 20 Nm
  • Compensated temperature range -25 .. +85 °C
  • Storage temperature range: -40 .. +100 °C
  • Supply voltage 8 .. 32 V DC

The electronic pressure switch EDS 410 has been specially developed for use in volume production machines, and is based on the EDS 4000 pressure switch series

Features:

  • 1 or 2 transistor switching outputs (PNP), either as N/C or N/O
  • Factory-set according to customer specification (not field-adjustable)
  • Accuracy ≤ ± 1 % FS
  • Highly robust sensor cell
  • Very small temperature error
  • Excellent EMC characteristics
  • Excellent durability

Various pressure ranges between 0 .. 1 bar and 0 .. 600 bar as well as different electrical and mechanical connection types are available
