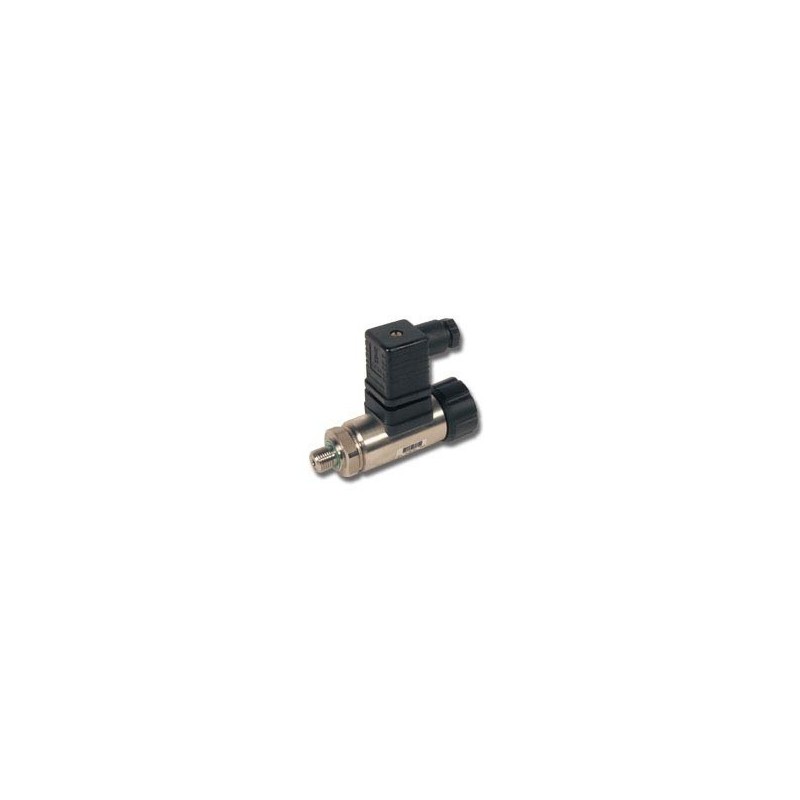

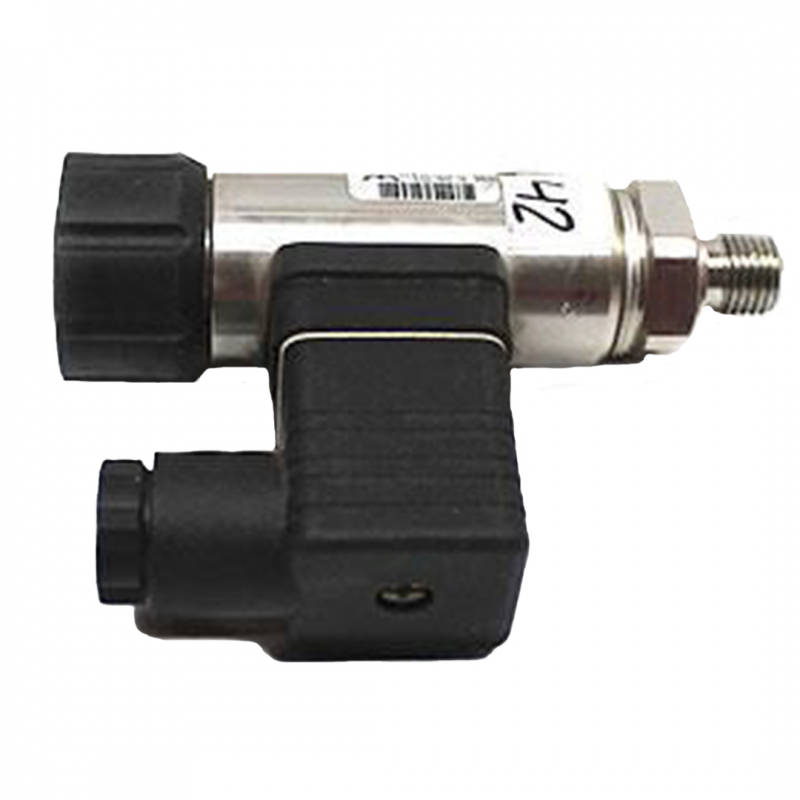

Hydac Electronic Pressure Switch EDS 505
The HYDAC EDS 505 is a compact, robust electronic pressure switch ideal for hydraulic applications. It features adjustable switching points, LED status indication, and high cycling resistance, with a wide fluid temperature range of -40 to +100 °C.
Key Features:
- Temperature range of fluid: -40 .. +100 °C
- Supply voltage: 12 .. 32 V DC
- Torque value: 20 Nm
Description
Downloads
HYDAC Electronic Pressure Switch Type EDS 505
- Temperature range of fluid: -40 .. +100 °C
- Supply voltage: 12 .. 32 V DC
- Torque value: 20 Nm
- Material of housing: Stainless steel
The compact construction of the EDS 505 electronic pressure switch makes it ideal for intergrating into control designs of machines and systems.
Based on a strain gauge pressure measurement cell which is well-established in rugged applications in hydraulics due to its robustness, the unit can adjust, via a potentiometer, the position of a switch point and swith-back point via the hysteresis depending on the switching point
Special features:
- compact, robust construction
- LED indicates switch activation
- High cycling resistance
- Possible to adjust the switching point and switch-back point when pressurised and de-pressurised
