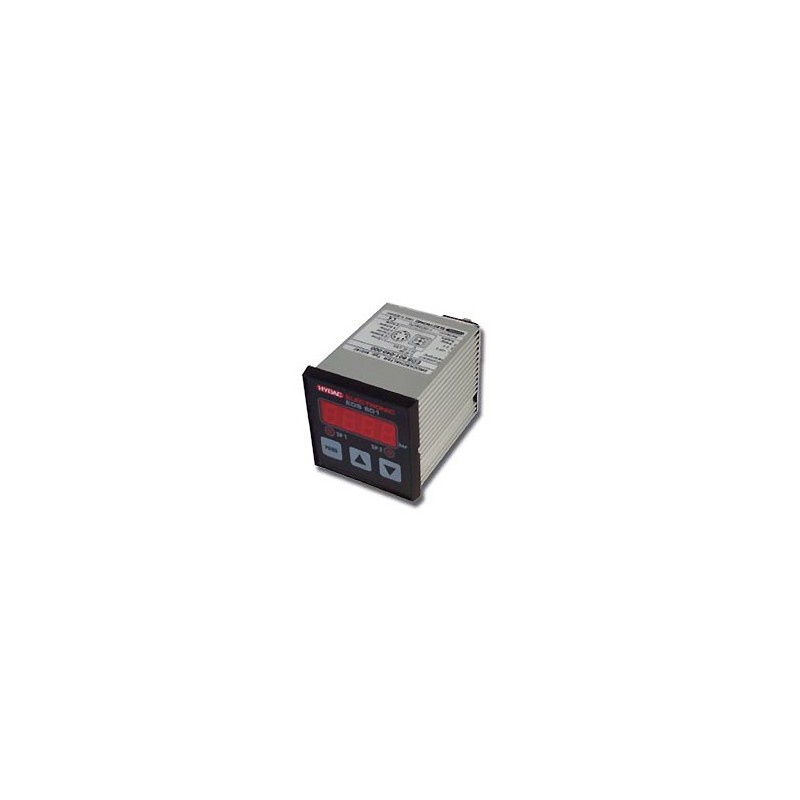

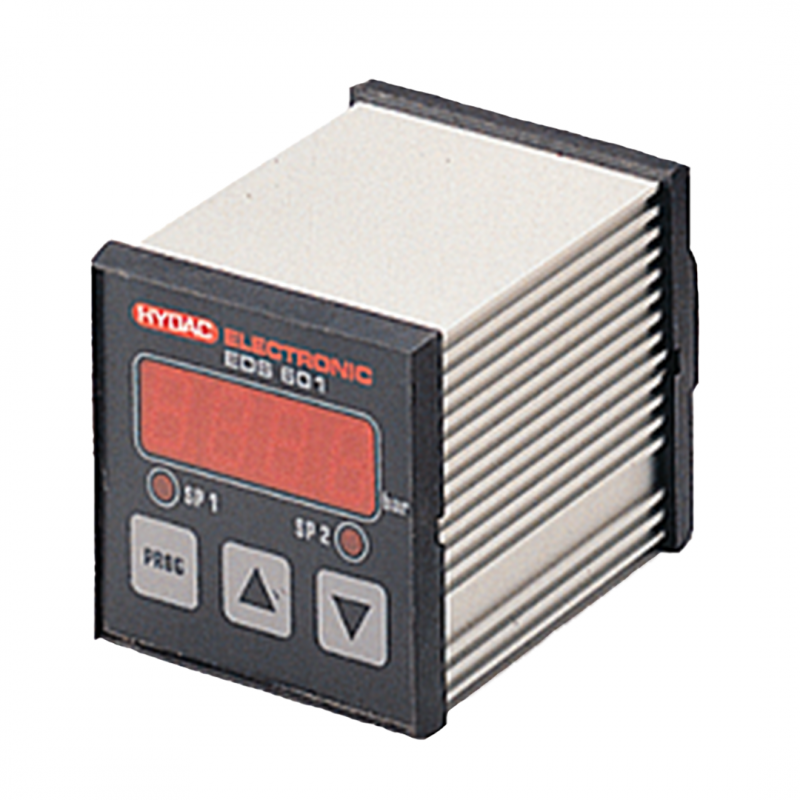

Hydac Electronic Pressure Switch EDS 601
The HYDAC EDS 601 is a versatile two-channel electronic pressure switch with a 4-digit LED display and selectable analog output (4–20 mA or 0–10 V). With digitally adjustable parameters and high accuracy (≤ ±1% FS), it’s ideal for dynamic control tasks in hydraulics, pneumatics, and process control.
Key Features:
- Fluid temperature range -25 .. +80 °C
- Supply voltage 20 .. 32 V DC
- Housing material aluminium, anodised
- Torque value 20 Nm
HYDAC Electronic Pressure Switch Type EDS 601
- Fluid temperature range -25 .. +80 °C
- Supply voltage 20 .. 32 V DC
- Housing material aluminium, anodised
- Torque value 20 Nm
Features:
- Two-channel pressure switch with change-over contacts
- Accuracy ≤ ± 1 % FS
- 4-digit LED display
- Signal output 4 .. 20 mA or 0 .. 10 V selectable
- Can be installed as a pressure gauge or as a front panel mounted unit
- Digitally adjustable parameters
- Optional permanent display of the switching point or of the pressure peak value
- Can be set to display values in any unit of measurement e.g.: kN, kg, psi, ...
General Function:
The EDS 601 is an electronic twoway pressure switch with display and analogue output. Its digitally adjustable switching points and switching hystereses, make it ideally suited to applications which require frequent change-overs or accurate switch point setting. The variety of setting parameters ensures versatility for use in all control and monitoring tasks in hydraulics, pneumatics, process control and general test and control technology.
