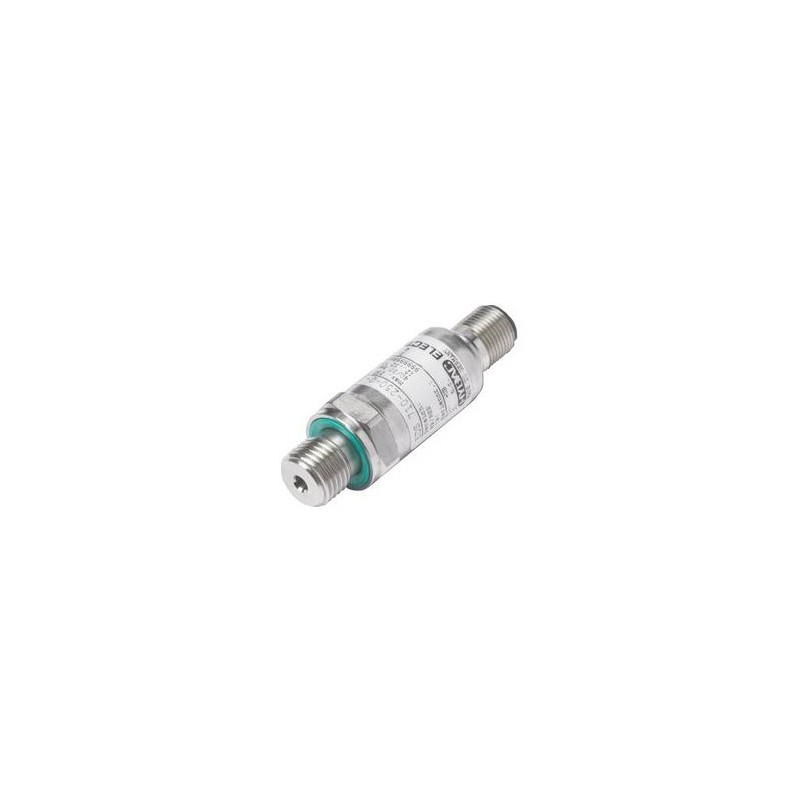

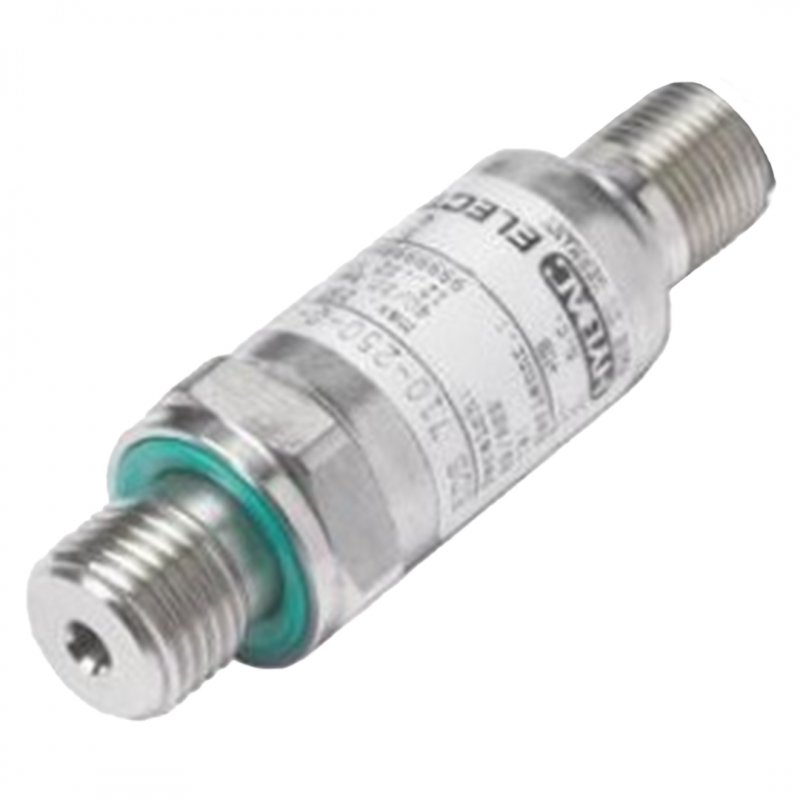

Hydac Electronic Pressure Switch EDS 710
The HYDAC EDS 710 pressure switch offers accurate measurement up to 600 bar with minimal temperature error. Its compact, robust design and factory-set PNP output (N/O or N/C) ensure reliable performance in demanding industrial applications.
Key Features:
- Measuring ranges: 16; 60; 100; 250; 400; 600 bar
- Compensated temperature range -25 .. +85 °C
- Mechanical connection: G1/4 A DIN 3852
- Supply voltage 10 .. 30 V DC
- Torque value: 20 Nm
HYDAC Electronic Pressure Switch Type EDS 710
- Measuring ranges: 16; 60; 100; 250; 400; 600 bar
- Compensated temperature range -25 .. +85 °C
- Mechanical connection: G1/4 A DIN 3852
- Supply voltage 10 .. 30 V DC
- Torque value: 20 Nm
Features:
- 1 transistor switch output (PNP), either as N/C or N/O
- Factory-set according to customer specification (not field-adjustable)
- Accuracy ≤ ± 1 % FS
- Highly robust sensor cell
- Highly compact design
- Very small temperature error
General Function:
The electronic pressure switch EDS 710 has been specially developed for use in large volume production machines. The highly compact unit has a very robust pressure sensor with thin-film strain gauge on a stainless steel membrane. The EDS 710 is available with 1 transistor switching output (PNP) which can be defined either as N/C or N/O. Switching and switch-back points of the EDS 710 are factory-set according to customer specification (not field-adjustable). Various pressure ranges between 0 .. 16 bar
