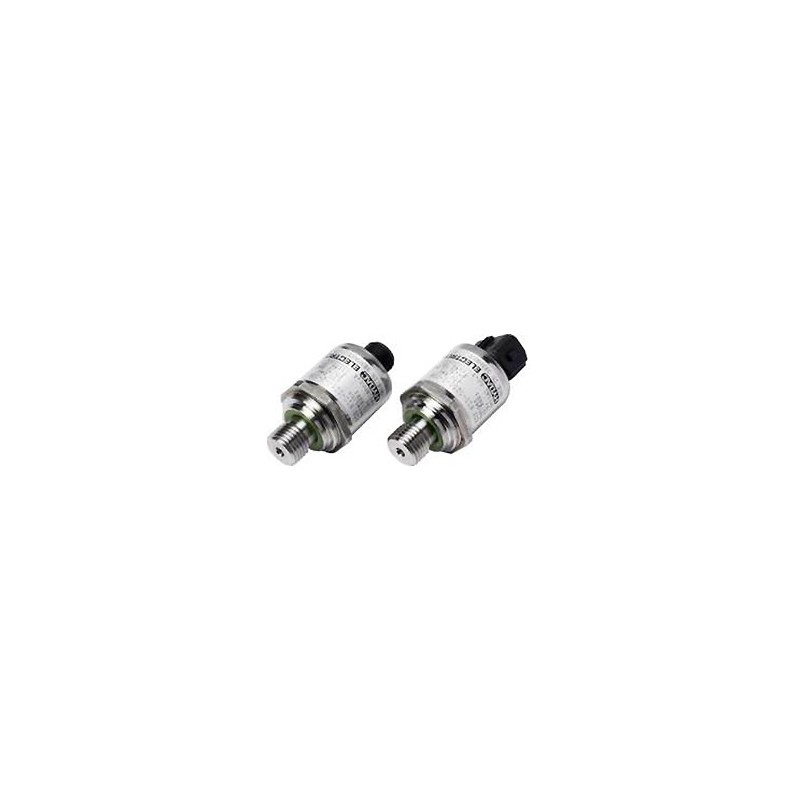

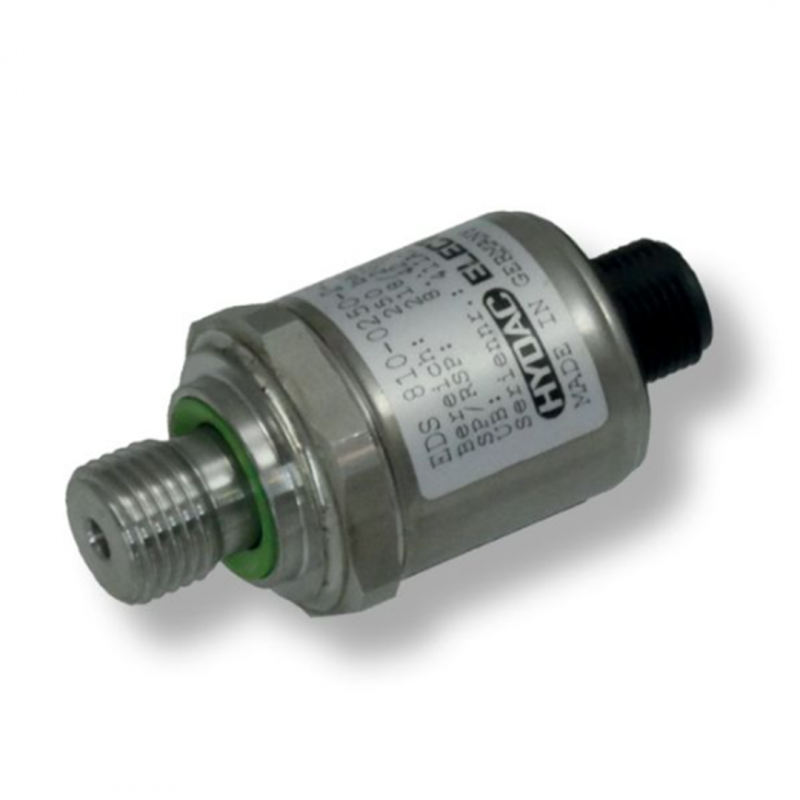

Hydac Electronic Pressure Switch EDS 810
The HYDAC EDS 810 pressure switch delivers accurate measurement up to 600 bar with minimal temperature and EMC effects. Its compact, robust design and factory-set N/O or N/C output ensure reliable performance for industrial and vehicle applications.
Key Features:
- Measuring ranges: 40; 60; 100; 160; 250; 400; 600 bar
- Compensated temperature range -25 .. +85 °C
- Compact, robust stainless steel sensor

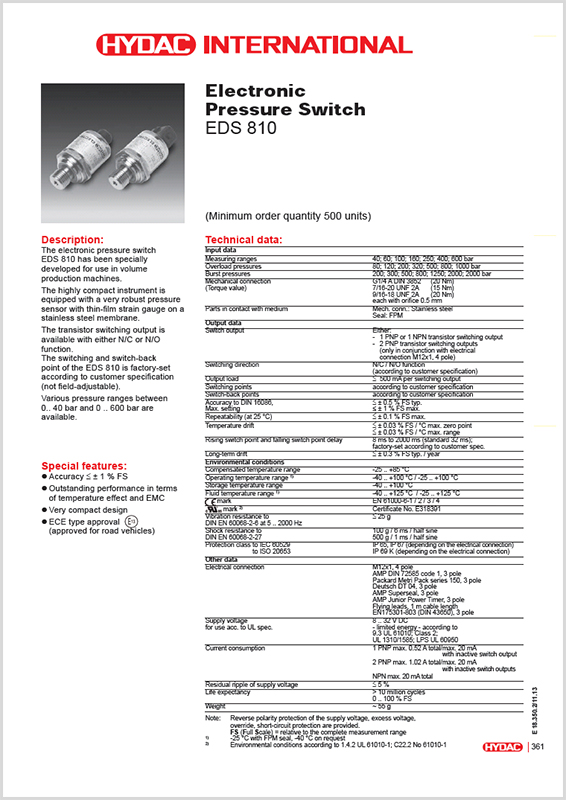

HYDAC Electronic Pressure Switch Type EDS 810
- Measuring ranges: 40; 60; 100; 160; 250; 400; 600 bar
- Compensated temperature range -25 .. +85 °C
Features:
- Accuracy ≤ ± 1 % FS
- Outstanding performance in terms of temperature effect and EMC
- Very compact design
- The transistor switching output is available with either N/C or N/O function
- ECE type approval (approved for road vehicles)
General Function:
The electronic pressure switch EDS 810 has been specially developed for use in volume production machines.
The highly compact instrument is equipped with a very robust pressure sensor with thin-film strain gauge on a stainless steel membrane.
The transistor switching output is available with either N/C or N/O function. The switching and switch-back point of the EDS 810 is factory-set according to customer specification (not field-adjustable). Various pressure ranges between 0.. 40 bar and 0 .. 600 bar are available.
