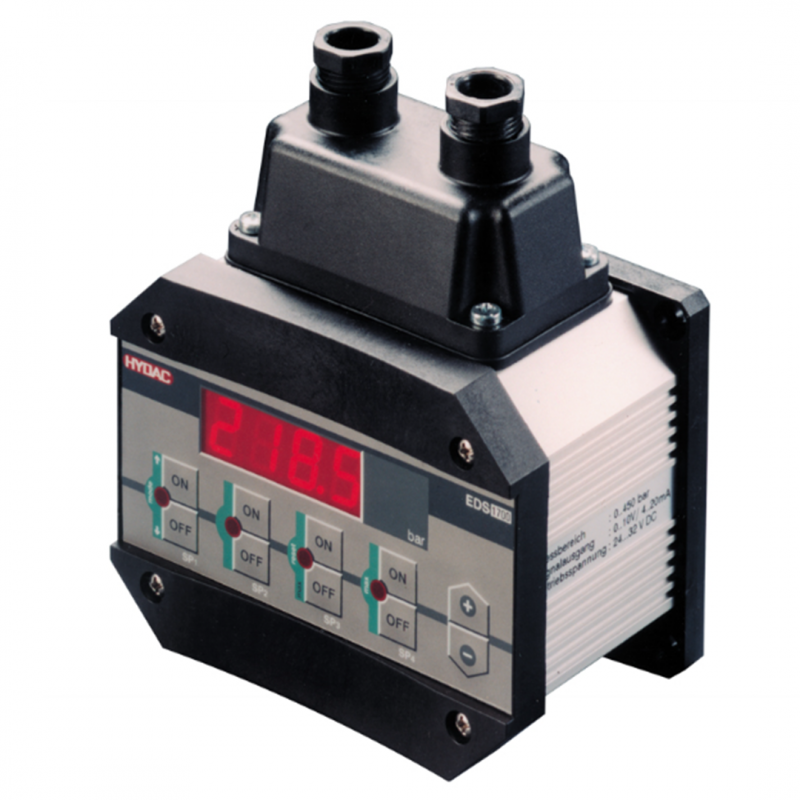

Hydac Electronic Pressure Switch EDS 1700

The HYDAC EDS 1700 electronic pressure switch, used in hydraulics and pneumatics, features an integrated pressure sensor, a 4-digit display, and four independently adjustable switching outputs for precise pressure monitoring. It allows easy configuration via a keypad, supports multiple units of measurement, and is designed for frequent switching cycles with high accuracy.

Key Features:

  • Measuring ranges: 16; 40; 100; 250; 400; 600 bar
  • Compensated temperature range: -10 .. +70 °C
  • Operating temperature range: -25 .. +60 °C
  • Storage temperature range: -25 .. +60 °C

Print page

Description
Downloads
Hydac Electronic Pressure Switch EDS 1700

HYDAC Electronic Pressure Switch Type EDS 1700

  • Measuring ranges: 16; 40; 100; 250; 400; 600 bar
  • Compensated temperature range: -10 .. +70 °C
  • Operating temperature range: -25 .. +60 °C
  • Storage temperature range: -25 .. +60 °C

The EDS 1700 with its integrated pressure measuring cell, 4-digit display and 4 switching outputs, offers the user all the advantages of a modern electronic pressure switch

The main applications of the EDS 1700 are in hydraulics and pneumatics. The instrument is ideal for use where frequent switching cycles (several million) require permanent switching point accuracy or simple and precise adjustment

Special Features:

  • Integrated pressure sensor with strain gauge on stainless steel membrane
  • Accuracy 0.5 % or 1 % FS
  • 4-digit display
  • Simple operation via key programming
  • 4 limit relays, switching points and switch back points can be adjusted independently
  • Analogue output signal selectable
  • Many useful additional functions
  • Optional mounting position (pressure connection on the top/ bottom, keypad and display can be turned through 180°)
  • Can be set to display values in any unit of measurement e.g.: kN, kg, psi, ...

General Function:

With its integrated pressure measurement cell, 4-digit display and 4 switching outputs, the EDS 1700 offers the user all the advantages of a modern electronic pressure switch. 4 switching points and switch-back points can be adjusted very simply and independently of one another using the keypad.
