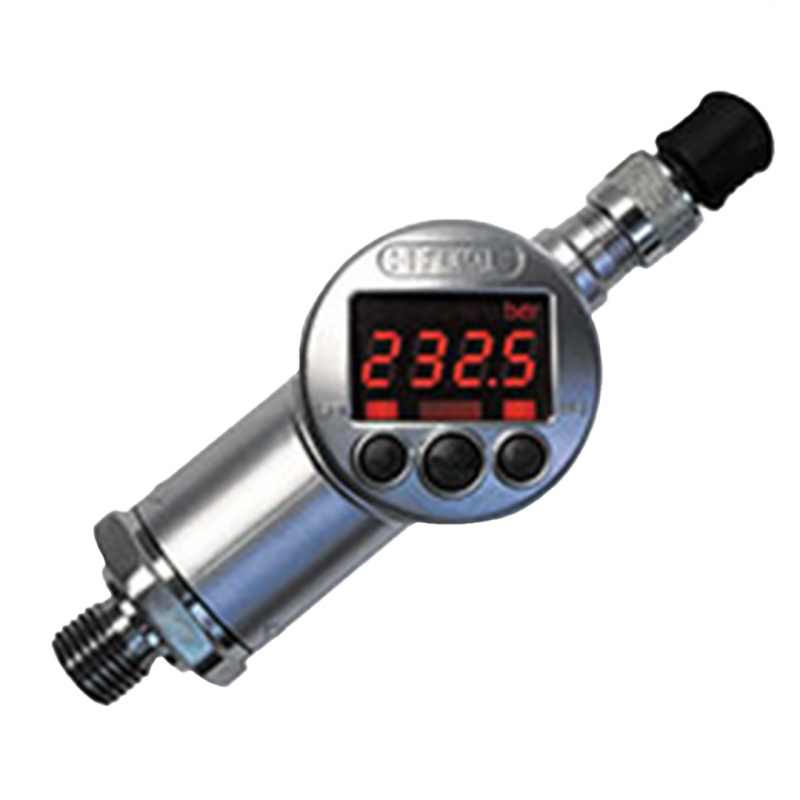

Hydac Electronic Pressure Switch EDS 3100

New

Electronic pressure switches type EDS 3100

  • Compensated temperature range -10 .. +70 °C
  • Operating temperature range -25 .. +80 °C (-25 .. +60 °C acc. to UL spec.)
  • Storage temperature range -40 .. +80 °C
  • Fluid temperature range -25 .. +80 °C

More details

Download Data Sheet Hydac Electronic Pressure Switch Type EDS 3100

Hydac Electronic Pressure Switch Type EDS 3100

  • Compensated temperature range -10 .. +70 °C
  • Operating temperature range -25 .. +80 °C (-25 .. +60 °C acc. to UL spec.)
  • Storage temperature range -40 .. +80 °C
  • Fluid temperature range -25 .. +80 °C

Special features:

  • 1 or 2 PNP transistor switch outputs, up to 1.2 A load per output
  • Accuracy ±1% FS
  • Optional reversible analogue output (4 ... 20 mA / 0 ... 10V)
  • 4-character digital display
  • Capable of optimum alignment through rotational capability in two axes
  • Selection of value display in bar, psi or MPa
  • Simple handling through key programming
  • Switching points and reset hysteresis can be adjusted independently of one another
  • Many helpful additional functions
  • Option of terminal assignment with diagnostics function in conformance with DESINA®
  • Optional with menu navigation in accordance with VDMA (unit sheet VDMA 24574-1)

Accessories:

Appropriate accessories, such as electrical connectors, mechanical adapters, splash guards, clamps for wall-mounting etc can be purchased

General Function:

The EDS 3100 is a compact electronic pressure switch with digital display for absolute pressure measurement in the low pressure range.
It has a ceramic measuring cell with thick-film strain gauge. The instrument can have one or two switching outputs, and there is the option of an additional analogue output signal (4 .. 20 mA or 0 .. 10 V)
A special design feature of the EDS 3100 is that the display can be rotated in two planes. The instrument can be installed in almost any mounting position and the display can be turned to the optimum position without the usual additional expense of a mechanical adapter.
