Hydac Electronic Pressure Switch EDS 3100 - with Menu Navigation to VDMA

Hydac Electronic Pressure Switch Type EDS 3100 - with Menu Navigation to VDMA

• Compensated temperature range -10 .. +70 °C
• Operating temperature range -25 .. +80 °C
• Storage temperature range -40 .. +80 °C
• Fluid temperature range -25 .. +80 °C

Features:

• Menu navigation according to VDMA
• Optional analogue output selectable (4 .. 20 mA / 0 .. 10 V)
• Optimum alignment - can be rotated in two planes (axes)
• Measured value can be displayed in bar, psi or MPa
• Easy operation due to key programming
• Switching points and switch-back hystereses can be adjusted independently
• Many useful additional functions
• IO Link Interface
• 1 PNP transistor switching output
• Additional signal output, can be configured as PNP transistor switching output or analogue output
• Accuracy ≤ ± 1 % FS
• 4-digit digital display

General Function:

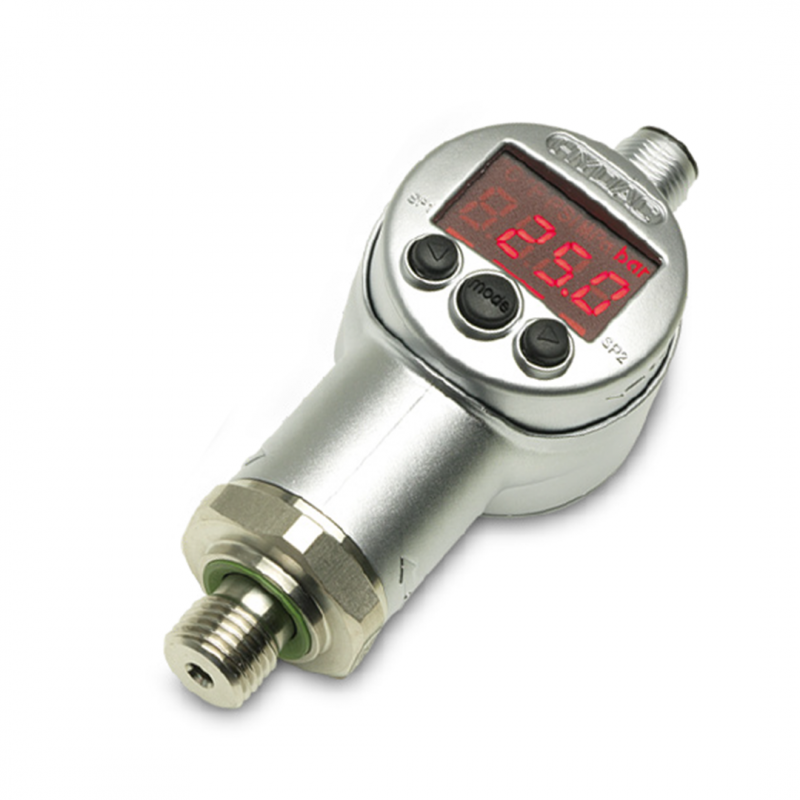

The EDS 3100 is a compact electronic pressure switch with digital display for absolute pressure measurement in the low pressure range.
It has a ceramic measuring cell with thick-film strain gauge. The instrument can have one or two switching outputs, and there is the option of an additional analogue output signal (4 .. 20 mA or 0 .. 10 V)

The main applications of the EDS 3100 are primarily in hydraulics and pneumatics, as well as in refrigeration and air conditioning technology
