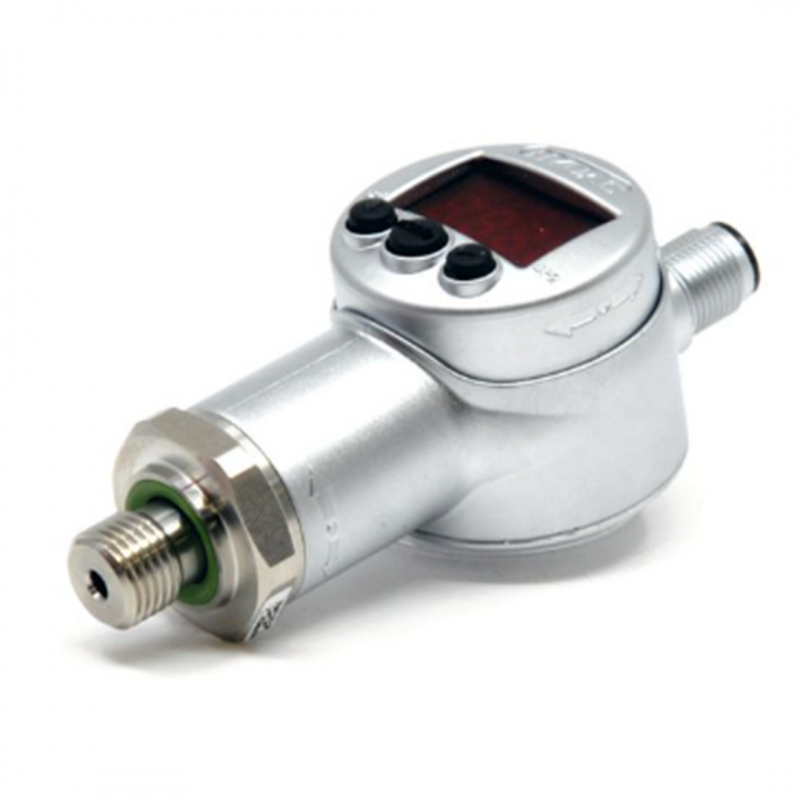

Hydac Electronic Pressure Switch EDS 3300 - with Flush Membrane
The HYDAC EDS 3300 with flush membrane is a compact electronic pressure switch with a rotatable 4-digit display, ±1% FS accuracy, and 1–2 PNP outputs. Its flush membrane prevents clogging, and it offers optional analogue output and independent switching adjustment for reliable low-pressure measurement in challenging media.
Key Features:
- Compensated temperature range: -10 .. +70 °C, -10 .. +60 °C for UL spec
- Operating temperature range: -25 .. +80 °C, -25 .. +60 °C for UL spec
- Storage temperature range: -40 .. +80 °C
HYDAC Electronic Pressure Switch Type EDS 3300 - with Flush Membrane
- Compensated temperature range: -10 .. +70 °C, -10 .. +60 °C for UL spec
- Operating temperature range: -25 .. +80 °C, -25 .. +60 °C for UL spec
- Storage temperature range: -40 .. +80 °C
Features:
- Pressure connection has a flush membrane
- 1 or 2 PNP transistor switching out-puts, up to 1.2 A load per output
- Accuracy ≤ 1% FS
- Optional analogue output selectable (4 .. 20 mA / 0 .. 10 V)
- 4-digit display
- Optimum alignment - can be rotated in two planes (axes)
- Measured value can be displayed in bar, psi or MPa
- Easy operation due to key programming
- Switching points and switch-back hystereses can be adjusted independently
- Many useful additional functions
- Option of Desina®-compliant pin configuration with diagnostic function
General Function:
The electronic pressure switch EDS 3300 with a flush membrane was designed specifically for applications in which a standard pressure connection could become blocked, clogged or frozen by the particular medium used. Like the standard model, the EDS 3300 with flush membrane has a ceramic measurement cell with a thick film strain gauge for relative pressure measurement in a low pressure range
Depending on the type, the instrument can have up to 2 switching outputs and a switchable analogue output (4 .. 20 mA or 0 .. 10 V)
