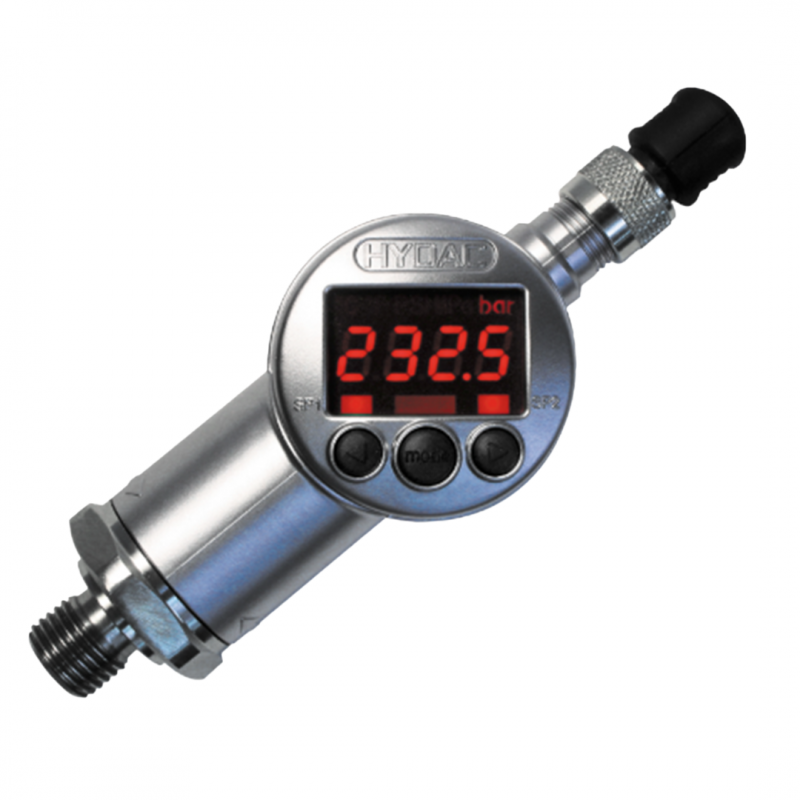

Hydac Electronic Pressure Switch EDS 3400
The HYDAC EDS 3400 is a compact electronic pressure switch with a rotatable 4-digit display, ±1% FS accuracy, and 1–2 PNP outputs. Designed for high-pressure measurement, it offers optional analogue output and independent switching adjustment for flexible and reliable operation.
Key Features:
- Compensated temperature range: -10 .. +70 °C
- Operating temperature range: -25 .. +80 °C (-25 .. +60 °C acc. to UL spec.)
- Storage temperature range: -40 .. +80 °C
- Fluid temperature range: -25 .. +80 °C
HYDAC Electronic Pressure Switch Type EDS 3400
- Compensated temperature range: -10 .. +70 °C
- Operating temperature range: -25 .. +80 °C (-25 .. +60 °C acc. to UL spec.)
- Storage temperature range: -40 .. +80 °C
- Fluid temperature range: -25 .. +80 °C
Features:
- 1 or 2 PNP transistor switching outputs, up to 1.2 A load per output
- Accuracy ≤ ± 1 % FS
- Optional analogue output selectable (4 .. 20 mA / 0 .. 10 V)
- 4-digit display
- Optimum alignment - can be rotated in two planes (axes)
- Measured value can be displayed in bar, psi or MPa
- Easy operation due to key programming
- Switching points and switch-back hystereses can be adjusted independently
- Many useful additional functions
- Option of Desina®-compliant pin configuration with diagnostic function
General Function:
The EDS 3400 is a compact electronic pressure switch with integrated digital display for relative pressure measurement in the high-pressure range.
The instrument can have one or two switching outputs and there is the option of an additional switchable analogue output signal (4 .. 20 mA or 0 .. 10 V)
A special feature of the EDS 3400 is the option of rotating the display in 2 axes. The device can be optimally aligned in practically any random installation position, which means that additional costs for the mechanical alignment adapter which is usually required are dispensed with.
