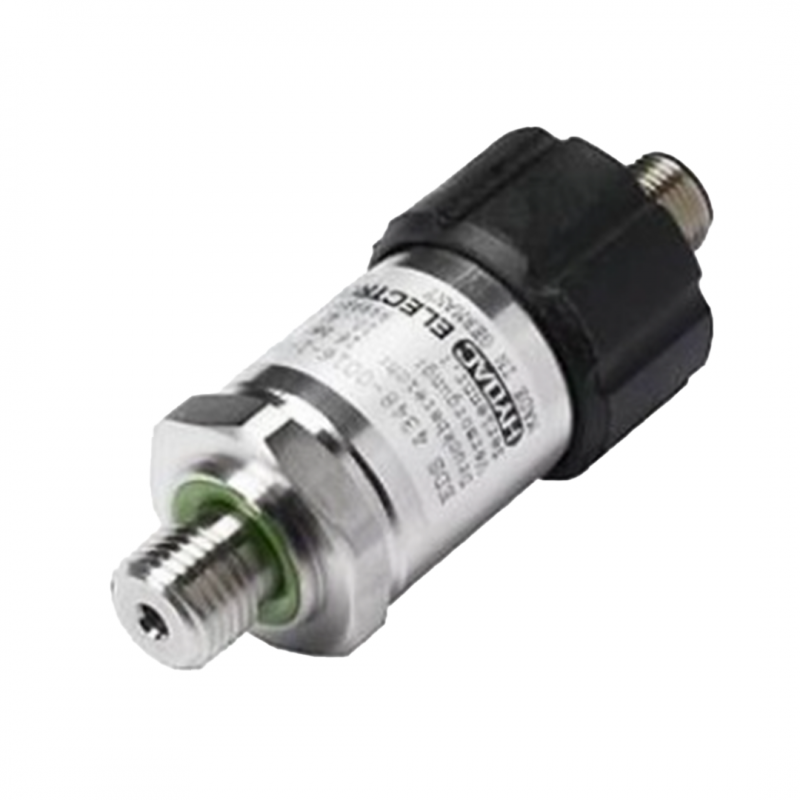

Hydac Electronic Pressure Switch EDS 4300 - Programmable

The HYDAC EDS 4300 is a compact, programmable electronic pressure switch designed for flexibility and durability. It offers 1 or 2 PNP/NPN switching outputs, high accuracy (≤ ±1% FS), and customizable settings such as switching points, hysteresis, and delay times ideal for precise, cost-effective pressure control.

Key Features:

  • Compensated temperature range: -25 .. +85 °C
  • Operating temperature range: -25 .. +85 °C
  • Storage temperature range: -40 .. +100 °C
  • Fluid temperature range¹): -40 .. +100 °C / -25 .. +100 °C

Description
Downloads

HYDAC Electronic Pressure Switch Type EDS 4300 - Programmable

  • Compensated temperature range: -25 .. +85 °C
  • Operating temperature range: -25 .. +85 °C
  • Storage temperature range: -40 .. +100 °C
  • Fluid temperature range¹): -40 .. +100 °C / -25 .. +100 °C

¹) -25 °C with FPM or EPDM seal, -40 °C on request

The following parameters can be changed:

  • Switching point
  • Hysteresis
  • Switching direction (N/O / N/C)
  • Switching delay times

Special features:

  • Option of 1 or 2 switching outputs
  • Option of PNP or NPN switching outputs
  • High switching output capacity
  • Accuracy ≤ ± 1 % FS
  • Individual programming
  • Compact and robust design
  • Also available in ATEX version for potentially explosive locations

General Function:

The programmable electronic pressure switch in the EDS 4300 series has been specially developed to combine the advantages of a compact, robust and cost-effective instrument with the benefits of a programmable pressure switch

The EDS 4300 can be easily programmed using the HPG 3000 programming unit. Once the programming unit is disconnected from the EDS 4300, the pressure switch retains all the settings. This prevents unauthorised adjustment of the settings
