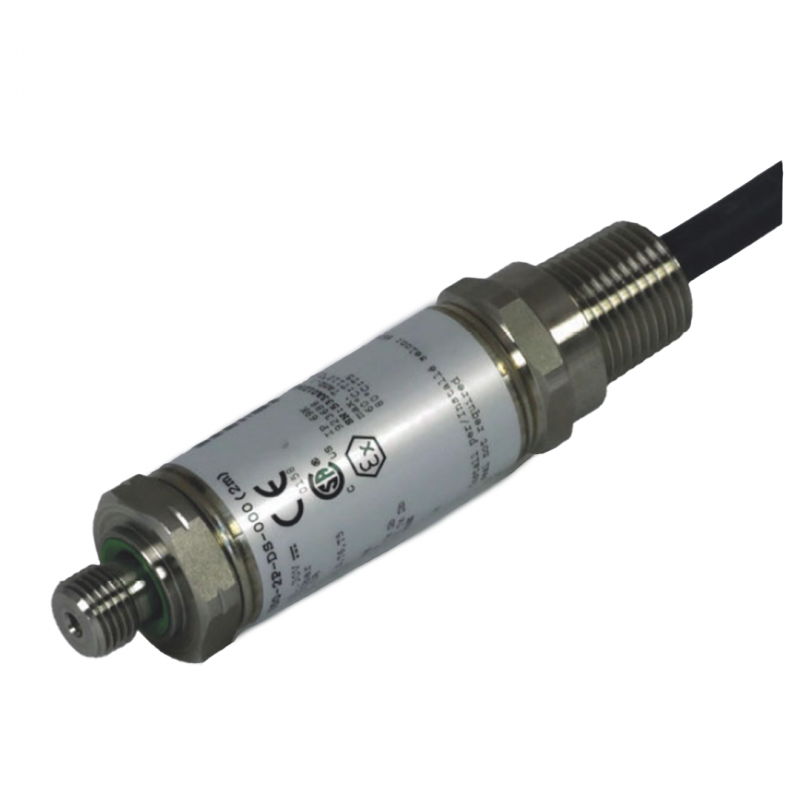

Hydac Electronic Pressure Switch EDS 4400 Programmable - ATEX, CSA, IECEx - Flameproof Enclosure

The HYDAC EDS 4400 with flameproof enclosure is a programmable pressure switch approved for ATEX, CSA, and IECEx, ideal for global use in explosive environments. It offers high accuracy, robust stainless steel design, and easy programming via the HPG 3000 unit.

Key Features:

  • Measuring ranges: 6; 16; 40; 60; 100; 250; 400; 600; 1000 bar
  • Overload pressures: 15; 32; 80; 120; 200; 500; 800; 1000; 1600 bar
  • Burst pressure: 100; 200; 200; 300; 500; 1000; 2000; 2000; 3000 bar
  • Voltage supply: 12 .. 30 V DC

Print page

Description
Downloads
Hydac Electronic Pressure Switch EDS 4400 Programmable - ATEX, CSA, IECEx - Flameproof Enclosure

HYDAC Electronic Pressure Switch Type EDS 4400 Programmable - ATEX, CSA, IECEx - Flameproof Enclosure

  • Measuring ranges: 6; 16; 40; 60; 100; 250; 400; 600; 1000 bar
  • Overload pressures: 15; 32; 80; 120; 200; 500; 800; 1000; 1600 bar
  • Burst pressure: 100; 200; 200; 300; 500; 1000; 2000; 2000; 3000 bar
  • Voltage supply: 12 .. 30 V DC

Special features:

  • Accuracy ≤ ± 1.0 % FS
  • Certificates:
    - ATEX KEMA 10ATEX100 X
    - CSA MC 224264
    - IECEx KEM 10.0053X
  • Robust design
  • Very small temperature error
  • Excellent EMC characteristics
  • Excellent durability

General Function:

The programmable electronic pressure switch EDS 4400 with flameproof enclosure has triple approval according to ATEX, CSA and IECEx which ensures the instrument is universally suitable for use in potentially explosive environments around the world

As with the industrial version of the EDS 4400, those with triple approval have a proven, fully-welded stainless steel measurement cell with thin film strain gauge without internal seals

The instrument is programmed conveniently and simply using the HPG 3000 HYDAC programming unit
