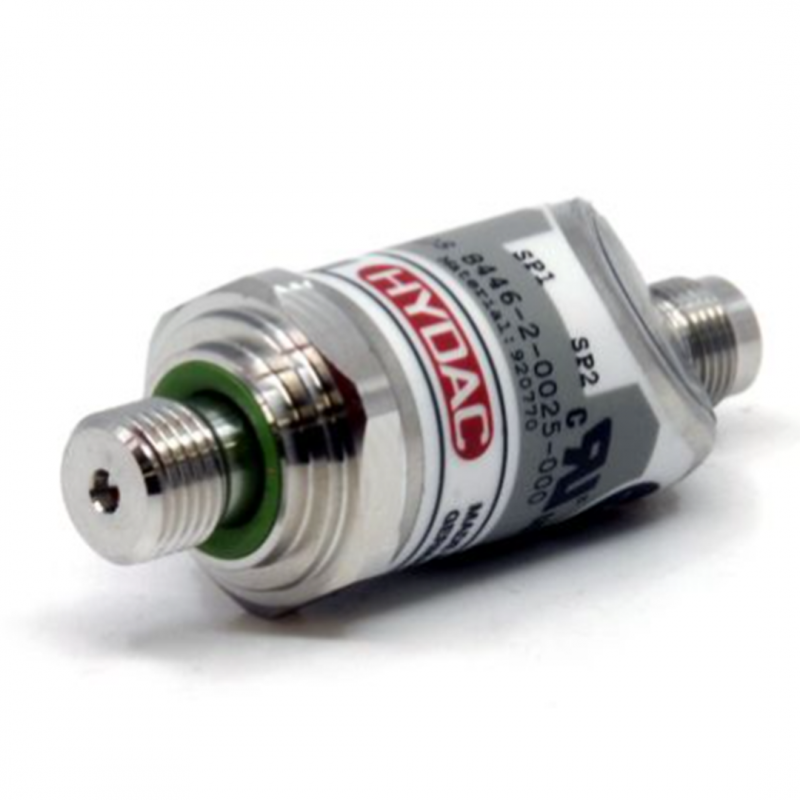

Hydac Electronic Pressure Switch EDS 8000

The HYDAC EDS 8000 is a compact, programmable electronic pressure switch with a 4-digit multi-color display and up to two PNP outputs. It features a robust stainless steel sensor, high accuracy, and intuitive VDMA-based menu navigation—ideal for hydraulic and pneumatic systems.

Key Features:

  • Measurement range: 25; 40; 100; 250; 400; 600 bar
  • Overload pressures: 80; 80; 200; 500; 800; 1000 bar
  • Burst pressures: 200; 200; 500; 1000; 2000; 2000 bar

Print page

Description
Downloads
Hydac Electronic Pressure Switch EDS 8000

HYDAC Electronic Pressure Switch Type EDS 8000

  • Measurement range: 25; 40; 100; 250; 400; 600 bar
  • Overload pressures: 80; 80; 200; 500; 800; 1000 bar
  • Burst pressures: 200; 200; 500; 1000; 2000; 2000 bar
  • Mechanical connection: G¼ A DIN 3852; Form E
  • Torque value: 20 Nm

Special features:

  • Menu navigation according to VDMA
  • 1 or 2 PNP transistor switching outputs
  • Robust stainless steel measurement cell
  • Accuracy class ≤ ± 1 % FS
  • 4-digit display
  • Multi-colour switch display
  • Protection class IP 67
  • Simple operation with key programming
  • Many useful additional functions*
  • Pressure can be displayed in bar, psi, MPa

Accessories:

  • Appropriate accessories, such as electrical connectors, mechanical adapters, etc, can be aquired direct from our expert sales team

General Function:

EDS 8000 is an electronic pressure switch in compact design which is simple to adjust.
Models with one or two transistor switch outputs (PNP or NPN) are available

The main applications of the EDS 8000 are to indicate pressures and limits in hydraulics and pneumatics, or any application where high switching frequency or consistent switching accuracy would overburden a mechanical pressure switch
