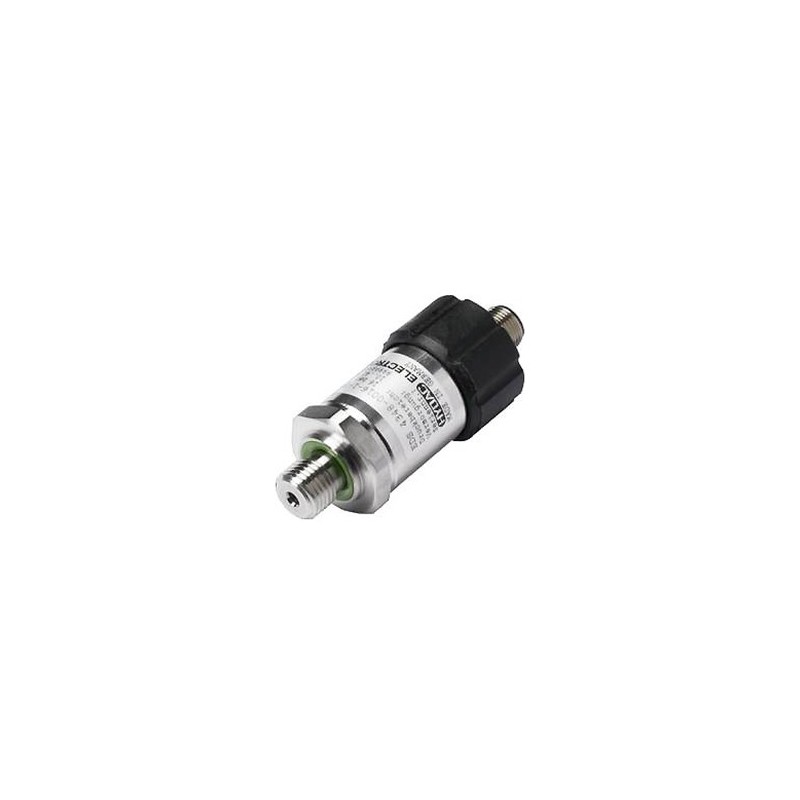

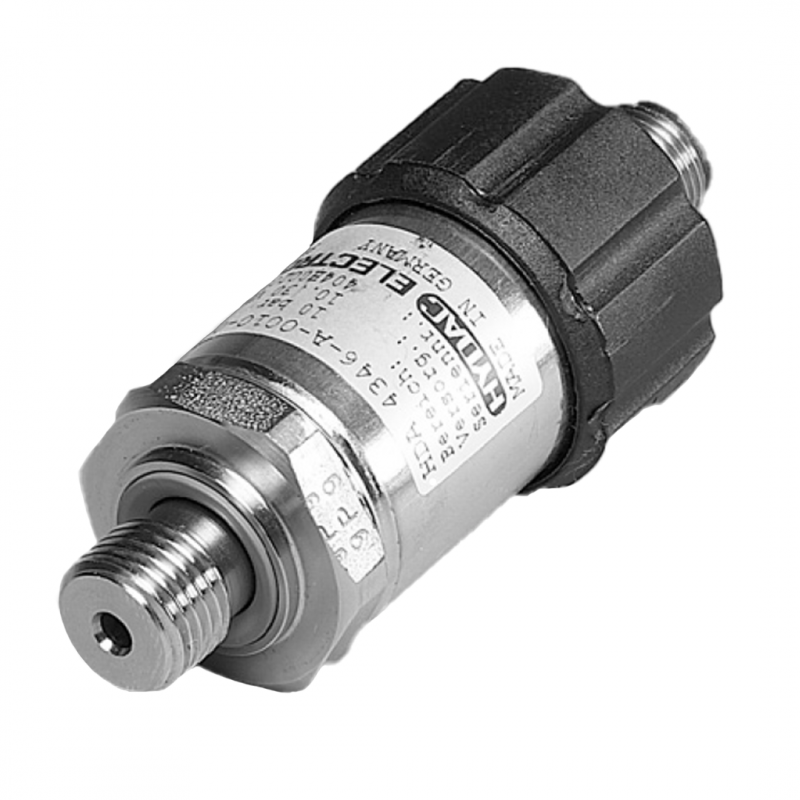

Hydac Pressure Transmitter HDA 4300
The HYDAC HDA 4300 Pressure Transmitter is a compact, high-accuracy sensor designed for low-pressure measurement in applications such as refrigeration, air conditioning, and the food and pharmaceutical industries. With a ceramic measurement cell and robust EMC performance, it ensures reliable monitoring even in demanding environments.
Key Features:
- High measurement accuracy (≤ ±0.5% FS) with minimal temperature error
- Compact design with excellent electromagnetic compatibility (EMC)
- Compatible with 4–20 mA or 0–10 V outputs for seamless system integration

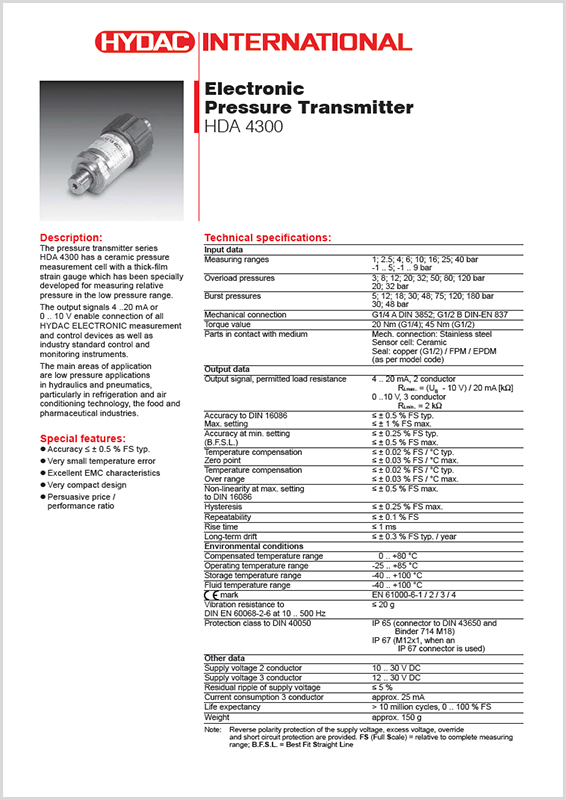

HYDAC Pressure Transmitter HDA 4300
The pressure transmitter series HDA 4300 has a ceramic pressure measurement cell with a thick-film strain gauge which has been specially developed for measuring relative pressure in the low pressure range.
The output signals 4 ..20 mA or 0 .. 10 V enable connection of all HYDAC ELECTRONIC measurement and control devices as well as industry standard control and monitoring instruments.
The main areas of application are low pressure applications in hydraulics and pneumatics, particularly in refrigeration and air conditioning technology, the food and pharmaceutical industries.
Special features:
- Accuracy ≤ ± 0.5 % FS typ
- Very small temperature error
- Excellent EMC characteristics
- Very compact design
- Persuasive price /
performance ratio
