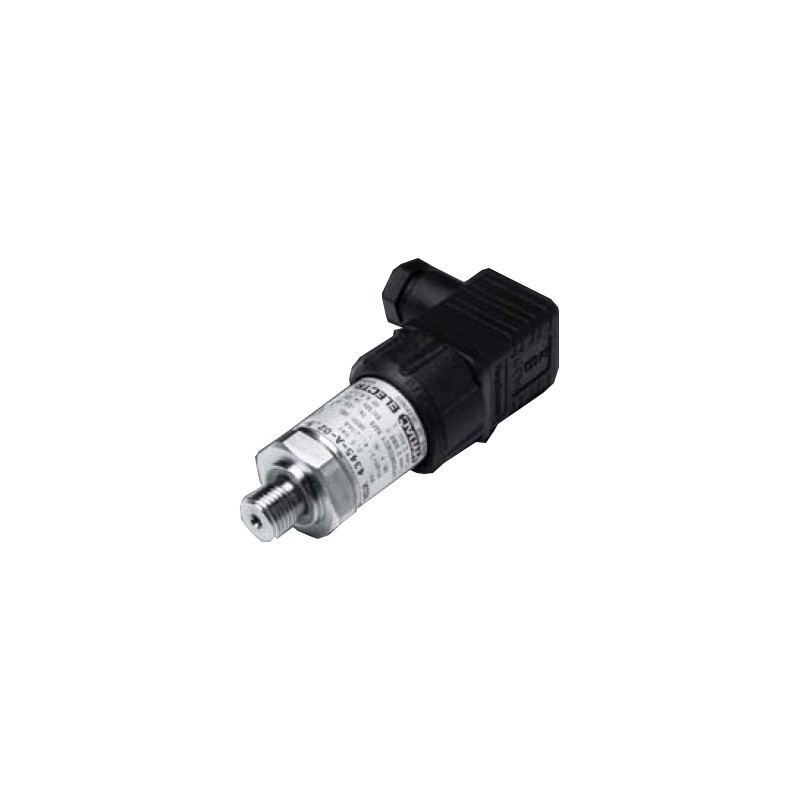

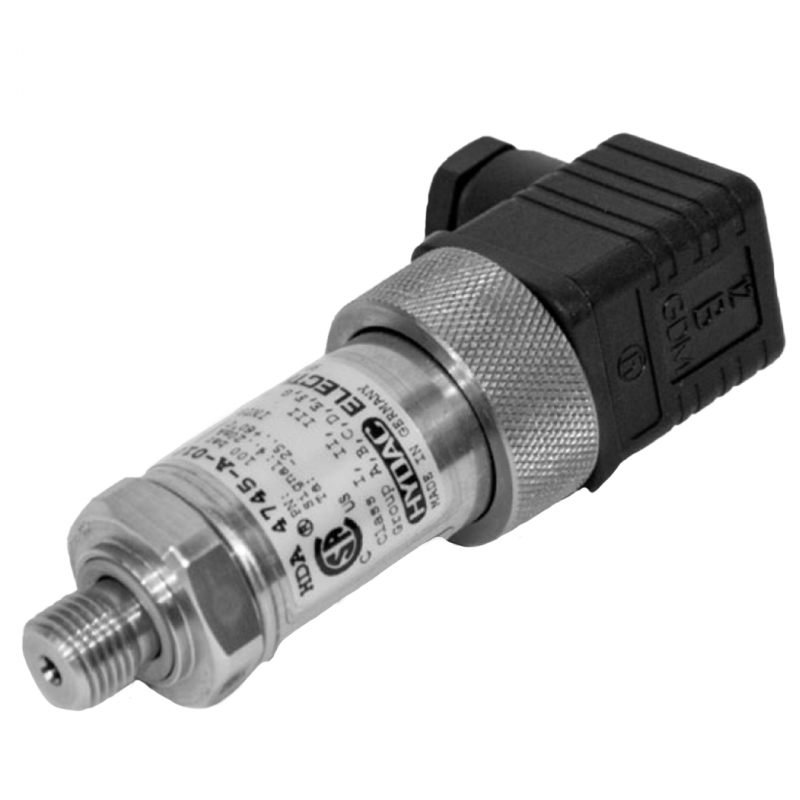

Hydac Electronic Pressure Transmitter HDA 4300 - CSA Intrinsically safe - CSA Non Incendive
The HYDAC HDA 4300 pressure transmitter (CSA version) is engineered for hazardous locations in North America, where explosive gases or dust may be present. Built on the proven HDA 4000 platform, it features a rugged ceramic sensor for reliable low-pressure monitoring in demanding applications such as oil and gas, turbines, and dusty industrial settings.
Key Features:
- CSA-certified (1760344) for use in intrinsically safe and non-incendive environments.
- Accurate and stable output with a 4–20 mA signal and typical error of ≤ ±0.5% FS.
- Robust design suited for harsh and dust-heavy industrial conditions.
HYDAC Electronic Pressure Transmitter HDA 4300 - CSA Intrinsically Safe - CSA Non Incendive
The pressure transmitter HDA 4300 in CSA version has been specially developed for the North American market for use in potentially explosive atmospheres and is based on the HDA 4000 series.
As with the industry model, the HDA 4300 in CSA version has a ceramic measurement cell with thick-film strain gauge for measuring relative pressure in the low pressure range.
Intended areas of application are, for example, in the oil and gas industry, on gas turbines or in locations with high levels of dust, e.g. in mills.
Special features:
- Accuracy ≤ ± 0.5 % FS typ
- Certificate: CSA 1760344
- Output signal 4 .. 20 mA
- Very small temperature error
- Excellent EMC characteristics
- Excellent durability
