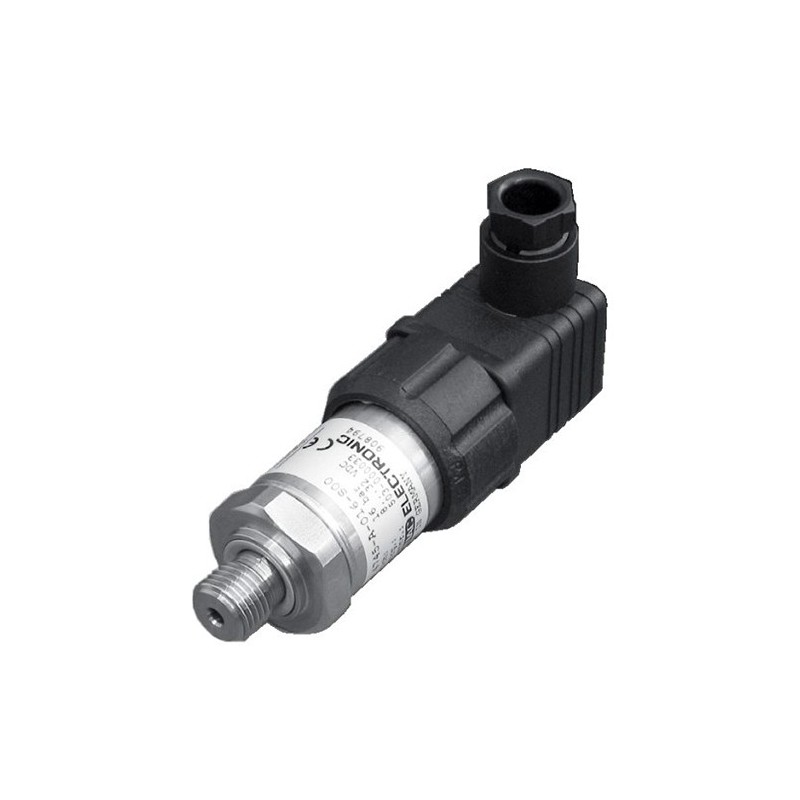

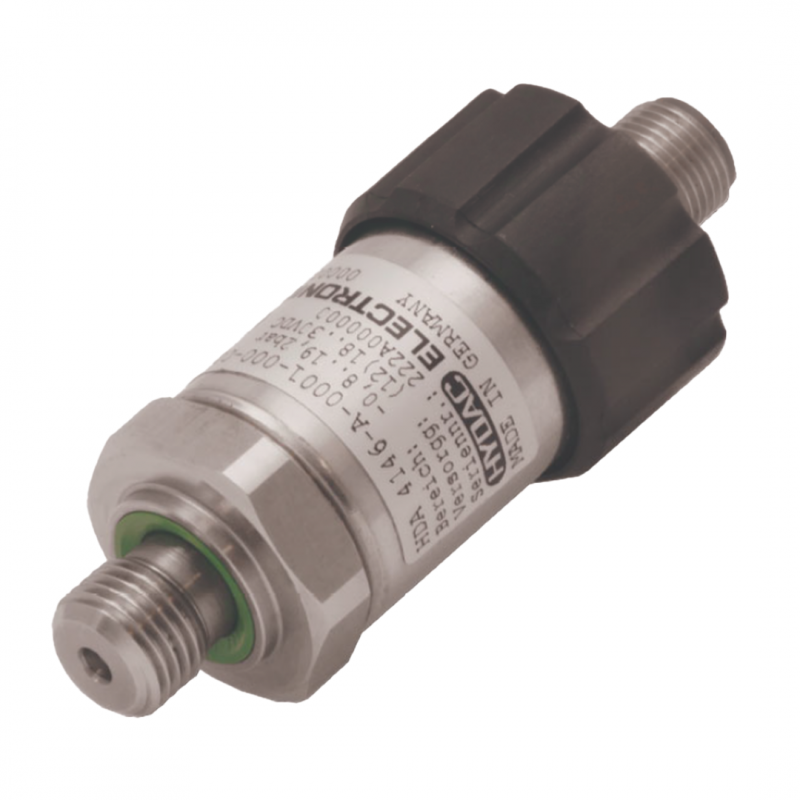

Hydac Electronic Pressure Transmitter HDA 4300 with Approvals for Shipping
The HYDAC HDA 4300 pressure transmitter with marine approvals is designed specifically for the shipbuilding industry. Based on the HDA 4000 series, it uses a durable ceramic sensing element to measure low-range relative pressure and delivers a reliable 4–20 mA analog output.
Key Features:
- Approved by major maritime authorities including ABS, DNV, Lloyd’s Register, and Bureau Veritas
- Robust construction with sealed electronics for harsh marine environment

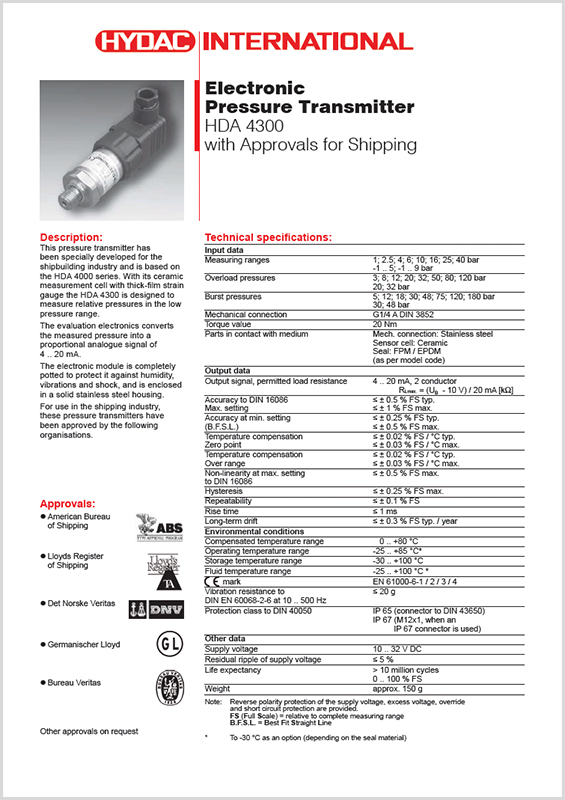

HYDAC Electronic Pressure Transmitter HDA 4300 with Approvals for Shipping
This pressure transmitter has been specially developed for the shipbuilding industry and is based on the HDA 4000 series. With its ceramic measurement cell with thick-film strain gauge the HDA 4300 is designed to measure relative pressures in the low pressure range.
The evaluation electronics converts the measured pressure into a proportional analogue signal of 4 .. 20 mA.
The electronic module is completely potted to protect it against humidity, vibrations and shock, and is enclosed in a solid stainless steel housing.For use in the shipping industry, these pressure transmitters have been approved by the following organisations.
Approvals:
- American Bureau of Shipping
- Lloyds Register of Shipping
- Det Norske Veritas
- Germanischer Lloyd
- Bureau Veritas
Other approvals on request
